• Model NO.：Jaguar S600
• Printing Accuracy：0.01mm
• PCB Size：250×1250mm
• PCB Thickness：0.2-6mm
• Stencil Positioning：Manual
• Weight：Approx.380kg
• Transport Package：Wooden Box
• Specification：CE
• Trademark：Jaguar
• Origin：China Shenzhen
• HS Code：8479899990
• Production Capacity：100PCS,Month

Basic Info.

Model NO. Jaguar S600 Printing Accuracy 0.01mm PCB Size 250×1250mm PCB Thickness 0.2-6mm Stencil Positioning Manual Weight Approx.380kg Transport Package Wooden Box Specification CE Trademark Jaguar Origin China Shenzhen HS Code 8479899990 Production Capacity 100PCS/Month

Product Description

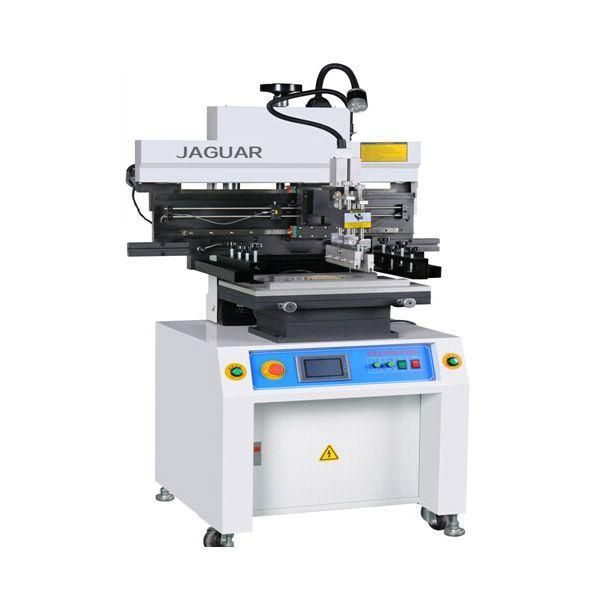

                          SOLDER PASTE PRINTER JAGUAR S600
Jaguar Semi-Auto Stencil Printer is special designed for medium or small size of PCB assembly line, which scraper‘ up and down is adjustable, more easy to control scraper's pressure, it's speed can match many kinds of pick and place machine, from low speed to high speed, and widely used in different industry, such as LED, Security, Power Supply and so on.


Specification:

Model	JAGUAR S600
Dimensions	1000×670×1550mm
Platform size	320×600mm
PCB size	250×550mm
Template size	550×835mm
Printing speed	0-8000mm/min
PCB thickness	0-100mm
PCB fine tuning range	Front/side±10mm
Platform height	850±20mm
Positioning mode	outside/Reference hole

Details:
>Using precision guide rail and the import motor to drive the blade seat conversion,printing, and high accuracy.
>Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
>Block can be adjusted before and after the blade, to choose the right printing position.
>Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
>School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
>Can be set to one-way and two-way, a variety of printing methods.
>With the automatic counting function to facilitate the production of output statistics.
>Adjustable blade angle, steel blade, rubber scrapers are suitable.
>Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
>Printing speed display can be adjusted.

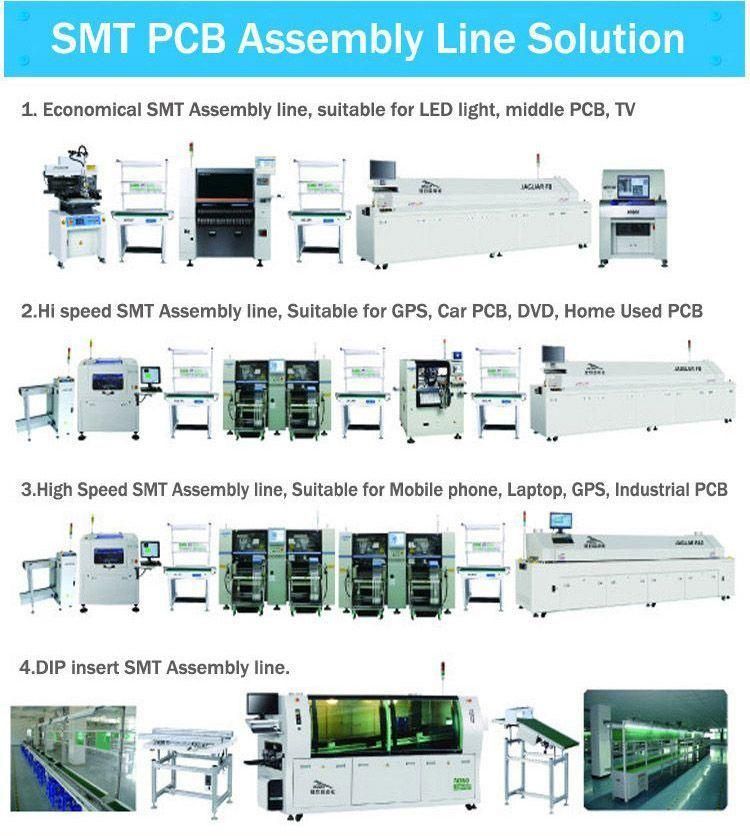

>Jaguar products: stencil printer,buffer conveyor, reflow oven, lead-free reflow solder oven, reflow soldering oven,wave solder or wave soldering machine, smt chip mounter,Smt Pick and Place Machine, PCB conveyor, smt machine/Smt Equipment and smt peripheral equipments.
