• Model NO.：FC-630
• Type：High-speed Stranding Machine
• Style：Large Shaft
• Feeding Bobbin：800-1250
• Color：Sky Blue or Apple Green
• Motive：Motor Drive
• Brake：5kgf Electromagnetic Brake
• Transport Package：Common
• Specification：ISO9001
• Trademark：FC
• Origin：China
• HS Code：8479811000
• Production Capacity：50sets,Month

Basic Info.

Model NO. FC-630 Type High-speed Stranding Machine Style Large Shaft Feeding Bobbin 800-1250 Color Sky Blue or Apple Green Motive Motor Drive Brake 5kgf Electromagnetic Brake Transport Package Common Specification ISO9001 Trademark FC Origin China HS Code 8479811000 Production Capacity 50sets/Month

Product Description

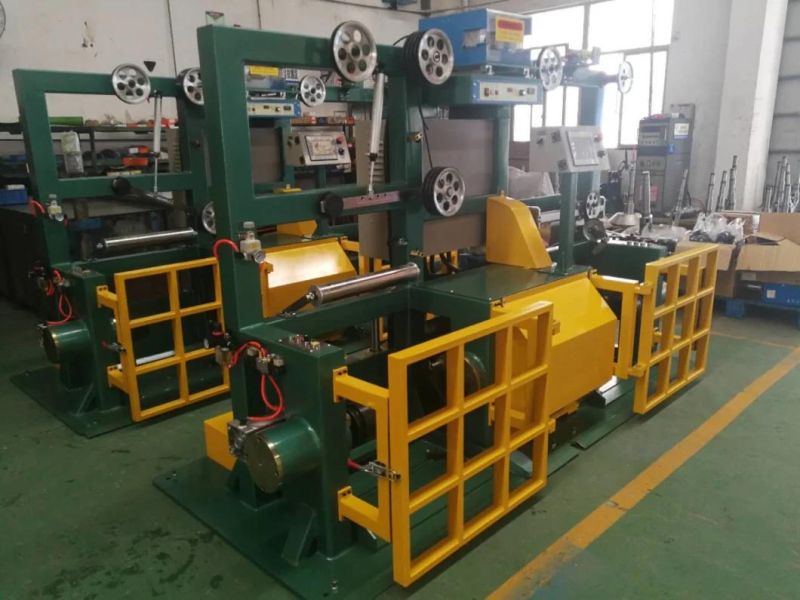

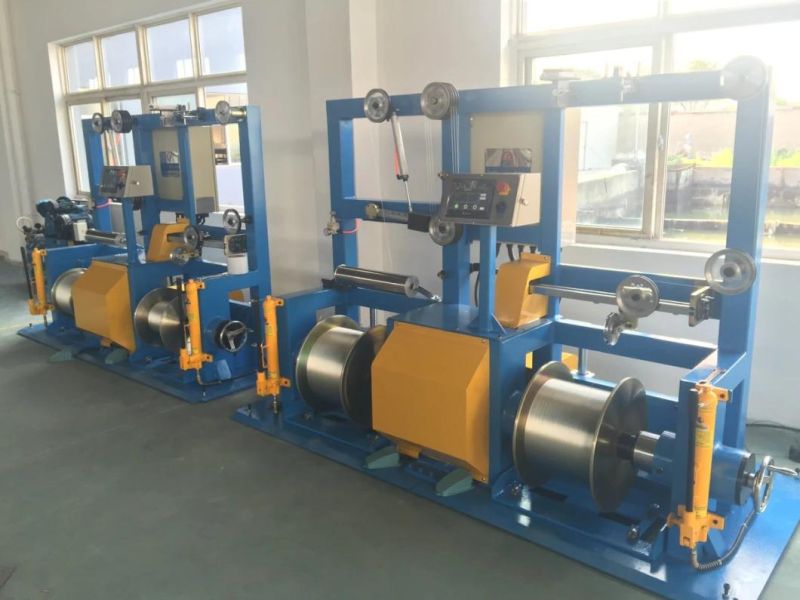

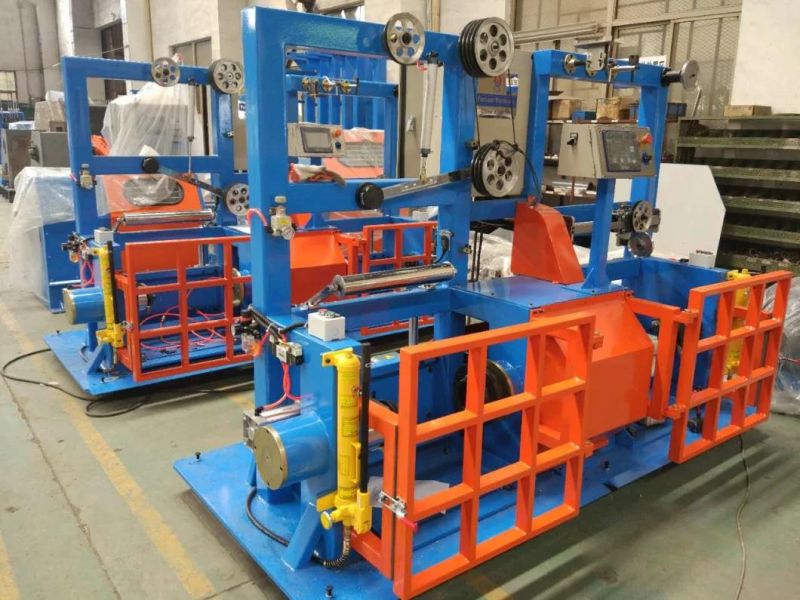

FC-630 rewinding -----respooler machine
A.Machine parameters
1.Machine fit forφ0.4~3.5mm soft copper wire(twisted wire),electrical wire re-spool. It is one whole machine(pay off and take up),take little space,save area.
2.Touch screen operation,and PLC control pay off and take up with stable speed.
3.Linear speed: 50-250m/min
4.Operate direction:right hand machine(face the machine,left pay off and right take up)
5.Machine color:RAL5015 sky blue
B.Detail setting of machine
1.FC-630 active pay off
  (1)Pay off bobbin:φ630bobbin(customer provide)
  (2)Tension control:swing type tension wire accumulator rack guidewheel(fixed four sets,movable three sets)upper and down(by displacement sensor)feedback signal to converter to control motor rotating speed,linkage with take up,keep the pay off tension stable and even;In swing fixed cylinder and counterweight parts,can adjust the pressure of the valve to change the pay off tension.
(3)Bobbin locking:shaftless type,manual lock or pneumatic locking(can choose by customer,and with anti-loose mechanism.
(4)Lifting type:manual hydraulic lifting
(5)Motive:1.5kW-6Pfrequency brake motor(SFC)
(6)Converter:1.5KW Innovance converter
(7)V-belt drive
2.FC-630take up machine
  (1)Take up bobbin size:φ630bobbin
  (2)Traverse type:GP20 rod traverse,winding pitch and displacement is adjustable.
(3)Bobbin locking:shaftless type,manual locking or pneumatic locking,and with anti-loose device.
(4)Lifting type:manual hydraulic lifting.
(5)Motive:1.5kW-6Pfrequency brake motor(SFC)
(6)Converter:1.5KW Innovance
(7)Simple electric meter counter device
(8)V-belt drive
