• Model NO.：BZW-882DK
• Cutting Length：0.1-100000mm
• Stripping Length：0.1-50mm
• Tool Materials：Imported Tungsten Steel and High Speed Steel
• Drive：4 Wheels Driven
• Feeding Speed：0.8m,S
• Capacity：1500-3000 PCS,H
• Voltage：220V 50Hz
• Motor：0.5kw
• Weight：33kg
• Transport Package：Wooden Case
• Specification：420× 297× 345mm
• Trademark：BOZHIWANG
• Origin：Jiangsu Changzhou
• HS Code：8479899990
• Production Capacity：50000PCS,Yera

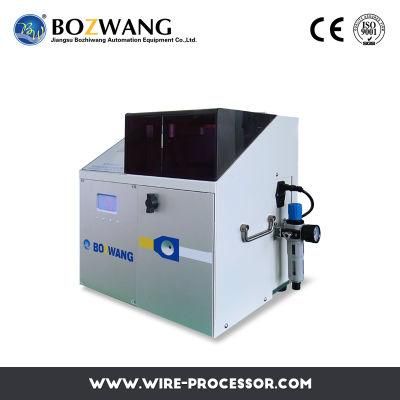

BZW-882DK Wire cutting and stripping machine

The device automatically cuts and strips a large size wire after setting the various parameters offered in the computer integrated. It is easy to choose the length of the wire, the length of the stripping, the shape of the wire and the speed of processing it can be adjusted from 0 to 9 giving an extremely fast stripping velocity.

 1.It is designed for processing the large size wire by automatic wire cutting and stripping;

2.Computerized control, button operation, stable working performance, easy operation;

3.High speed wire stripping, wire head, wire end and total length can be set  arbitrary in the wire cutting range;

4.The speed of  wire feeding, cutting and stripping could be separately set to reach the best effect of stripping;

5.It has the function setting total quantity, bundle quantity, time postpone, middle stripping and etc;

6.Motor drive using subdivision method, with high precision and long service life;

7.100 kinds of different wire data can be stored  in the system.

 TECHNICAL PARAMETER

Wire range	1-25 mm2 (AWG3#-AWG18#)  (other size can be special ordered)
Cutting length	0.1-100000mm
Cutting precision	±(0.2%*L+1)mm
Stripping length	0.1-50mm(other size can be special ordered)
Tool materials	Imported tungsten steel and high speed steel
Drive	4 wheels driven
Feeding speed	0.8m/s
Capacity	1500-3000   pcs/h
Voltage	220V  50HZ
Motor	0.5KW
Weight	33kg
Dimension	420×297×345mm

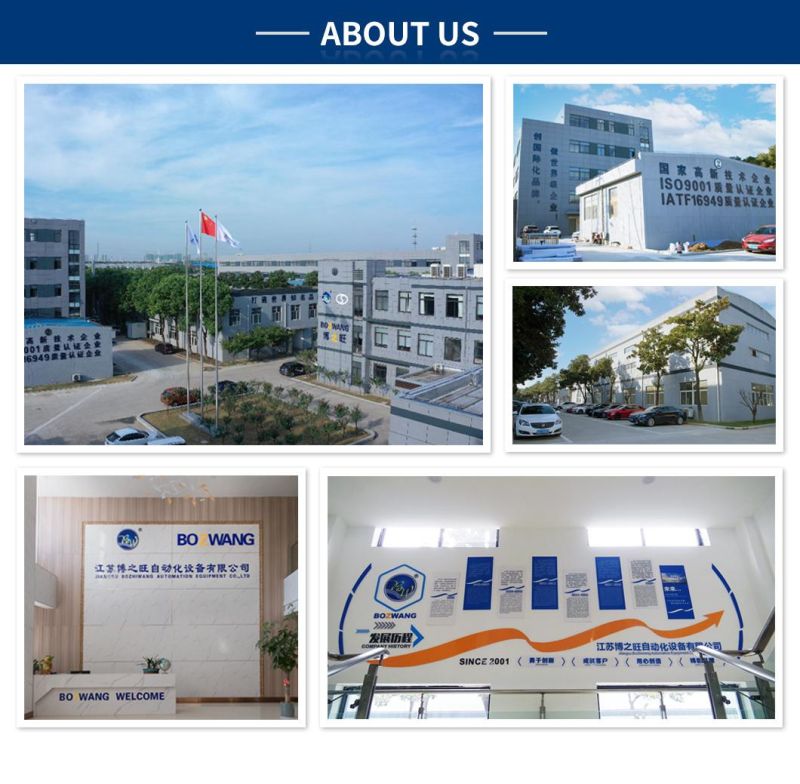

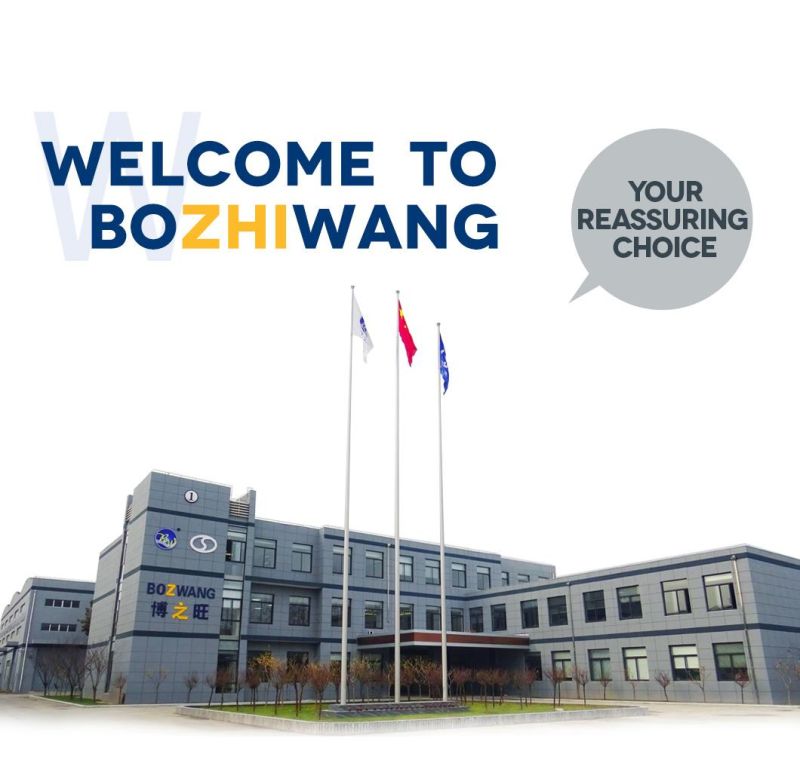

      Jiangsu Bozhiwang Automation Equipment Co., Ltd. is a large-scale intelligent wire processing equipment manufacturer in China,located in the center of the beautiful and rich Yangtze River Delta---China's famous industrial equipment manufacturing base Changzhou City, Jiangsu Province.

      The company covers an area of 40,000 square meters and a building area of 45,000 square meters with more than 400 employees,including more than 300 outstanding technicians. The company has successively passed ISO9001, QS-9000, CE certification, TUV certification, and developed a number of products with independent intellectual property rights, and obtained more than 60 invention patents, more than 100 utility model patents and 100 new appearance patents, the technology and comprehensive strength of product research and development ranks the top among the nationwide.

      In the production process, the company strictly follows the ISO:9001 quality standard for daily production and management. It mainly focuses on the automotive, photovoltaic and new energy industries and has developed and produced a series of automatic processing equipment with
high quality, stable performance and high efficiency.

      Mainly include automotive wiring harness/HSD/FAKRA radio frequency wire harness/new energy wiring harness and other related semi-automatic and fully automatic intelligent production lines, automatic double ends terminal machine with seal inserting, automatic ribbon cable terminal machine, automatic single-double-end terminal crimping machine, automatic wire stripping machine,JB box automation equipment, new energy automation equipment, and a complete set of equipment series for various semi-automatic wire harness processing. With the increasing annual output of the company, it has reached an annual output of more than 20,000 sets of intelligent assembly lines and various wire harness processing equipment, and the production equipment has the characteristics of high precision, high degree of automation, and strong supporting performance of the whole machine.
