• Model NO.：reflow oven machine F8
• Number of Heating Zones：up 8, Bottom 8
• Number of Cooling Zones：2(up 2, Down 2)
• Length of Heating Zones：3100mm
• Heating Mode：Hot Air
• Cooling Mode：Forced Air Cooling
• Exhaust Volume：10m³,Min * 2 Exhausts
• Max. Width of PCB：450mm
• Mesh Belt Width：500mm
• Transmission Direction：L-R(Option: R-L)
• Transmission Type：Mesh and Chain
• Transport Package：Vacuum Packing and Wooden Packing
• Specification：5000*1320*1490mm
• Trademark：jaguar
• Origin：Shenzhen
• HS Code：851410900
• Production Capacity：100pieces,Month

Basic Info.

Model NO. reflow oven machine F8 Number of Heating Zones up 8/ Bottom 8 Number of Cooling Zones 2(up 2, Down 2) Length of Heating Zones 3100mm Heating Mode Hot Air Cooling Mode Forced Air Cooling Exhaust Volume 10m³/Min * 2 Exhausts Max. Width of PCB 450mm Mesh Belt Width 500mm Transmission Direction L-R(Option: R-L) Transmission Type Mesh and Chain Transport Package Vacuum Packing and Wooden Packing Specification 5000*1320*1490mm Trademark jaguar Origin Shenzhen HS Code 851410900 Production Capacity 100pieces/Month

Product Description

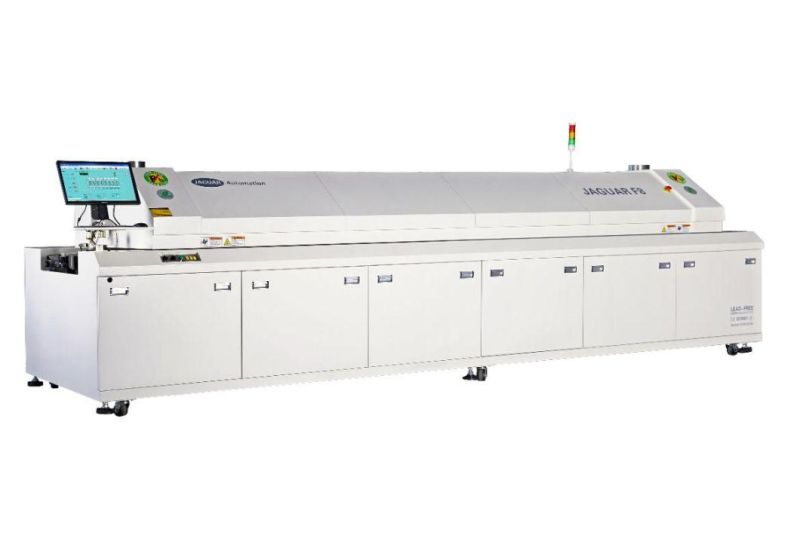

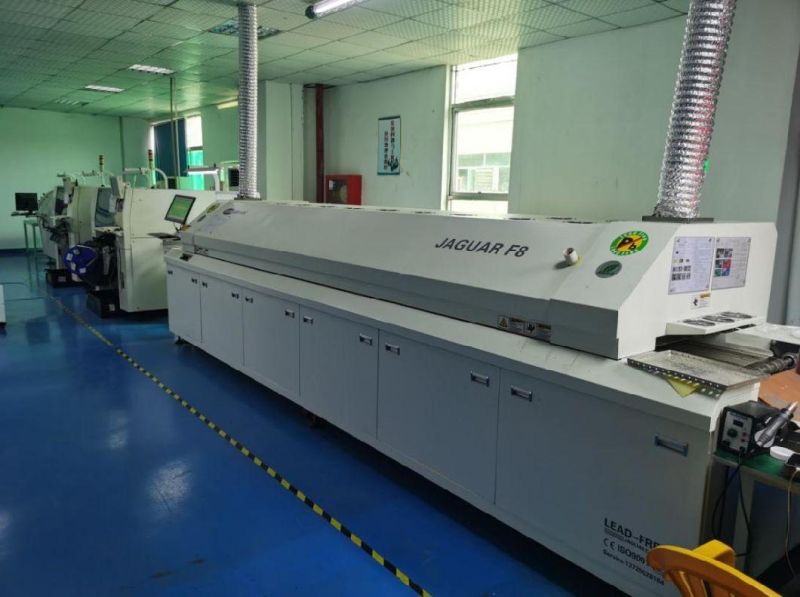

JAGUAR 8 Zones Lead Free Hot Air Reflow Oven F8



Introduction:
 1. Heating zone1.1: New energy saving furnace design, 4 sides return air, the best temperature uniformity
1.2: Plug-in type imported high temperature motor, quick replacement in 5 minutes
1.3: 8 heating zones, 16 heating elements( up 8/ bottom 8 ) , independent temperature control and switch
1.4: The latest design of nozzle plate, the best insulation performance
 2. Control system 2.1: Siemens PLC, table machine performance
2.2: Professional IPC, Windows 7 operation interface, English/Chinese language free switch
 3. Convyeor system3.1: Conveyor speed: The speed of the stepless frequency converter is 0.35m-1.5m /Min, and the accuracy is ±2mm/ Min

4.Cooling zone
4.1: Axial fan forced air cooling ( Up and bottom dual cooling)

5.Protection system
5.1: Temperature out of tolerance alarm, transmission speed out of tolerance alarm
5.2: IPC+UPS
5.3: Super positioning flexible and convenient screw width adjusting system
5.4: IPC delay shutdown function

6.Machine parameters


Machine dimension	5300 x 1350x 1490mm
Color	Ivory
Net weight	Approx. 2250kgs
Exhaust volume	10m3/min X 2pipe
Power supply	5 wire, 3 phase, 380V 50/60HZ
Startup power consumption	48KW
Steady power consumption	8-12KW
Warming time	About 30mins
Temperature range	Room temperature-300ºC
Mesh width	500mm
Max PCB width	420mm
Component height	Up 25mm/Bottom 25mm
Conveyor direction	Left-right ( option: Right-left)
Conveyor speed	300-2000mm/min
Data storage	Process data and status storage(80GB)
Abnormal alarm	Over temp or low temp alarm, sound and light 2 modes

7.Machine configuration


Heating zone	Up 8, Bottom 8
Cooling zone	Up 2, Bottom 2
Control mode	WINDOWS 7+IPC+PLC
Temperature control mode	PID closed loop+SSR driver
Thermal couple wire	3pcs
Conveyor system	Mesh+Chain
Conveyor control mode	3 inverters+Panasonic motor
Hood lift	Electric hood lift
UPS	Standard, power off standby to protect PCB production completed
