• Model NO.：WL-ZDP
• Certification：ISO, CE
• Warranty：12 Months
• Automatic Grade：Automatic
• Name：Semi-Automatic Tubular Terminal Crimping Machine W
• Model：Wl-Zdp
• Crimping Capacity：20kn, Can Be Customized
• Stroke of Slider：35mm (40mm)
• Crimping Frequency：120 Times,Min
• Closing Height：26mm;
• Power Supply：220,110V
• Working Pressure：0.3-0.8MPa
• Weight：200kg
• Transport Package：Wooden Carton
• Specification：1245*625*1615MM
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：1000-2000PCS,Month
• Package size per unit product：76.00cm * 60.00cm * 146.00cm
• Gross weight per unit product：172.000kg

Basic Info.

Model NO. WL-ZDP Certification ISO, CE Warranty 12 Months Automatic Grade Automatic Name Semi-Automatic Tubular Terminal Crimping Machine W Model Wl-Zdp Crimping Capacity 20kn, Can Be Customized Stroke of Slider 35mm (40mm) Crimping Frequency 120 Times/Min Closing Height 26mm; Power Supply 220/110V Working Pressure 0.3-0.8MPa Weight 200kg Transport Package Wooden Carton Specification 1245*625*1615MM Trademark crown Origin China HS Code 8479819000 Production Capacity 1000-2000PCS/Month

Packaging & Delivery

Package size per unit product 76.00cm * 60.00cm * 146.00cm Gross weight per unit product 172.000kg

Product Description

Fork Insulated Electrical Wire Crimp Terminals Spade Terminals Single Terminal Crimping Machine
Specifications:

This is a semi-automatic cable connector crimping machine. It is suitable for crimping loose piece terminals with vibration plate feeding. The operating speed is comparable to that of the chain terminals, saving labor and cost, and having more cost-effective advantages.Function :wire stripping and crimpingSuitable Terminal :Tube-shaped loose terminals ,bulk tubular terminal ,ferrule terminal ,pre- insulated terminal

Model	WL-ZDP
Dimensions	Conventional 500*860*1360 (mm); Special slide rail type: 500*1050*1360 (mm)
Power supply	AC 220V/50Hz
Weight	about 140KG-170KG
Power consumption	Motor: 250W;  LED light: 220V 1W; Vibration plate: 120W
Crimping capacity	20Kn
Stroke of slider	35mm (40mm)
Crimping frequency	120 times/min
Closing height	26mm; Closing height adjustment 10mm

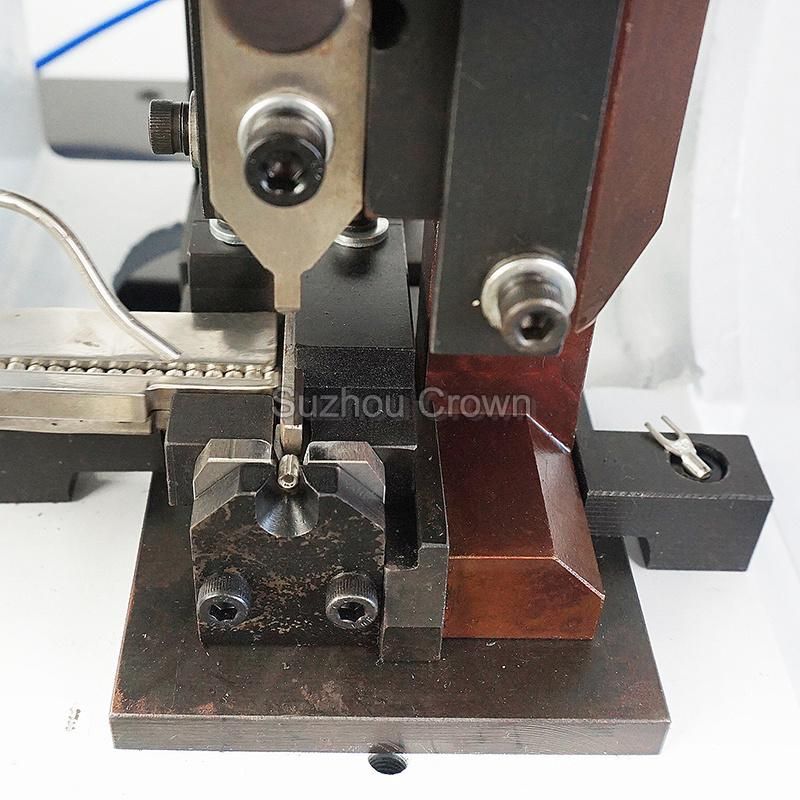

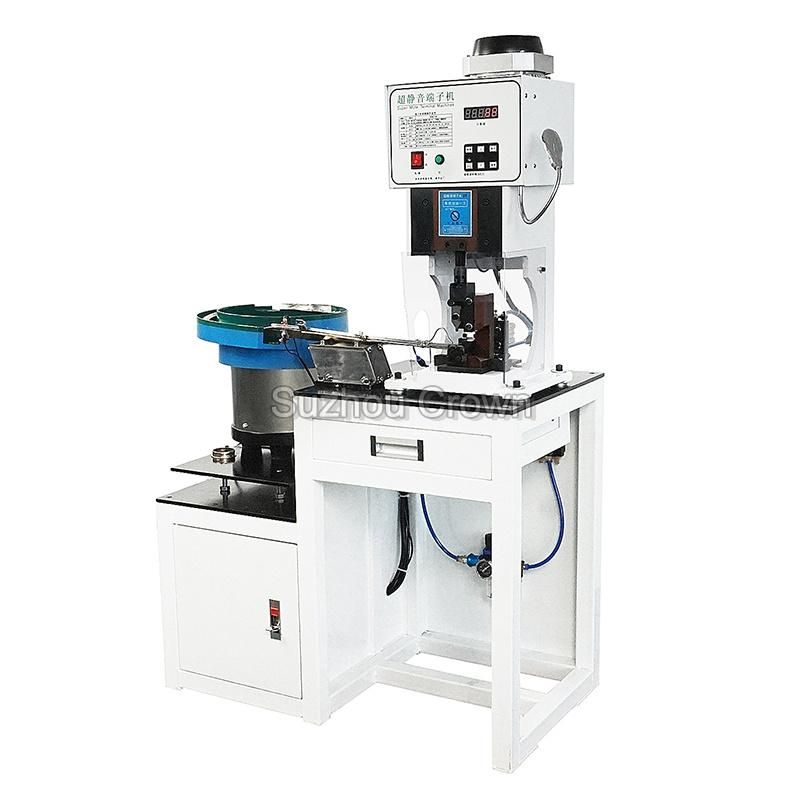

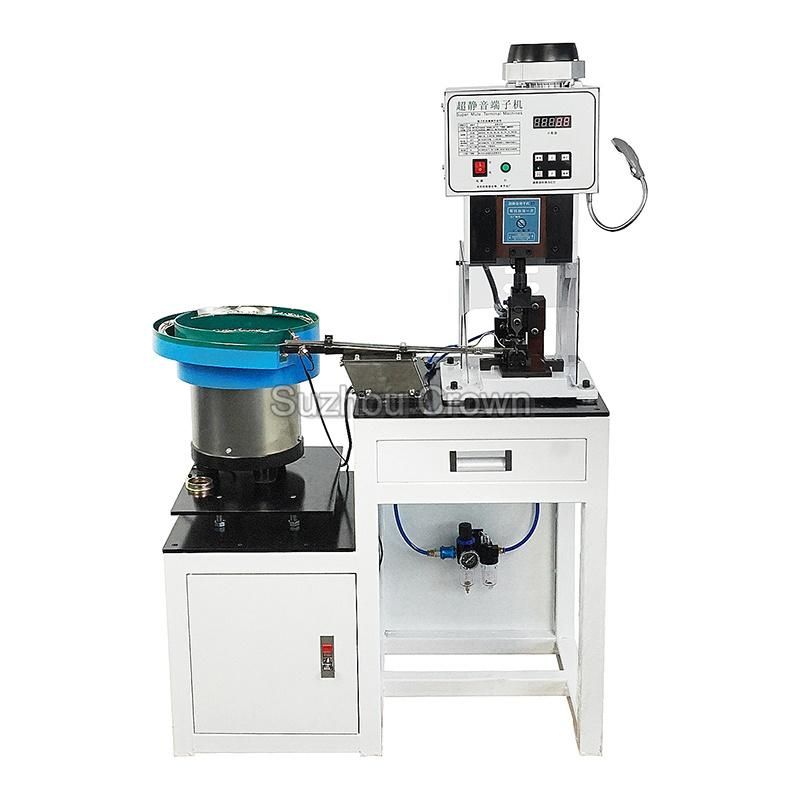

Product Show:


Feature :
1.Suitable for crimping a variety of tube-shaped loose terminals.
2.Wire stripping and crimping are completed at one time.
3.The flared shape makes wire threading convenient

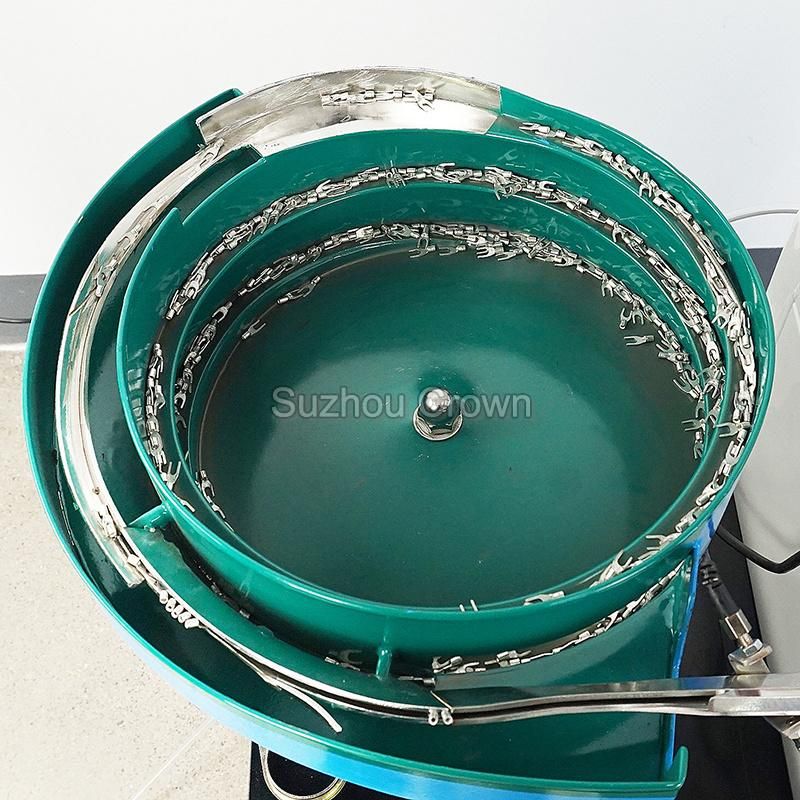

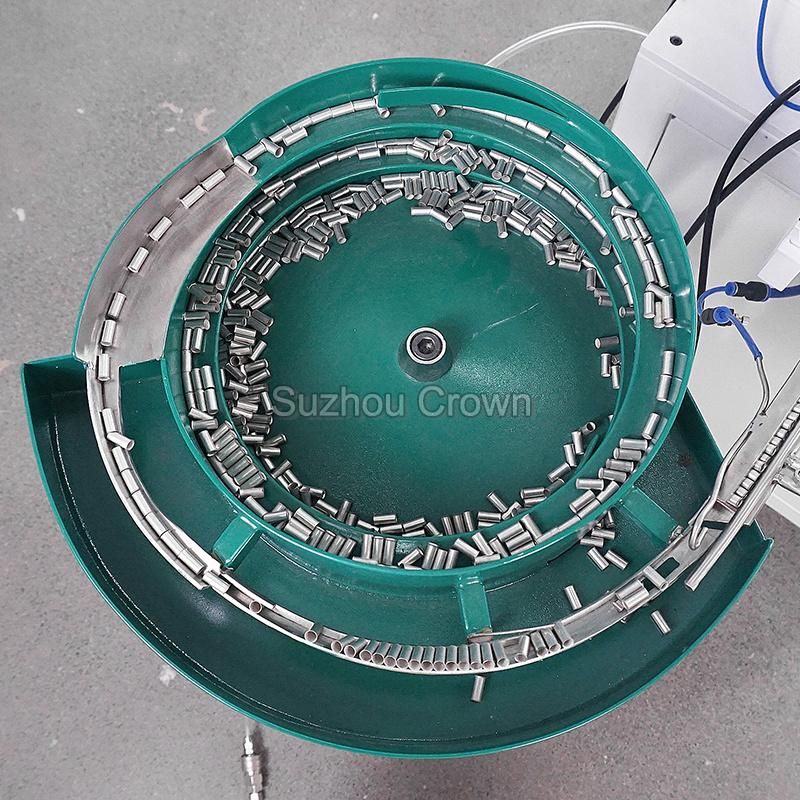

4.Adopting vibration plate feeding method, convenient and quick to replace terminals.
5.Processing wire size: 0.5-4mm2

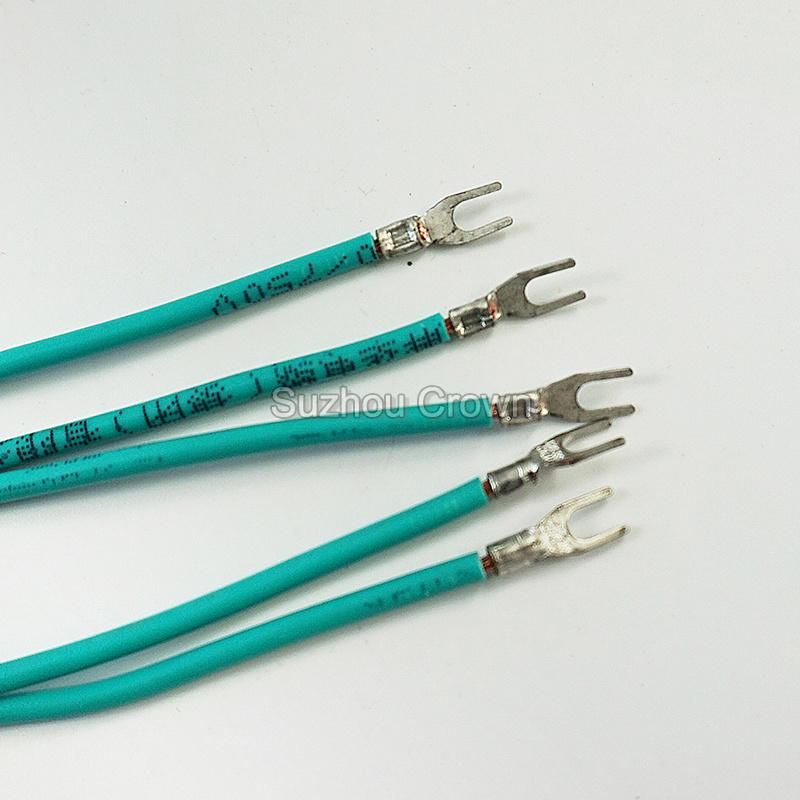

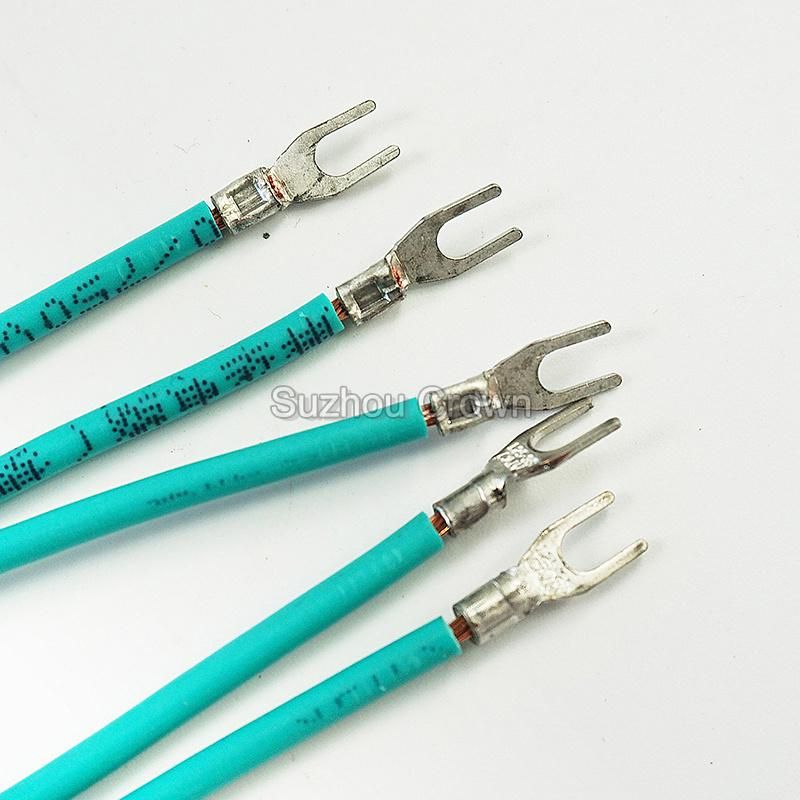

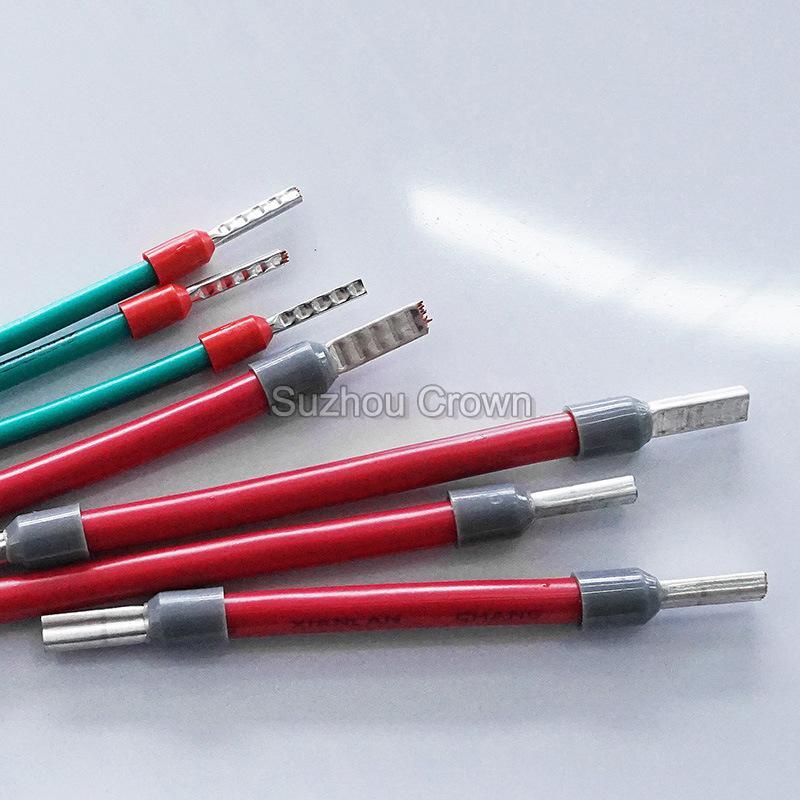

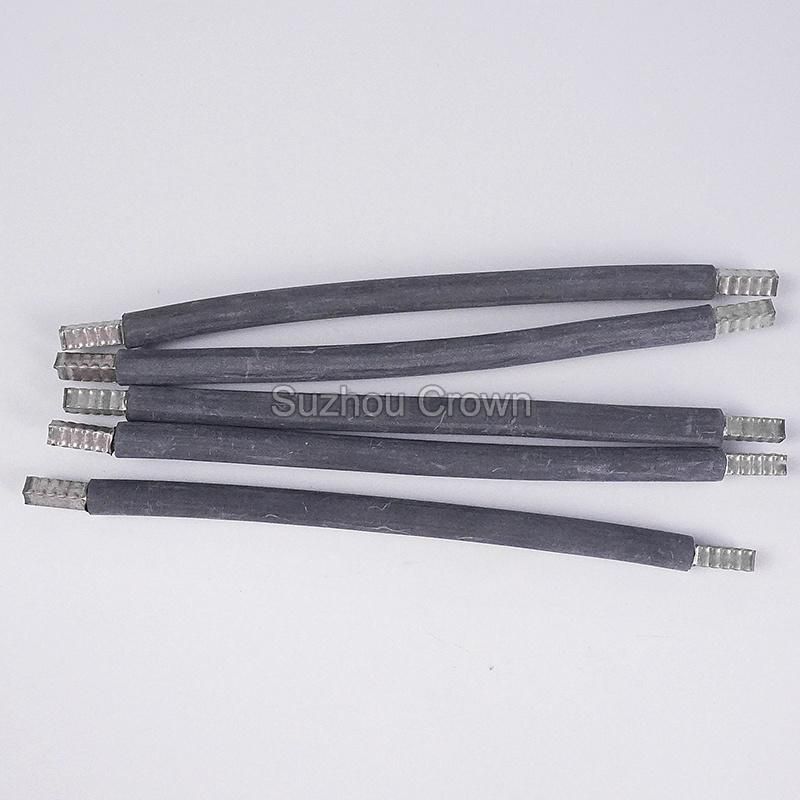

Application Terminal:




You may also like

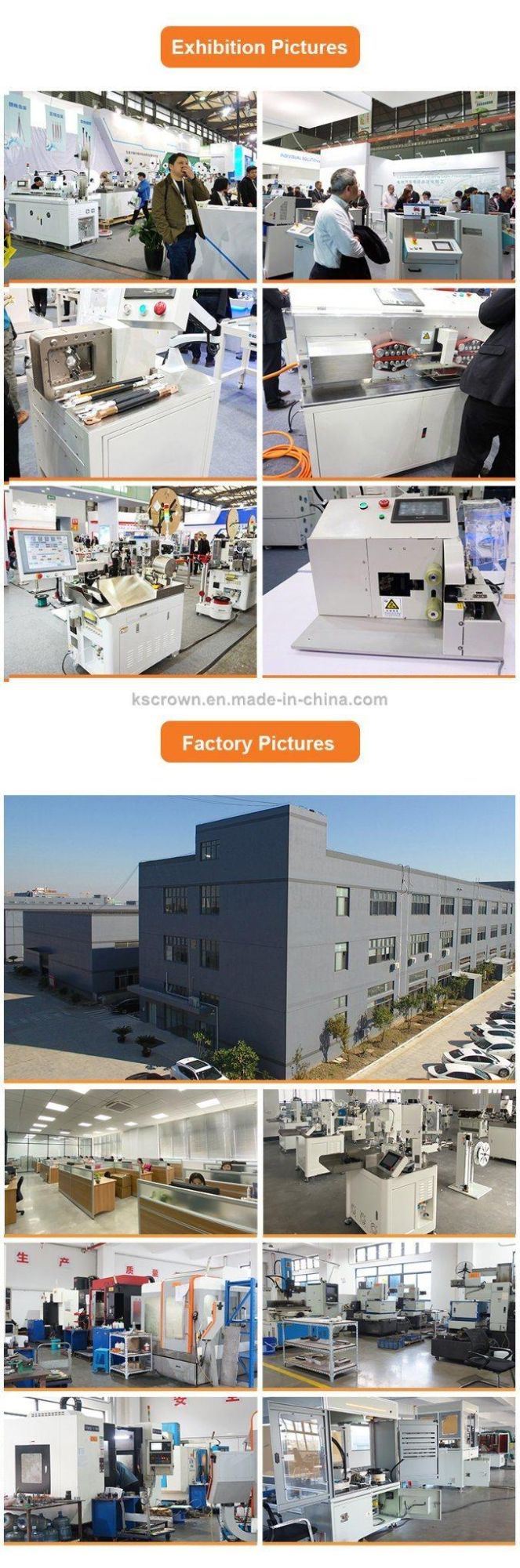

Company Information Our service
