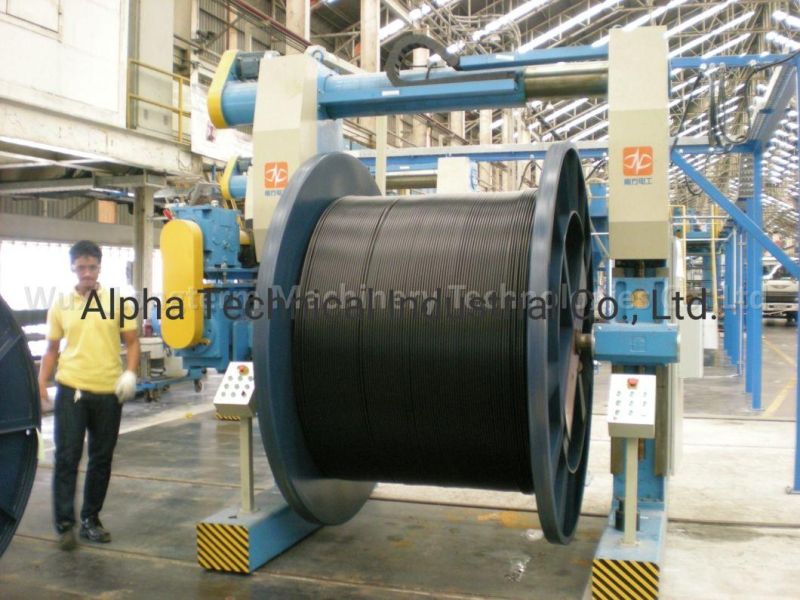

Steel Wire Rope Winding Machine, Take up Reel Cable Machine Pay off Unit^

Wuxi Longterm Machinery Technologies Co., Ltd.
  • Automatic Grade:Automatic
  • Driven Type:Pneumatic
  • Warranty:12 Months
  • Product Name:Steel Wire Rope Winding Machine
  • Parts Brand:Siemens
  • Application:Winding Various Signal Cable, Optical Cable

Base Info

  • Model NO.:HLT
  • Power Supply:3 Phase 415V, 50 Hz with Neutral Wire
  • Apply Bobbin Size:800-1700mm
  • Bobbin Width:500-1200mm
  • Line Speed:26.52rpm (50Hz) 53rpm (100Hz)
  • Take up Model:15kw 1500rpm Siemens AC Servo Motor
  • Lifting Mode:Adopt Electro-Hydraulic Lifting Mode
  • Bobbin Weight:4t
  • Applied Cable Diameter Range:10~60mm
  • Take-up Torque:Max ~4600 N.M
  • Adaptor Hole Diameter:75 150mm
  • Transport Package:Standard Seaworthy Package
  • Specification:ISO
  • Trademark:Alpha
  • Origin:Jiangsu Wuxi, China
  • HS Code:8477209000
  • Production Capacity:500 Set Per Year

Description

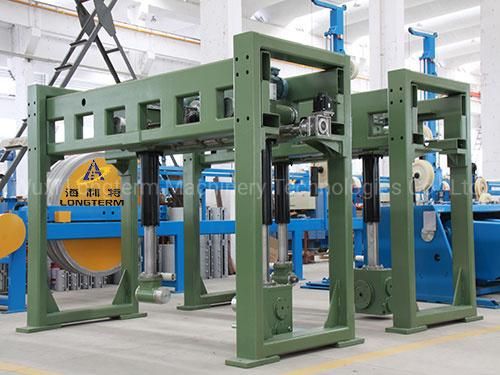

Model630/1250800/16001000/20001250/2500Applicable wire-coil specificationPN630-PN1250PN800-PN1600PN1000-PN2000PN1250-PN2500Applicable cable outer diameter (mm)≤25≤40≤50≤60Applicable wire-coil diameter (mm)630-1250800-16001000-20001250-2500Applicable wire-coil width (mm)475-950600-1180750-1500950-1900Take-up speed (mm/min)≤100≤100≤80≤60Winding precision (%)1-21-21-21-2Loading capacity (T)234.56 Gantry Take-up and Pay-off Steel Wire Rope Winding Machine, Take up Reel Cable Machine Pay off Unit^

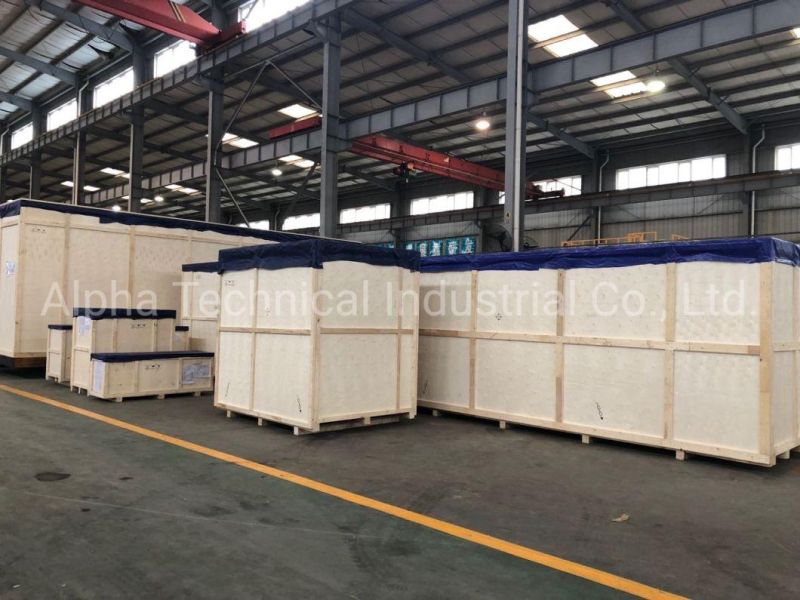

Machine package
Steel Wire Rope Winding Machine, Take up Reel Cable Machine Pay off Unit^Main part brand 1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens

 Our service
 Pre-sales service
- Inquiry and consulting support
- Customized design support
- View our factory


After-sales service
- Training how to install and how to use the machine
- Engineers available to service machinery overseas


Project show
Philippine
Steel Wire Rope Winding Machine, Take up Reel Cable Machine Pay off Unit^

Malaysia
Steel Wire Rope Winding Machine, Take up Reel Cable Machine Pay off Unit^

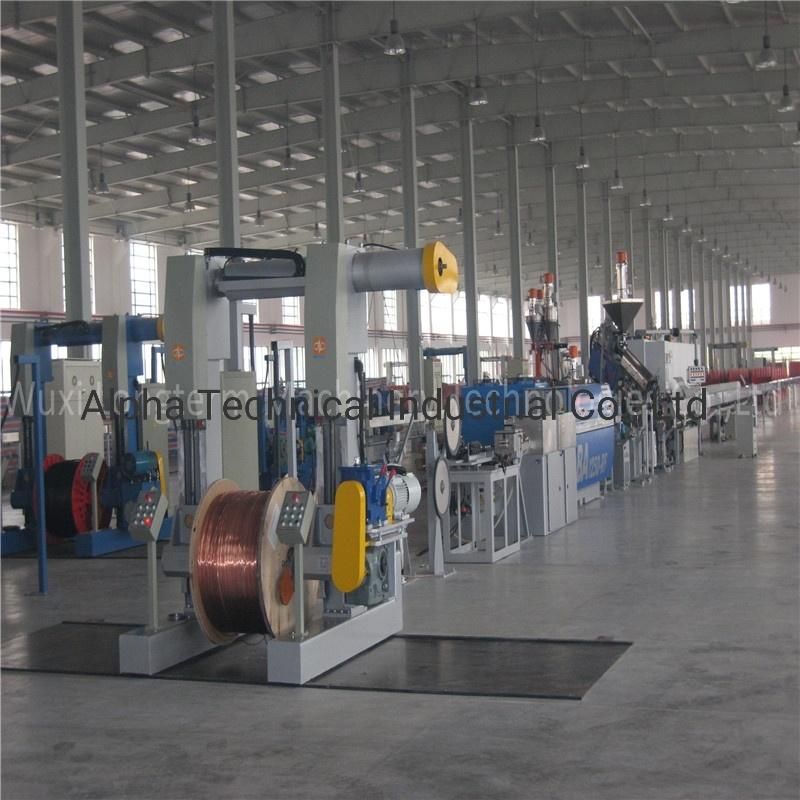

 Factory show
 Alpha Technical Industrial Co., Ltd is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Caterpillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, etc...Steel Wire Rope Winding Machine, Take up Reel Cable Machine Pay off Unit^Our team
Steel Wire Rope Winding Machine, Take up Reel Cable Machine Pay off Unit^

  Relevant machinery

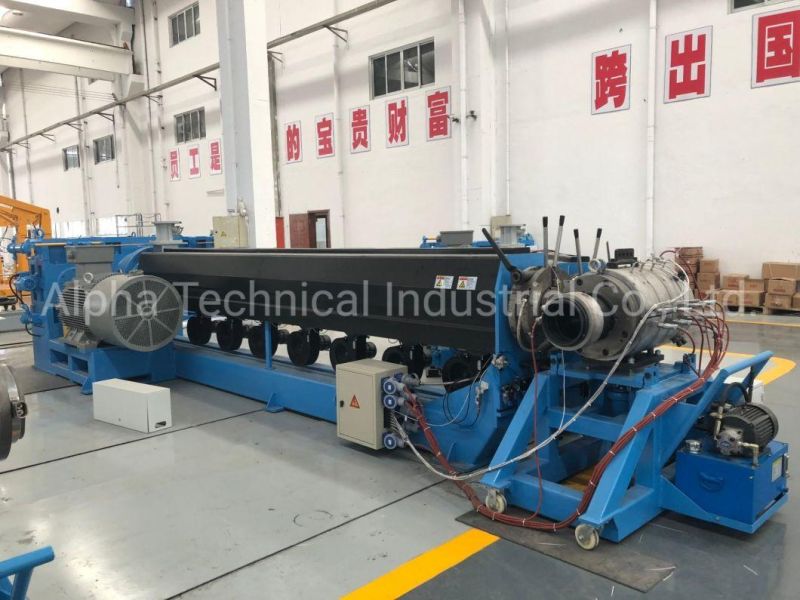

- Cable extrusion machine
A.Description
The unit comfortable soft PVC, such as poly(PVC by hot press method to be extruded insulation wire core)
B.Technical parameter
Type & SizeScrew Dia. (mm)L/D ratioScrew speed (rpm)Main motor (kw)Barrel heating power (kw)Temp. contr. zones (body/cross head)Max. output capacity (PVC) (kg/h)
SJ30X252025:15-150113.63/220
SJ45X254525:110-1201593/250
SJ65X256525:110-10030164/4120
SJ90X259025:110-10090304/4280
SJ120X2512025:17-68132546/4580
SJ150X2515025:16-60185886/4880
SJ200X2520025:14-402501407/41100
Steel Wire Rope Winding Machine, Take up Reel Cable Machine Pay off Unit^

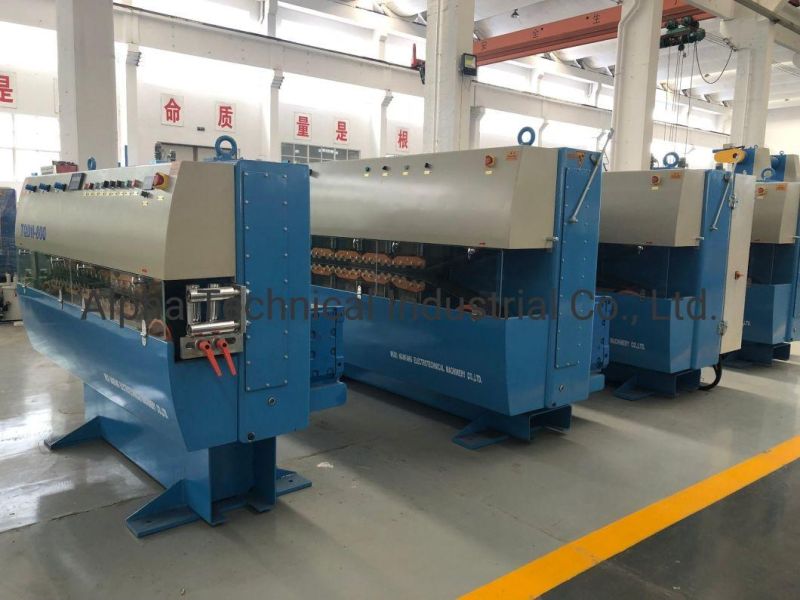

-Cable puller / caterpillar
Mainly used for various cable production lines for single machine or front and rear double traction.
Machine details
Steel Wire Rope Winding Machine, Take up Reel Cable Machine Pay off Unit^

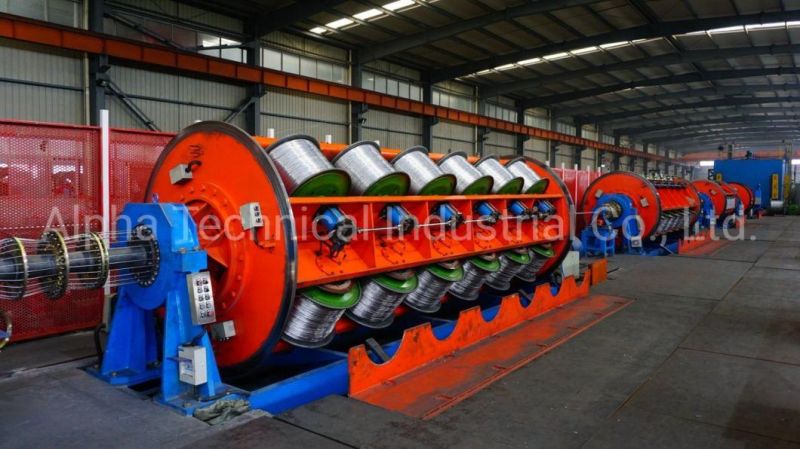

- Cable strander
