Desktop 4-Axis Two-Component Fluid Dispensing Robot with Enclosure and Monitor
Topbest Technology Limited- Precision：High Precision
- Condition：New
- Certification：ISO, CE, TUV
- Warranty：12 Months
- Automatic Grade：Automatic
- Installation：Vertical
Base Info
- Model NO.：Topbest-TC-6331CM
- Driven Type：Electric + Pneumatic
- Max. Product Size：250*280mm
- Driver Mode：Stepping Motor + Synchronous Belt
- Control Mode：Microcontroller + Teach Pendant
- Dispensing Accuracy：+,-0.02mm
- Memory：1000 Files
- Max. Load：15kg
- Camera Pixel：300K Pixel Microcamera
- Power Supply：AC 220V , 50Hz (AC 110V , 60Hz)
- Weight：148kg
- Working Humidity：20-95% Rh
- Working Temperature：0-40
- Transport Package：Wooden Box
- Specification：900*630*1295mm (with Alarm light)
- Trademark：Topbest
- Origin：China
- HS Code：8486402900
- Production Capacity：1000 Pieces,Year
Description
Work environment0~40ºC,Humidity 20%~95%
Features
1. Desktop type can be placed on the production line.
2. High-rigidity aluminum alloy multi-axis design ensures reliability and accuracy.
3. Glue automatic feeding, glue thickness, glue speed, dispensing time, stop time can be set parameters, the glue stability is high.
4. Flexibility: Standard universal fixtures are suitable for a wide range of production requirements.
5. More user-friendly touch screen or teaching pendant operation, easy to operate. External technical parameters and manual test functions can be directly adjusted by the technician.
6. Has a variety of functions, such as drawing points, lines, polygons, arcs, circles, irregular curves, continuous tween and three-axis movement.
7. The dispensing machine can work without a teach pendant connection.

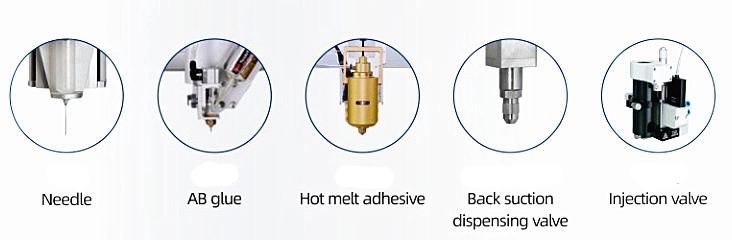

8. Various types of distribution valves are available, such as screw distribution valves, metering valves, and injection valves to meet different production requirements.
Advantage
Application1. Various types of dispensing valves,e.g. screw dispensing valve,metering valve and injection valve etc., are provided in order to meet the requirements of different processes.
2. The automatic dispensing robot is widely used in various industries, such as: (1) Electrical Products: Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers,headphone, audio, LED, optical lens, SMD transformers, relays.
(2) Communication Products: Keypad, mobile phone casing bonding, radio,telephone, Computers, MP4 , electronic toys, chassis bonding, switches, connectors,plug cable.
Video https://topbest.en.made-in-china.com
FAQ
1.Q: Are you manufacturer or trading company?
We are manufacturer, we build the machine by our team. We have R&D team that can customize the machine based on customer requirement.
2.Q: Can you provide the quotation for your glue dispensing machine?
Thanks for your inquiry, before we can provide quotation, please share your glue data sheet especially viscosity of the glue use, glue dispensing volume ,glue packing and your product details so that we can give suitable solution. Highly appreciate if you can share the manual glue dispensing video.
3.Q: Does our dispensing unit can be integrated with your platform?
It is workable, previously we have integrated dispensing valve with Vermes, Musashi, Preeflow and Nordson. Otherwise, please confirm signal type needed to be provided by us.
4.Q: How to control the amount of glue?
The amount of glue is controlled depends on valve used. Air pressure controller valve is less accurate. We can also control valve opening by using voltage or current signal to control the glue amount. Also we can change real time dispensing speed by changing PWM signal to control the excessive glue at corner side.
5.Q: What are the consumable parts of your machine?
Example for syringe system, we will provide 30 dispensing needle and 5 glue syringe for each machine. Others system will be negotiable with customer.
6.Q: How much is the transportation freight?
The freight depends on the quantity, weight, size and the destination port.
7.Q: How about the working life time of machine?
Normally, our machine can be used for over 5 years. Except for consumable parts, the other parts can be replaced for free of charge within one year.
8.Q: How can I trust your company and ensure to get the goods when i placed order from you?
We established since 2000 with 4000 square meter factory, supported by 100 employee. We also have 500 customer all around the globe.
9.Q: How about the package? Is it safe during the delivery?
All machine is packed by standard strong plywood with foam inside.
10.Q: What's your lead time?
15-20 working days depending to your quantity.
11.Q: Are the machine easy to use? If I have no experience, can I operate it well?
Did you provide the user manual and operating videos to support us?
Yes, our machine is designed easy to use. Normally, it will take you 2-3 hours to learn on how to operate, if you have experience on the similar machine, it will much faster to learn. We will provide the English user manual, and remote video support. If you still have problems, we will arrange on site support.
12.Q: If we come to your factory, will you provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
13.Q: How to avoid glue dripping or glue tail?
We retract back the glue after dispensed. We also reverse the path first before retract the glue dispensing needle.
14.Q: How to estimate the fluid viscosity?
For example, water is 1cp, honey is 50,000cp and wasabi 200,000cp
Features
1. Desktop type can be placed on the production line.
2. High-rigidity aluminum alloy multi-axis design ensures reliability and accuracy.
3. Glue automatic feeding, glue thickness, glue speed, dispensing time, stop time can be set parameters, the glue stability is high.
4. Flexibility: Standard universal fixtures are suitable for a wide range of production requirements.
5. More user-friendly touch screen or teaching pendant operation, easy to operate. External technical parameters and manual test functions can be directly adjusted by the technician.
6. Has a variety of functions, such as drawing points, lines, polygons, arcs, circles, irregular curves, continuous tween and three-axis movement.
7. The dispensing machine can work without a teach pendant connection.
8. Various types of distribution valves are available, such as screw distribution valves, metering valves, and injection valves to meet different production requirements.
Advantage
- Real time dispensing process monitoring
- Applicable for hot melt, AB glue, epoxy etc.
- Rich experience on dispensing fastening application
Application1. Various types of dispensing valves,e.g. screw dispensing valve,metering valve and injection valve etc., are provided in order to meet the requirements of different processes.
2. The automatic dispensing robot is widely used in various industries, such as: (1) Electrical Products: Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers,headphone, audio, LED, optical lens, SMD transformers, relays.
(2) Communication Products: Keypad, mobile phone casing bonding, radio,telephone, Computers, MP4 , electronic toys, chassis bonding, switches, connectors,plug cable.
Video https://topbest.en.made-in-china.com
FAQ
1.Q: Are you manufacturer or trading company?
We are manufacturer, we build the machine by our team. We have R&D team that can customize the machine based on customer requirement.
2.Q: Can you provide the quotation for your glue dispensing machine?
Thanks for your inquiry, before we can provide quotation, please share your glue data sheet especially viscosity of the glue use, glue dispensing volume ,glue packing and your product details so that we can give suitable solution. Highly appreciate if you can share the manual glue dispensing video.
3.Q: Does our dispensing unit can be integrated with your platform?
It is workable, previously we have integrated dispensing valve with Vermes, Musashi, Preeflow and Nordson. Otherwise, please confirm signal type needed to be provided by us.
4.Q: How to control the amount of glue?
The amount of glue is controlled depends on valve used. Air pressure controller valve is less accurate. We can also control valve opening by using voltage or current signal to control the glue amount. Also we can change real time dispensing speed by changing PWM signal to control the excessive glue at corner side.
5.Q: What are the consumable parts of your machine?
Example for syringe system, we will provide 30 dispensing needle and 5 glue syringe for each machine. Others system will be negotiable with customer.
6.Q: How much is the transportation freight?
The freight depends on the quantity, weight, size and the destination port.
7.Q: How about the working life time of machine?
Normally, our machine can be used for over 5 years. Except for consumable parts, the other parts can be replaced for free of charge within one year.
8.Q: How can I trust your company and ensure to get the goods when i placed order from you?
We established since 2000 with 4000 square meter factory, supported by 100 employee. We also have 500 customer all around the globe.
9.Q: How about the package? Is it safe during the delivery?
All machine is packed by standard strong plywood with foam inside.
10.Q: What's your lead time?
15-20 working days depending to your quantity.
11.Q: Are the machine easy to use? If I have no experience, can I operate it well?
Did you provide the user manual and operating videos to support us?
Yes, our machine is designed easy to use. Normally, it will take you 2-3 hours to learn on how to operate, if you have experience on the similar machine, it will much faster to learn. We will provide the English user manual, and remote video support. If you still have problems, we will arrange on site support.
12.Q: If we come to your factory, will you provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
13.Q: How to avoid glue dripping or glue tail?
We retract back the glue after dispensed. We also reverse the path first before retract the glue dispensing needle.
14.Q: How to estimate the fluid viscosity?
For example, water is 1cp, honey is 50,000cp and wasabi 200,000cp
