at-080 Desktop Harness Spot & Continous Taping Function Manually Controlled Wire Taping Machine
Suzhou Crown Electronic Technology Co., Ltd.- Condition：New
- Voltage：220V
- Packaging Material：Wooden Case
- Automatic Grade：Semi-Automatic
- Application：Wire Harness Process,Car Manufacture Industry
- Maximum Wire Diameter：30mm
Base Info
- Model NO.：AT-080
- Main Engine Speed (Rpm)：200-1400 Rpm, Adjustable
- Applicable Tape：PVC, Vinyl, Cloth, Felt, Tape, etc
- Tape Outer Diameter：up to 110mm
- Tape Width：9-19 (Other Sizes Can Be Customized)
- Tape Roll ID：38mm (Option: 32mm)
- Winding Length：Infinite Length
- Voltage Power：220V,110V Optional
- Weight：35kg
- Packing Size：51*44*40cm
- Transport Package：Wooden Case
- Specification：51*44*40cm
- Trademark：Crown
- Origin：China, Jiangsu
- HS Code：8479899990
- Production Capacity：36000mm,Min
Description
Basic Info.
Model NO. AT-080 Main Engine Speed (Rpm) 200-1400 Rpm, Adjustable Applicable Tape PVC, Vinyl, Cloth, Felt, Tape, etc Tape Outer Diameter up to 110mm Tape Width 9-19 (Other Sizes Can Be Customized) Tape Roll ID 38mm (Option: 32mm) Winding Length Infinite Length Voltage Power 220V/110V Optional Weight 35kg Packing Size 51*44*40cm Transport Package Wooden Case Specification 51*44*40cm Trademark Crown Origin China, Jiangsu HS Code 8479899990 Production Capacity 36000mm/MinProduct Description

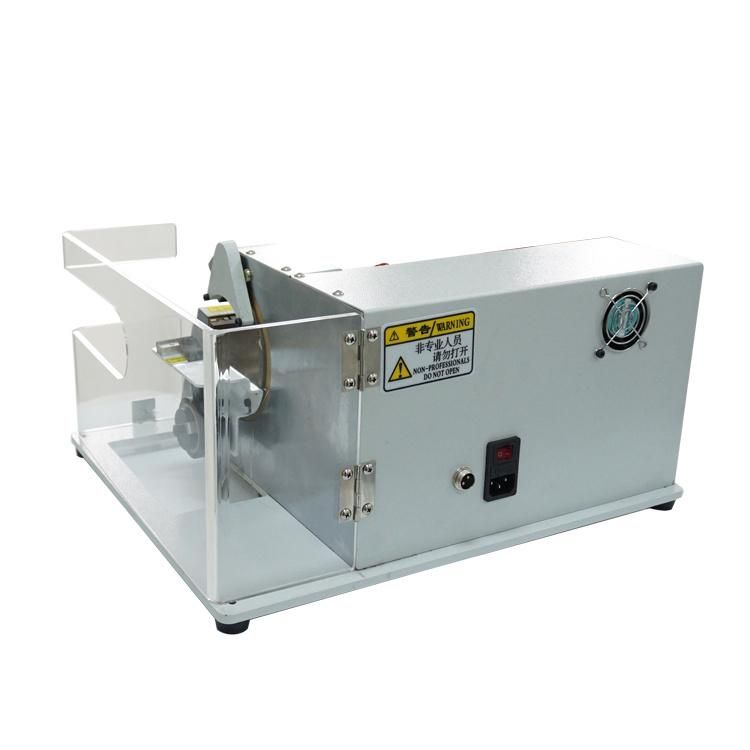

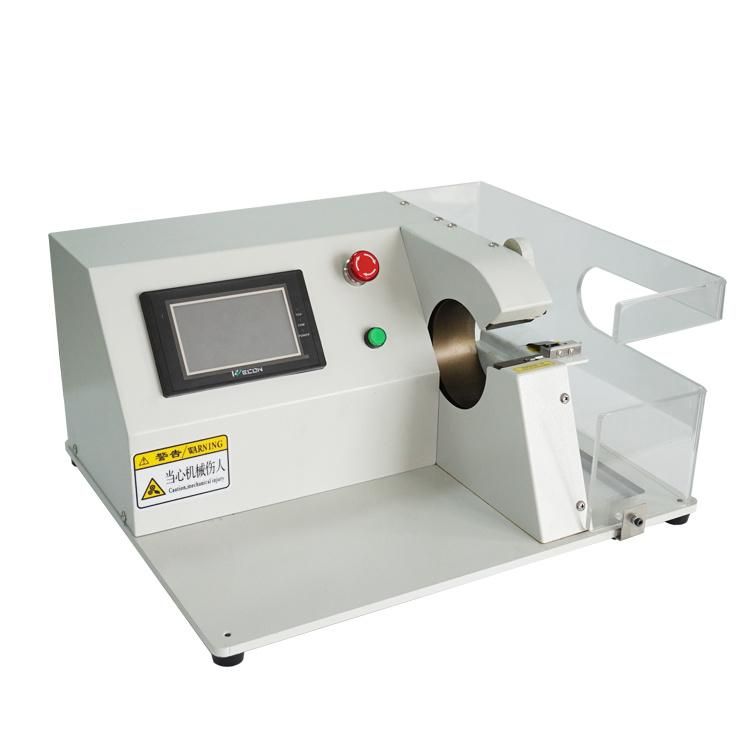

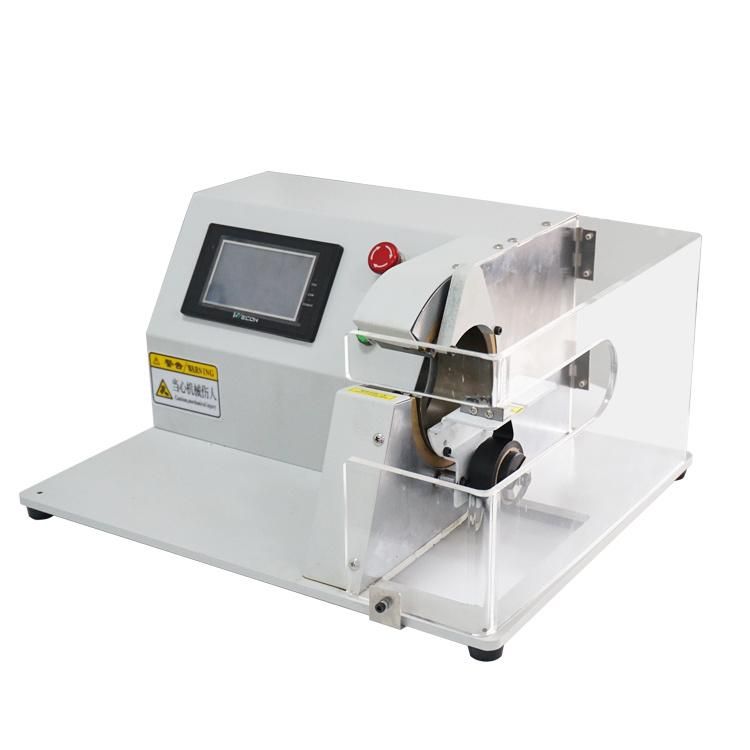

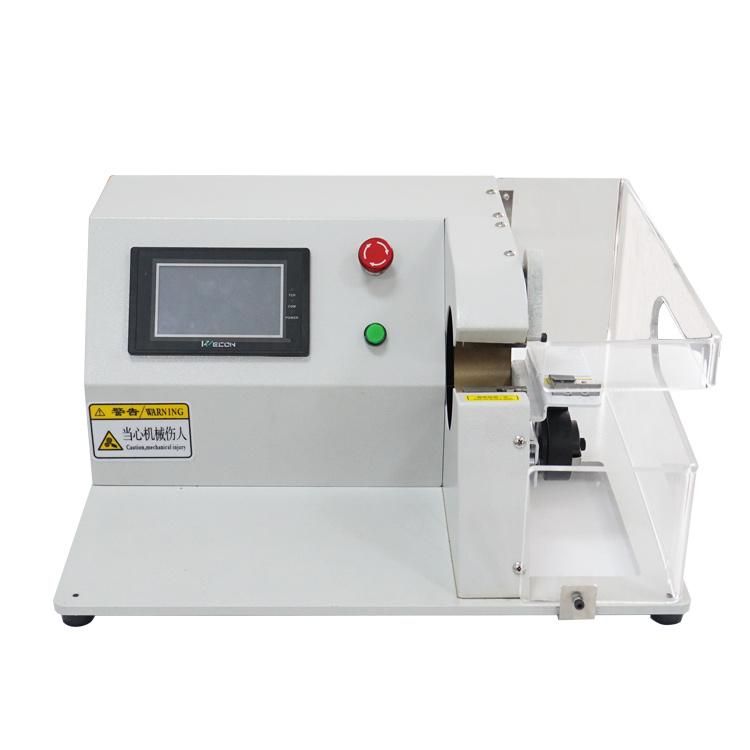

Product description:AT-080 Desktop Harness Spot & Continous Taping Function Manually Controlled Wire Taping Machine
| Model | AT-080 |
| Wire Harness Diameter | 2-40mm |
| Tape Width | <40mm |
| Tape Length | No Limit |
| Tape Roll Diameter | 50mm |
| Taping Speed | 0-600mm/min |
| Air Pressure | 0.4-0.6Mpa |
| Power Supply | 110/220VAC,50/60Hz |
| Weight | 35kg |
| Packaging Size | 51*44*40cm |
Features:
The semi automatic tape winding machine AT-080 is compatible with different types of tape materials without release paper, such as Burkina Faso Tape, PVC tape, etc. It can switch between different winding modes: point winding at the same position, and spiral winding at different positions.
Mode of operation: touch screen
Winding method: spiral winding
Compatible with different types of tape materials without release paper, such as Burkina Faso Tape, PVC tape, etc.
Flat, no wrinkles, the winding of the cloth tape is overlapped with the previous circle by 1/2
Switch between different winding modes: point winding at the same position, and spiral winding at different positions
Semi-automatic winding
Available to custom lap and speed settings and has the output display
Blades can be quickly replaced
Product show:

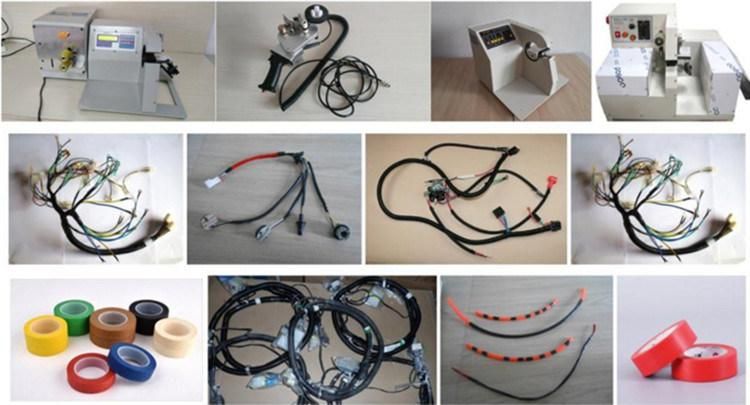

Machine processing samples:

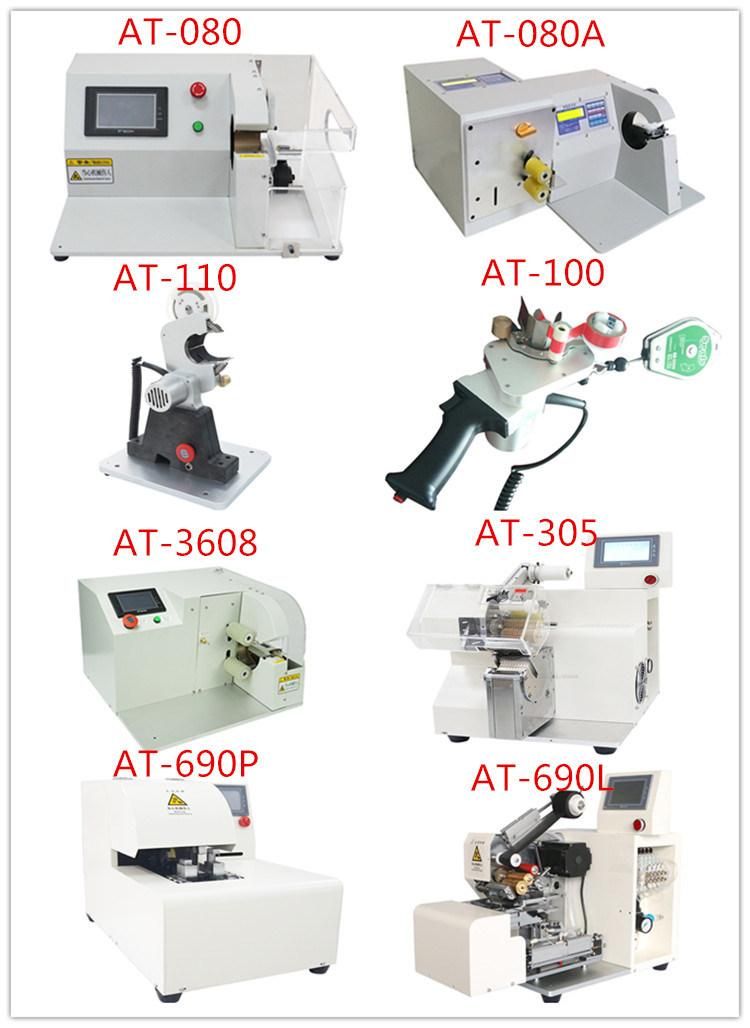

Related products:
Company information:
Contact:
Pls contact Suzhou Crown Kitty for price inquiry or any other questions/doubt.
