Heavy Duty USB Cable Power Cable Injection Molding Machine
Suzhou Crown Electronic Technology Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Screw Diameter：Dia.26, Dia.28mm
Base Info
- Model NO.：WL-JS160
- Theoretical Injection Volume：55.7 ,64.6cm3
- Injection Weight(PS)：50(1.7) 58(2.0)
- Injection Rate：34.6,40 Cm3,Sec
- Max.Injection Pressure：1183 1019kg,Cm2
- Screw Speed Rotation：0~215 r.p.m
- Nozzle out From Platens：105 mm
- Clamping Force：15tons
- Opening Stroke：190 mm
- Min.Mold Thickness：100,25 mm
- Max.Open Daylight：290,215 mm
- Distance Between Tie Bars：265mm
- Ejector Distance：35mm
- Ejector Force：1.3ton
- Transport Package：Wooden Carton
- Specification：700x860x1260mm
- Trademark：crown
- Origin：China
- HS Code：8479819000
- Production Capacity：50PCS,Month
Description
Basic Info.
Model NO. WL-JS160 Theoretical Injection Volume 55.7 /64.6cm3 Injection Weight(PS) 50(1.7) 58(2.0) Injection Rate 34.6/40 Cm3/Sec Max.Injection Pressure 1183 1019kg/Cm2 Screw Speed Rotation 0~215 r.p.m Nozzle out From Platens 105 mm Clamping Force 15tons Opening Stroke 190 mm Min.Mold Thickness 100/25 mm Max.Open Daylight 290/215 mm Distance Between Tie Bars 265mm Ejector Distance 35mm Ejector Force 1.3ton Transport Package Wooden Carton Specification 700x860x1260mm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/MonthProduct Description

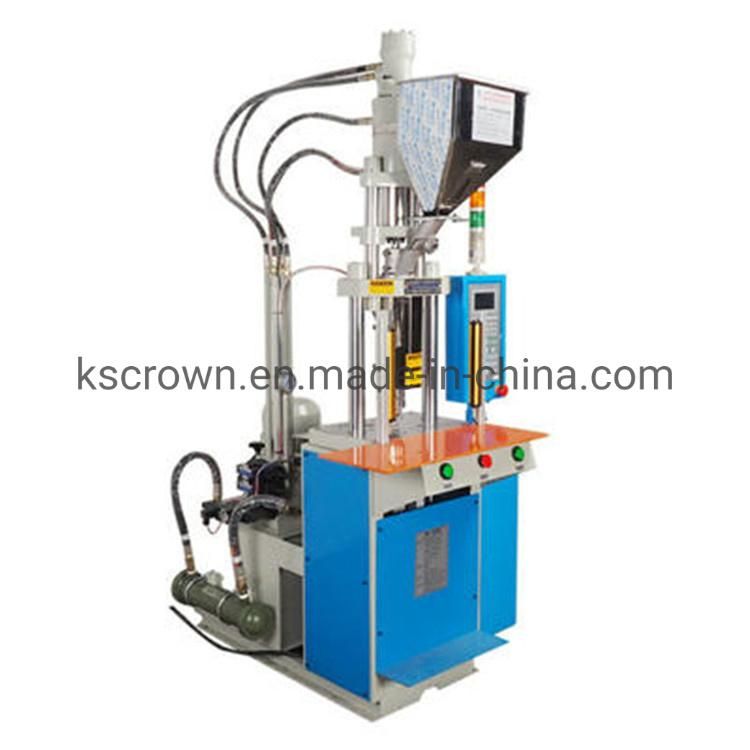

WL-JS160 USB Cable Injection Molding Machine for USB a male micro cable
INJECTION UNIT
| Screw Diameter | Φ26/ Φ28mm |
| Theoretical Injection Volume | 55.7 /64.6cm3 |
| Injection Weight(PS) | 50(1.7) 58(2.0) |
| Injection Rate | 34.6/40 cm3/sec |
| Max.Injection Pressure | 1183 1019kg/cm2 |
| Screw Speed Rotation | 0~215 r.p.m |
| Nozzle Out From Platens | 105 mm |
CLAMPING UNIT
| Clamping Force | 15tons |
| Opening Stroke | 190mm |
| Min.Mold Thickness | 100/25 mm |
| Max.Open daylight | 290/215 mm |
| Distance Between Tie Bars | 265mm |
| Platen Size | 450*280 mm |
| Ejector Distance | 35mm |
| Ejector Force | 1.3tons |
OTHERS
| Max. Hydaulic Pressure | 140 kg/cm2 |
| Oil Tank Capacity | 130L |
| Pump Heating Power | 2.2(3HP) kW(HP) |
| Heater Power | 1.8KW |
| Machine Dimension | 1.3*0.92*2.06 L*W*H mm |
| Machine Weight | 0.45tons |
Features:
Applicable rubber compound: ABS/PVC/PA/PP/PC/POM/PBT fluorocarbon and other heavy engineering plastic injection molding
Straight screw ejected assembly
Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to conectioned
Fixed bottom mold and loose top mold type is suitable for plastic injection molding of inserts and it is also equipled with an ejector for finished products
Low-pressure closed die assembly can protect the safety of die

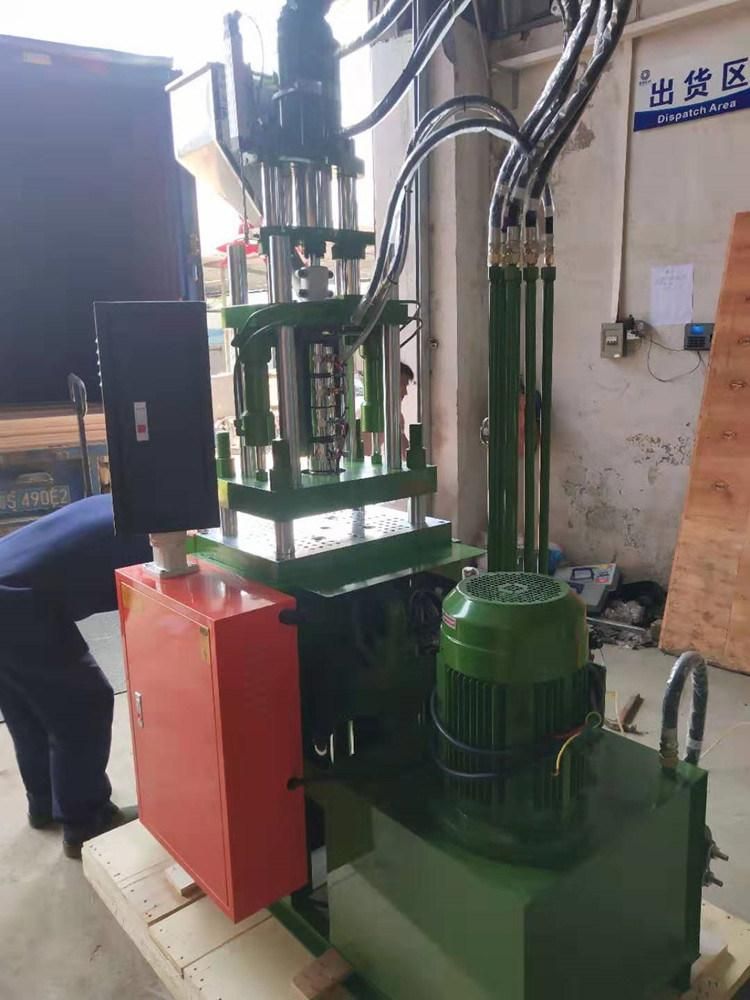

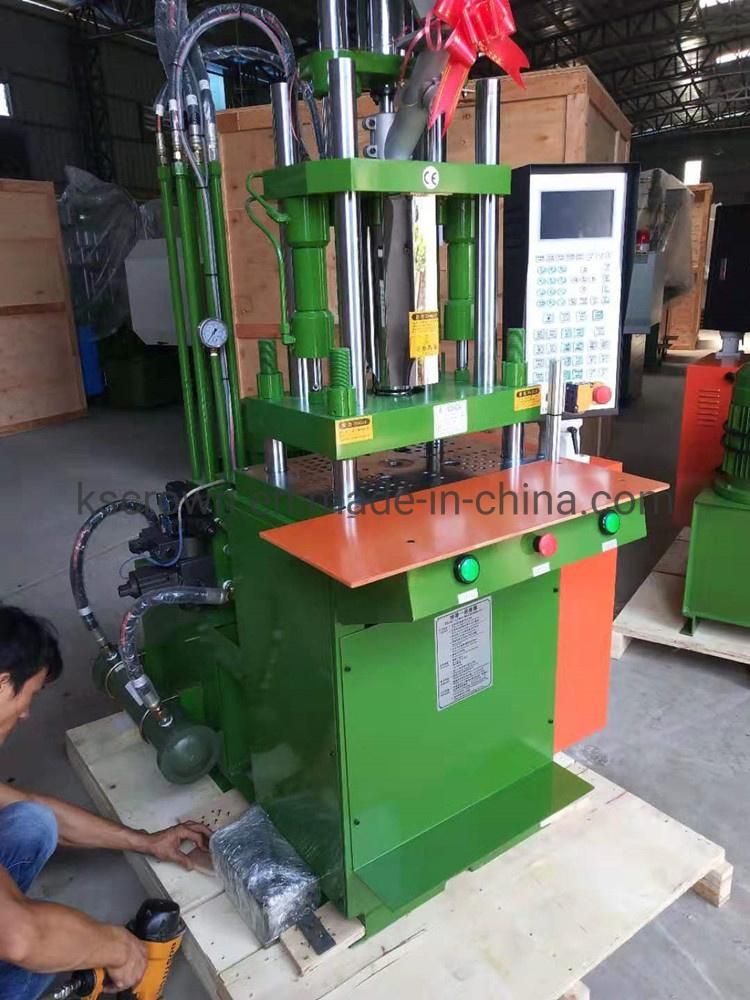

Product Show:
Application Terminal:

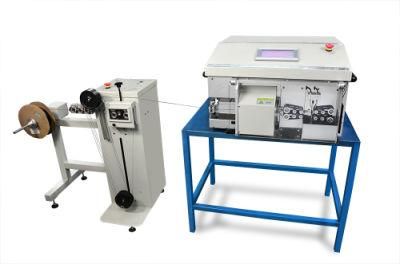

Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

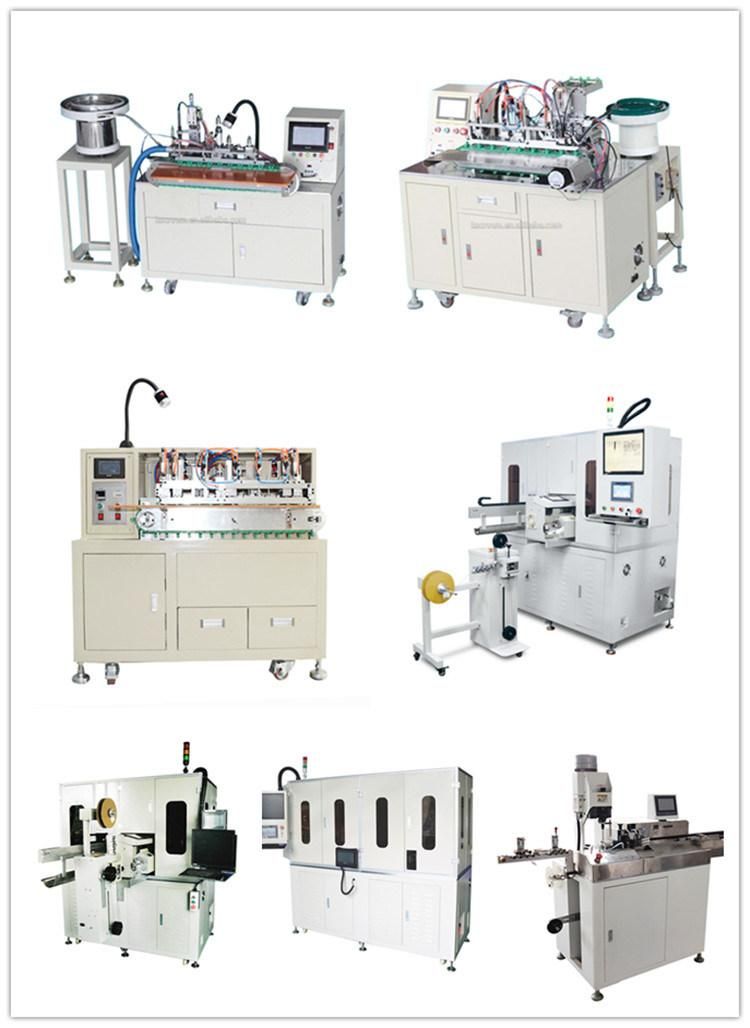

ALso there are many models for your reference.
