• Model NO.：Jaguar R10
• Data Storage：Process Data and Status Storage (80GB)
• Max. Width of PCB：450mm
• Precision：High Precision
• Demoulding：Automatic
• Heating System：Electric
• Customized：Customized
• Heating Method：Hot Air
• Number of Cooling Zones：3
• Transport Package：Wooden Box
• Specification：CE
• Trademark：Jaguar
• Origin：China Shenzhen
• HS Code：8515190000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. Jaguar R10 Data Storage Process Data and Status Storage (80GB) Max. Width of PCB 450mm Precision High Precision Demoulding Automatic Heating System Electric Customized Customized Heating Method Hot Air Number of Cooling Zones 3 Transport Package Wooden Box Specification CE Trademark Jaguar Origin China Shenzhen HS Code 8515190000 Production Capacity 100 Sets/Month

Product Description

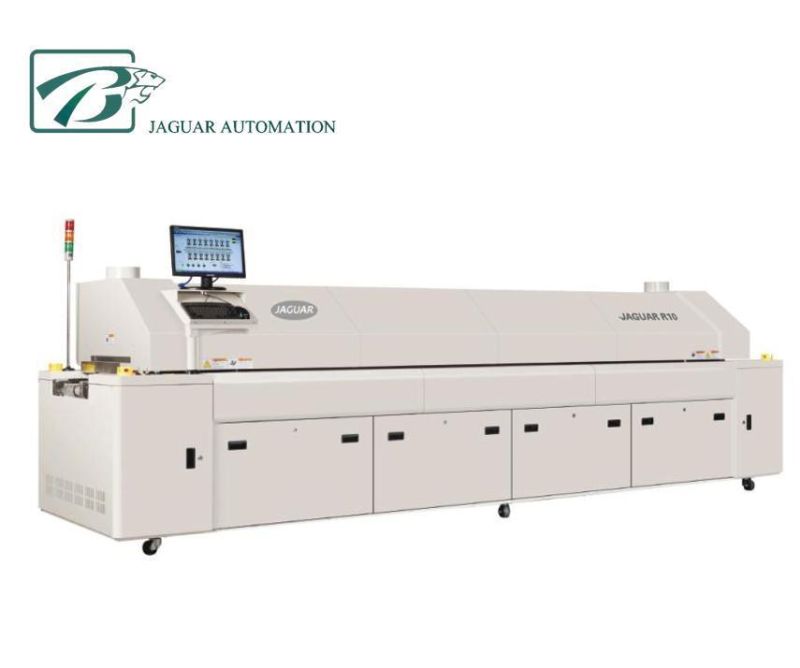

Longer Heating Zones Reflow Oven machine
Main product: wave solder,reflow oven,SMT conveyor, chip mounter, LED equipment, PCB loader and unloader, screen printer, SMT line, SMT machine ect.Shenzhen Jaguar Automation Equipment Co.,Ltd is one of the leaders in SMT machine in China.Then what we can do for you if you want to set up a SMT factory?1. we can provide full SMT solution.2. we can provode you with top technical support.3. we have enrich experience on SMT factory set up.4.we can provide the best professional tech service.5.we can help you to deal with all the trouble about SMTSpecification:

Model	JAGUAR R10/R10-N
Outside dimension	6000 X 1400 X 1600mm
Standard color	Computer grey
Weight	2500kg
Number of heating zones	Up10/bottom10
Length of heating zones	3750mm
Number of cooling zones	2
Exhaust volume	10M³/min*2 exhausts
Power supply	5line, 3phase, 380V 50/60Hz
Start-up power	68KW
Power for warm up	58KW
Normal power	11KW
Heating pattern	Up & Bottom Hot air
Warming time	Approx. 20minutes
Temp. setting range	Room temp-350 degree
Control system	PLC+ Computer
Temperature control method	PID close loop control +SSR driving
Temperature control precision	± 1.0degree
Temperature deviation on PCB	± 1-2 degree
Data storage	Process data and status storage (80GB)
Abnormal alarm	Abnormal temperature (extra-high/extra-low temp.)
Board dropped alarm	Tower light: yellow warming: Green-normal: Red-abnormal
Max. width of PCB	450mm
Rail Number	1 Lane Or 2 Lane (option)
Components clearance	Top/bottom clearance of PCB is 25mm
Conveyor height	Light → right(option: R→ L)
PCB transmission agent	chain +mesh
Conveyor height	900± 20mm
Conveyor speed range	0~2000mm/min

 Introduction:
1. Windows XP O/S, so simply as Chinese and English interface onscreen alternative available.
2. The digital control system adopted with PLC +Modular circuit to stabilized and accurate of repetitive precision.
3. Intelligent diagnosis system (IDS) has the function of trouble remind, alarm, list-out, report saving.
4. Temperature and blower speed controlling adjustable independently, to meet the high-precision requirements.
5. To minimize the temperature difference of various volumes of components by newly chambers design, with enhance the reliability and protective of each solder joints.
6. Step forced cooling system to easily achieve the requirements of strict lead-free processes (cooling slope: ≥ 3degree/sec.)
