• Winding Od：30~500mm
• Tension Control：by Pneumatic Disc Brake Valve, and Japan SMC
• Pintles Closing Motor：0.75kw Siemens AC Motor
• Max Loading Capacity：80t
• Max Speed：40m,Min
• The Bearings of Main Parts：Chinese High Quality Brand: Hrb , Zwz, Lyc
• Transport Package：Standard Export Packing
• Trademark：HLT
• Origin：China Jiangsu
• HS Code：8479400000
• Production Capacity：1000 One Year

Basic Info.

Winding Od 30~500mm Tension Control by Pneumatic Disc Brake Valve, and Japan SMC Pintles Closing Motor 0.75kw Siemens AC Motor Max Loading Capacity 80t Max Speed 40m/Min The Bearings of Main Parts Chinese High Quality Brand: Hrb / Zwz/ Lyc Transport Package Standard Export Packing Trademark HLT Origin China Jiangsu HS Code 8479400000 Production Capacity 1000 One Year

Product Description

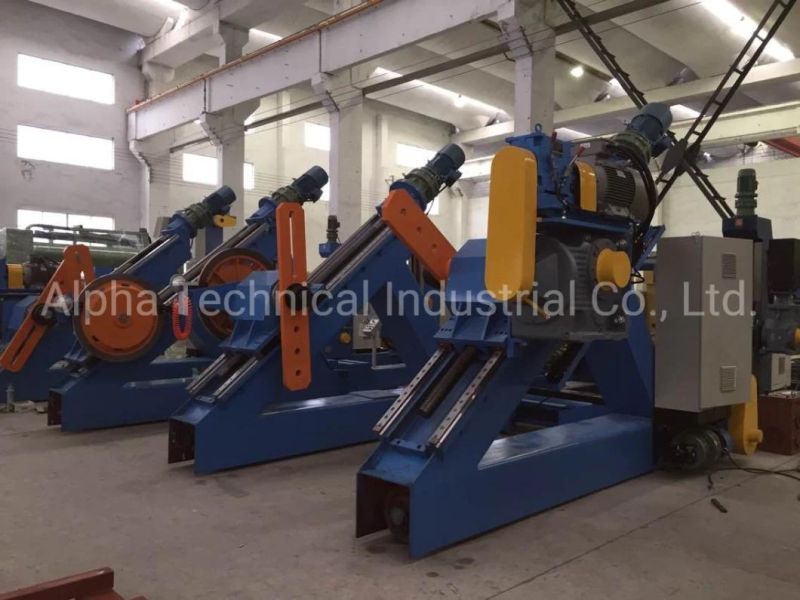

Y-Type Wire Cable Take-up & Pay-off Machine



I. Equipment Application:
Mainly used for various types of cable production equipment's pay-off and take-up.

II. Structural characteristics:
1. High-quality steel plate bending welding frame, high-quality seamless steel pipe is used to form the opening and closing sleeve structure, beautiful appearance, solid and durable.
2. Shaftless opening and closing ditch, dual lifting system, no crane is needed for loading and unloading the reel.
3. The whole machine together with the cable tray walks on the ground track to collect and unwind the cables so that the cables can be centered and retracted, and the cables can be unwinded.
4. Gantry-type ground rail walking, effective use of space, is conducive to the realization of double-receiving, double-amplifying.
5. The take-up motor is driven by Z4 DC motor or variable-frequency motor. It can be equipped with 2-4 gear gearboxes. The company's uniquely designed main and passive integrated gearboxes can be used to meet the needs of different processes.
6. The pay-off is provided with mechanical friction tension, magnetic powder brake control tension, magnetic powder brake + gearbox damping tension, friction disk + air pressure butterfly brake + precision electronic proportional air pressure regulating valve to control tension and other forms for users to choose.
7. The cable motor can be driven by a variable frequency motor or AC servo motor. The cable is controlled by the computer digital display cable controller or PLC programmable controller + Siemens text. According to the input wire diameter and cable reel size, the automatic tracking of the cable and the production line can be synchronized.
8. The mechanical and electrical controller has an external communication interface, which can easily achieve joint control with various production line hosts. There are speed take-up and constant tension take-up; passive pay-off; active pay-off; main and passive pay-off.
9. According to different purposes, there are a variety of structures such as single column, double column, upper type, lower type, etc. for users to choose.

III.Technical Parameter

Model	XLM2500/4500	XLM3200/5000
Cable OD(mm)	φ30~φ80	φ40~φ200
Reel Diameter(mm)	φ2500~4500	φ3200~5000
Reel Width(mm)	1900~2500	2300~2800
Max Speed(m/min)	40	30
Load capacity (ton)	60	80

IV. Related Equipment

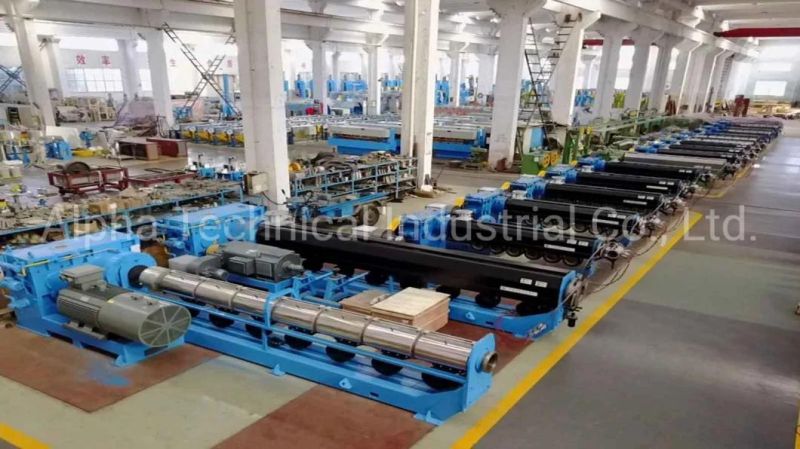

Cable extrusion machine
A.Description
The unit comfortable soft PVC, such as poly(PVC by hot press method to be extruded insulation wire core)
B.Technical parameter

Type & Size	Screw Dia. (mm)	L/D ratio	Screw speed (rpm)	Main motor (kw)	Barrel heating power (kw)	Temp. contr. zones (body/cross head)	Max. output capacity (PVC) (kg/h)
SJ30X25	20	25:1	5-150	11	3.6	3/2	20
SJ45X25	45	25:1	10-120	15	9	3/2	50
SJ65X25	65	25:1	10-100	30	16	4/4	120
SJ90X25	90	25:1	10-100	90	30	4/4	280
SJ120X25	120	25:1	7-68	132	54	6/4	580
SJ150X25	150	25:1	6-60	185	88	6/4	880
SJ200X25	200	25:1	4-40	250	140	7/4	1100

Cable pulling machine
Mainly used for various cable production lines as single machine or front and rear double traction

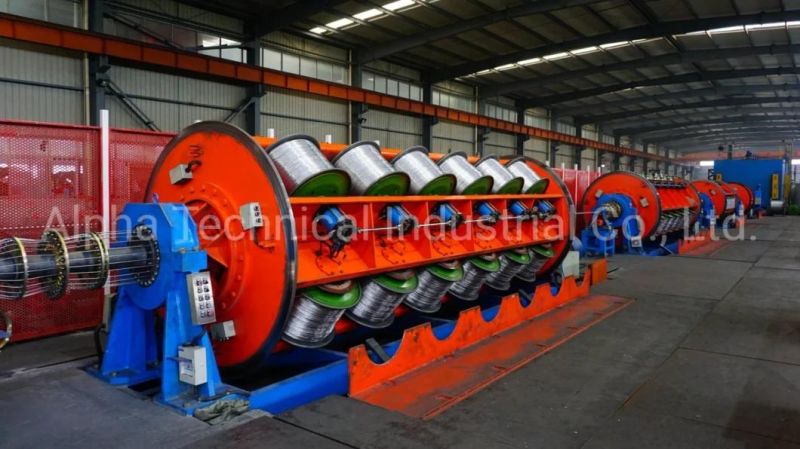

Cable strander

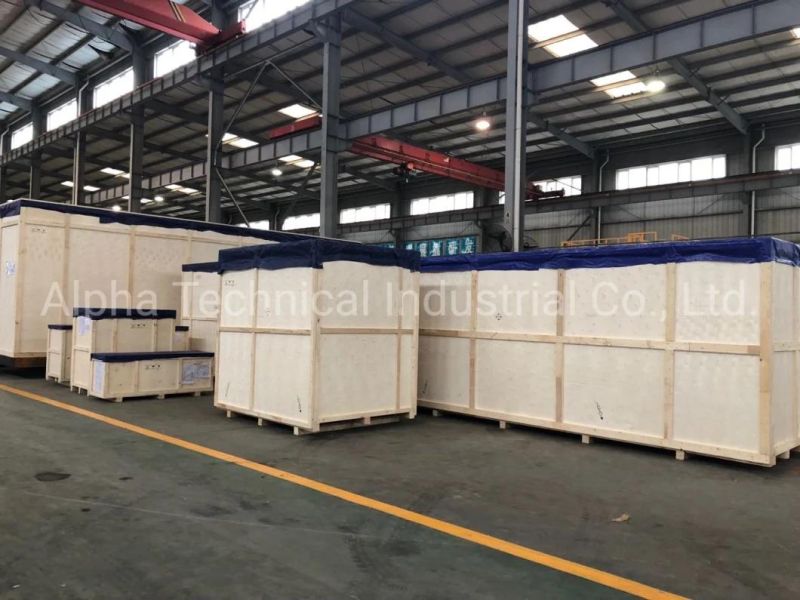

V. Package



VI. Company profile
Wuxi Longterm Cable Machinery Co., Ltd is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Caterpillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, Iran, etc.

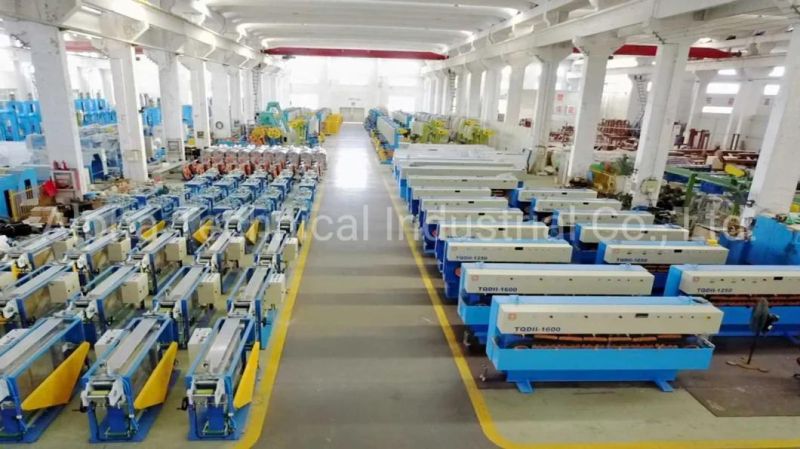

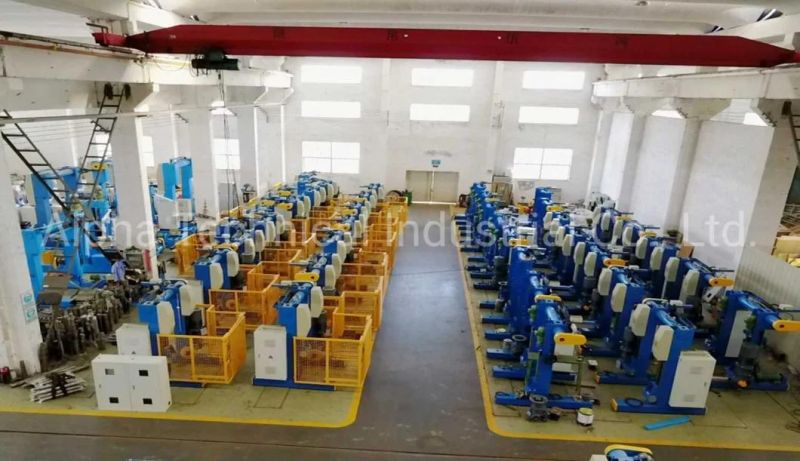

Factory show



Our Team


VII.Customer
Customer visiting


Cable extrusion production line in the USA



VIII.FAQ

− Q: Are you the manufacturer or trading company?

     A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipment for more than 20 years.

− Q: What is your company's main production?

     A: We specialized in all types of cable machine researching and manufacturing. Our products include wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Caterpillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.

− Q: What can we offer our customers?

     A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.

− Q: How long is the machine warranty?

     A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)

− Q: Why do I choose your company?
     A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.

         We have an experienced team of skilled workers and engineers.

         We can support overseas training engineers.

         We can customize the design, to accept the customer's sample design.

         We can provide customers with after-sales service.

Enable us to make a quotation for you. pls kindly revert to us for the below information: 1. How many kgs/meters to extrusion per hour?
 2. Reel/Flange Diameter, we need to quote correct take-up and pay off machine
 3. Could you please send us a picture of your cable structure?
 4. Extrusion material, I mean cable sheath material? Cable sheath thickness?
 5.Cable size?
 6.Cable pulling speed?
