• Cable processing type: Coaxial cable, triaxial cable, shielded cable and rigid cable.

• Processing wire range: 0.8-7.0mm, such as rf1.13, rf1.78, rf3.16, rg58, rg59, rg1.41, etc.

• The machine provides flexible storage and recall of data for easy processing of cables of different diameters.

• The blade is made of Swiss tungsten steel to ensure the life and accuracy of the blade.

  8608

• This semi-automatic coaxial wire stripping machine can strip up to 9 layers;

• The color touch screen control system makes it easy to set up various functions, and can save 50 sets of data;

• Three working modes: automatic peeling, manual peeling, and foot switch operation peeling;

• The transmission is driven by Japanese NSK ball bearings and wire rods to keep the motion accuracy within 0.08 mm;

• The host control system adopts Japan OMRON high-precision PLC multi-point control system, and the performance is more stable;

• The coaxial cable stripping machine uses a specific concentric positioning device, so that the user does not need to retrieve the center when changing the tool;

• The blade adopts imported Swiss tungsten steel, and the precision of the cutting is ensured by 15 high-precision grinding processes with a knife edge finish of 0.0005 mm.

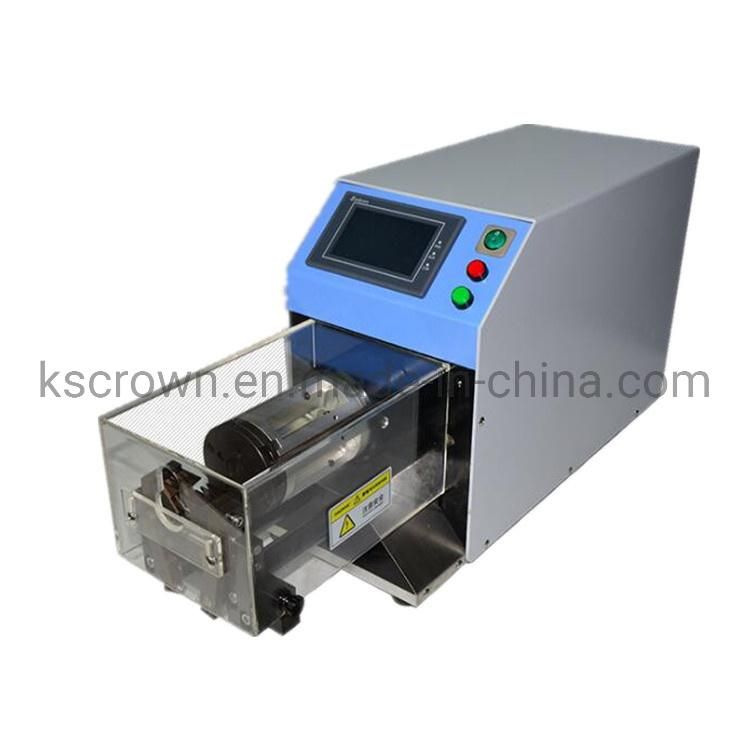

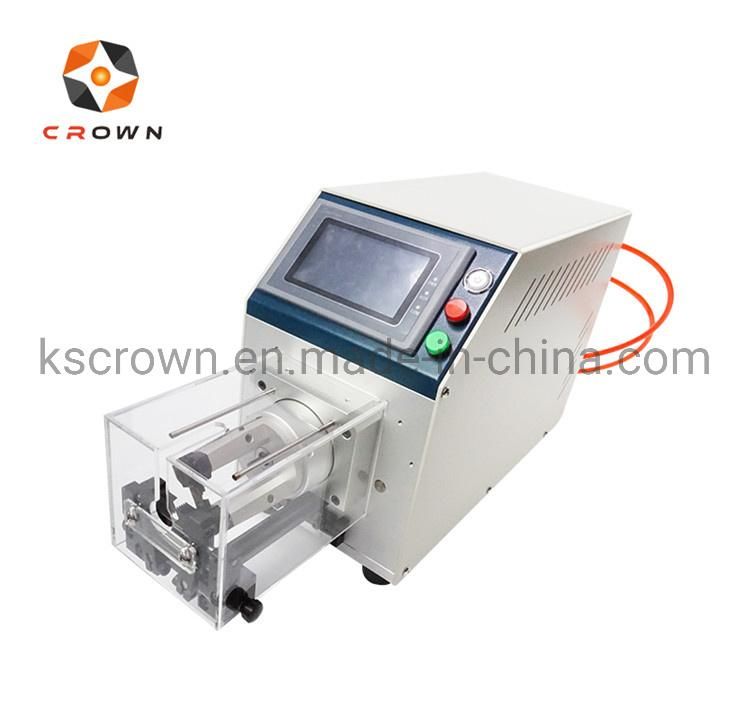

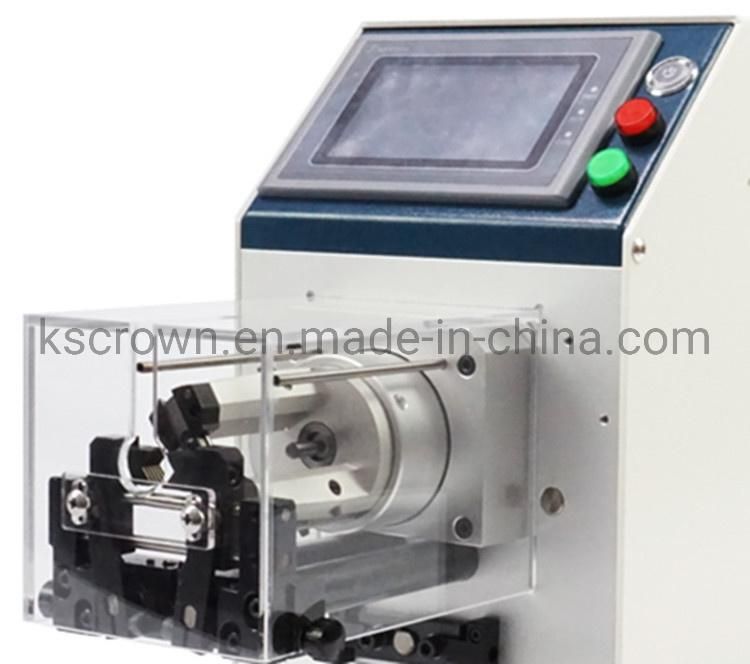

Product show:

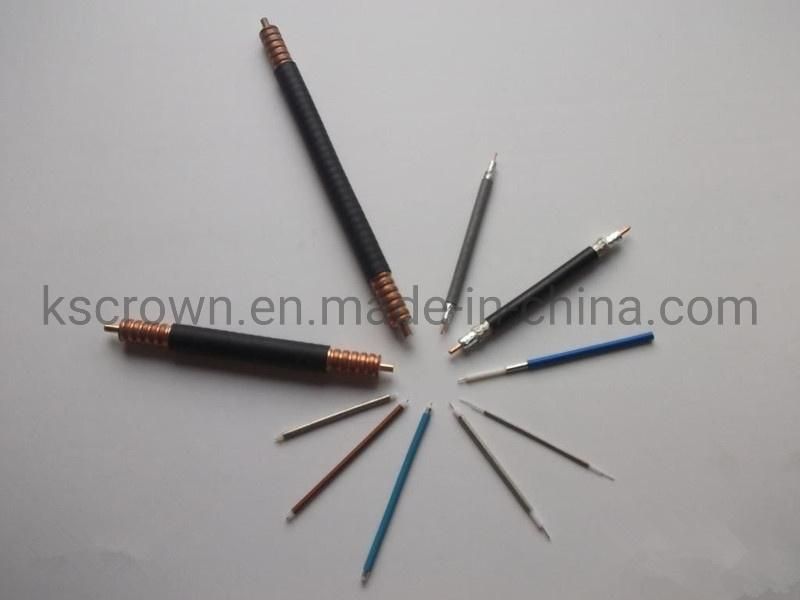

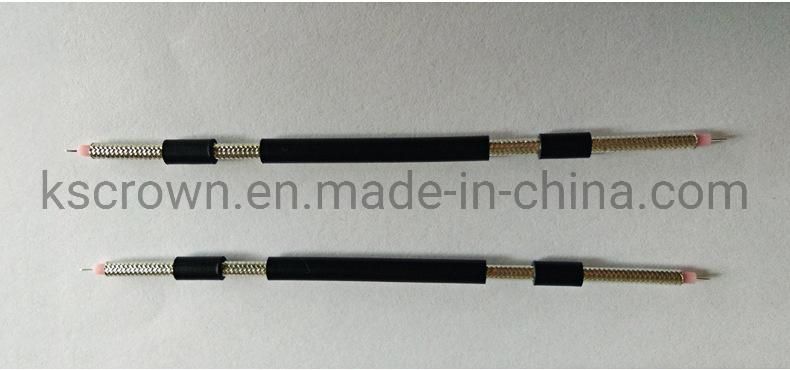

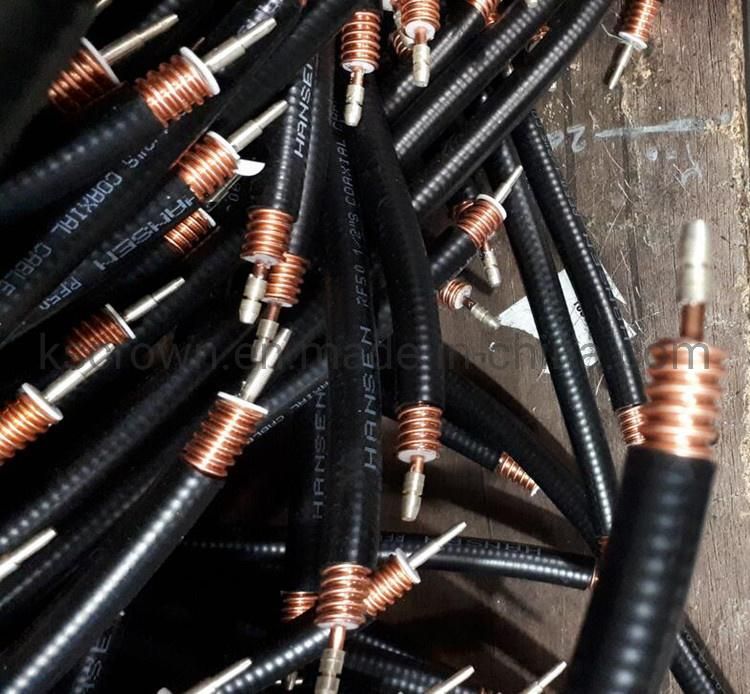

Machine processing wire samples:

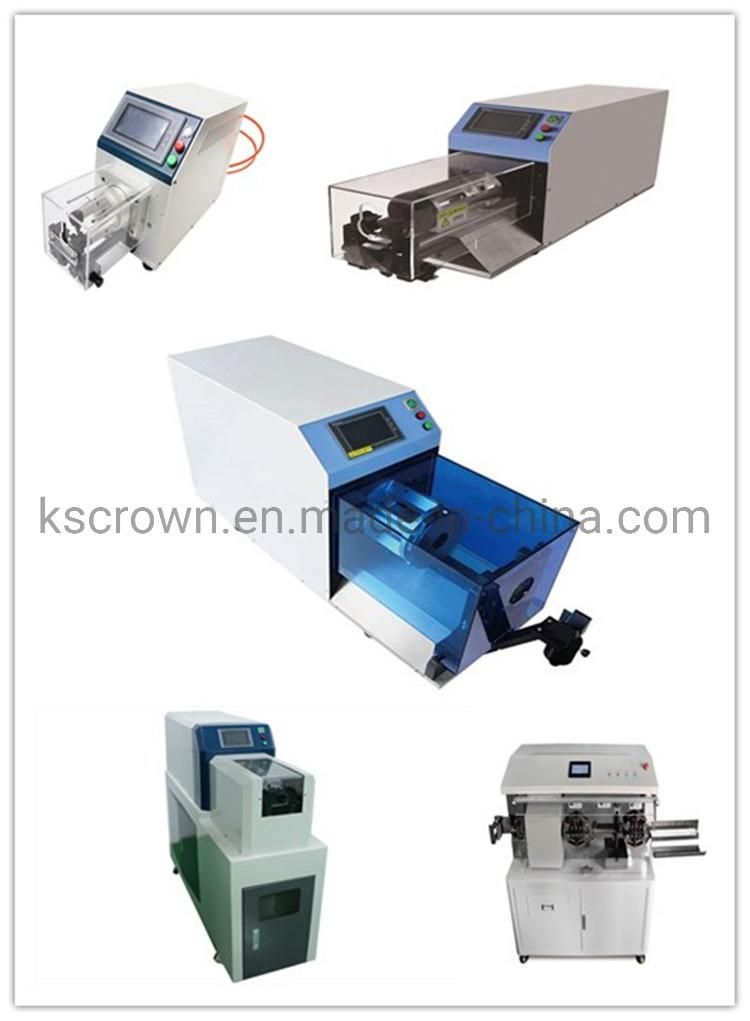

Related products:







FAQ:

Our service

We provide:

· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.
