Coaxial Cable Stripper High Accuracy Coaxial Wire Stripping Machine Wg-4806D for Hard Coaxial Cables
GUANGDONG WINGUD INTELLIGENT TECHNOLOGY CO., LTD.- Driven Type：Electric
- Condition：New
- Certification：ISO
- Warranty：12 Months
- Automatic Grade：Semiautomatic
- Power Supply：AC110,220V,50,60Hz
Base Info
- Model NO.：WG-4806D
- Power Consumption：Min.20W-Max.380W
- Funtaion：Stripping
- Wire Diameter Range：1-6 mm
- Stripping Layers：1-9
- Strip Length：1-48mm
- Transport Package：Wooden Case
- Specification：600*440*380mm
- Trademark：wingud
- Origin：China
- Production Capacity：120,Month
Description

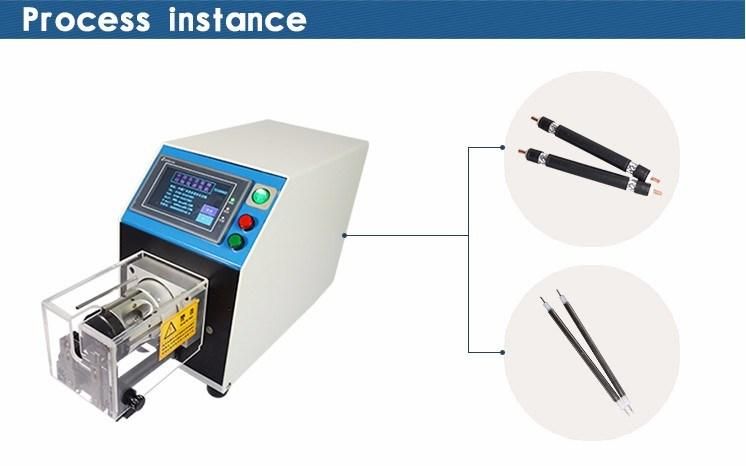

450-650pcs/h(depending on the length and layer of wire stripping)
F&Q
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete. Most of the equipments are in stock and can be shipped quickly. We have our own factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customize.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery.
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples.
4. How to operate the equipment?
There is Manual operation for each machine. Also, we could make video for you, it will show you how to do it step by step. Please contact our maintenance department or sales department at any time when you don't understand, support video and telephone communication
5.When the machine can't work well,What should I do?
Please contact our maintenance department or sales department, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine, ensuring you can operate the machine easily.

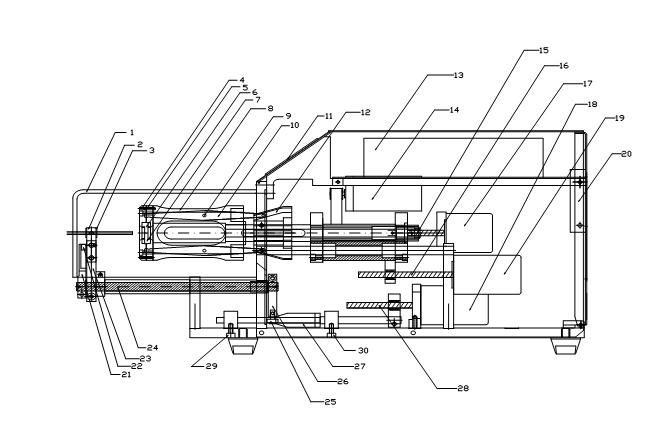

| Item | Name | Item | Name | Item | Name |
| 1 | Visual shield | 2 | Clamping jaw seat | 3 | Clamping jaw |
| 4 | Blade cover | 5 | Blade frame fixed seat | 6 | Centering slice fixed frame |
| 7 | Blade fixed frame | 8 | Tool bit | 9 | Fine-tuning accentric pin |
| 10 | Arm of force for blade | 11 | Touchscreen control system | 12 | Trust adjusting frame |
| 13 | Power supply | 14 | Rotation motor | 15 | Blade frame screw |
| 16 | Stripping screw | 17 | Blade motor | 18 | Clamping motor |
| 19 | Stripping motor | 20 | Exhaust fan | 21 | Arm of force for clamping |
| 22 | Clamping roller wheel | 23 | Clamping fixed seat | 24 | Clamping force-transmission shaft |
| 25 | Clamping bearing | 26 | Clamping force-transmission rod | 27 | Clamping trust |
| 28 | Clamping screw |
