• Model NO.：WL-250H
• Wire Size：Max. 8mm
• Outer Stripping Length：Max. 50mm
• Air Pressure：0.4-0.8 MPa
• Stroke：100mm
• Output：49-115kg
• Transport Package：60*40*50cm
• Specification：40kg
• Trademark：Crown
• Origin：China
• HS Code：8479819000

Basic Info.

Model NO. WL-250H Wire Size Max. 8mm Outer Stripping Length Max. 50mm Air Pressure 0.4-0.8 MPa Stroke 100mm Output 49-115kg Transport Package 60*40*50cm Specification 40kg Trademark Crown Origin China HS Code 8479819000

Product Description

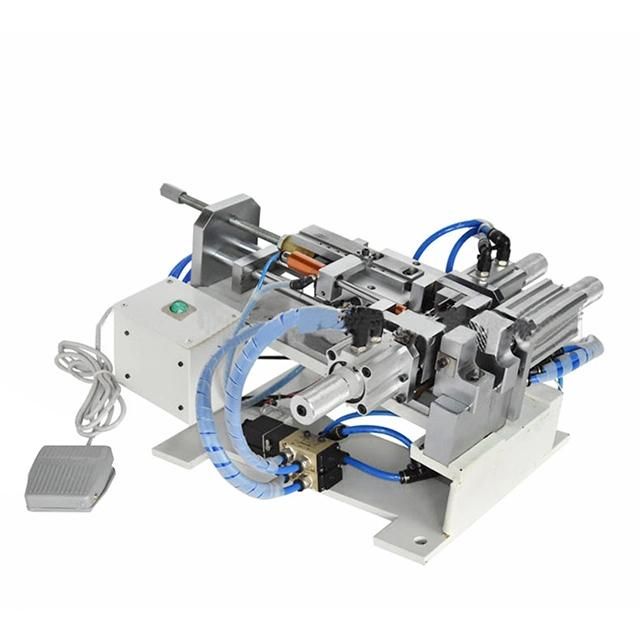

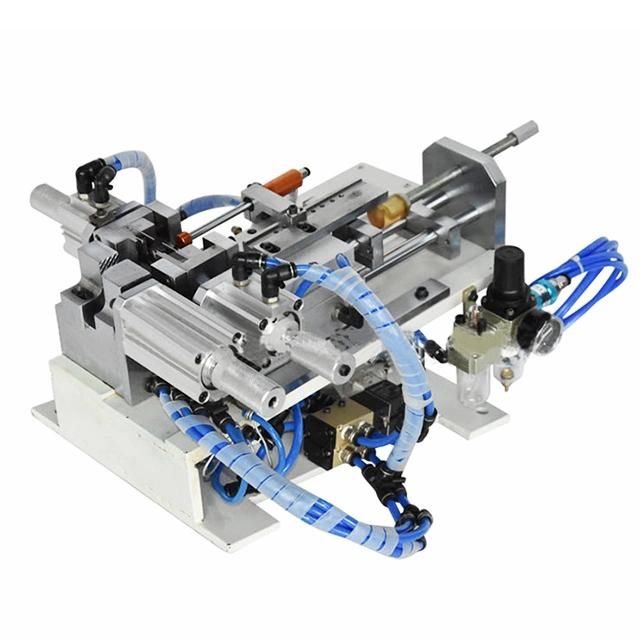

WL-250H Pneumatic multicore Sheathed Cable jacket and core Stripping Machine

Product Description:

This pneumatic sheathed cable stripping machine can peel off the outer jacket and inner core jacket simultaneously. It changes the traditional processing technology of peeling the outer skin first and then peeling the inner core skin, saving time and efficiency. It is capable of precise stripping without causing damage to copper wires.

• Precise stripping without causing damage to copper wires;

• Peel off the outer jacket and inner core jacket at one time;

• Unique slide, smooth reciprocating stroke, precise cutting;

• Ergonomic hatchback design;

• Double acting cylinder, no spring break;

• The oil and gas self-supplied two-connected body is used to supply oil to the cylinder regularly, reducing internal wear of the cylinder and prolonging service life;

• Gas-electric control, light and agile, easy to work;

• Adjustable according to wire size;

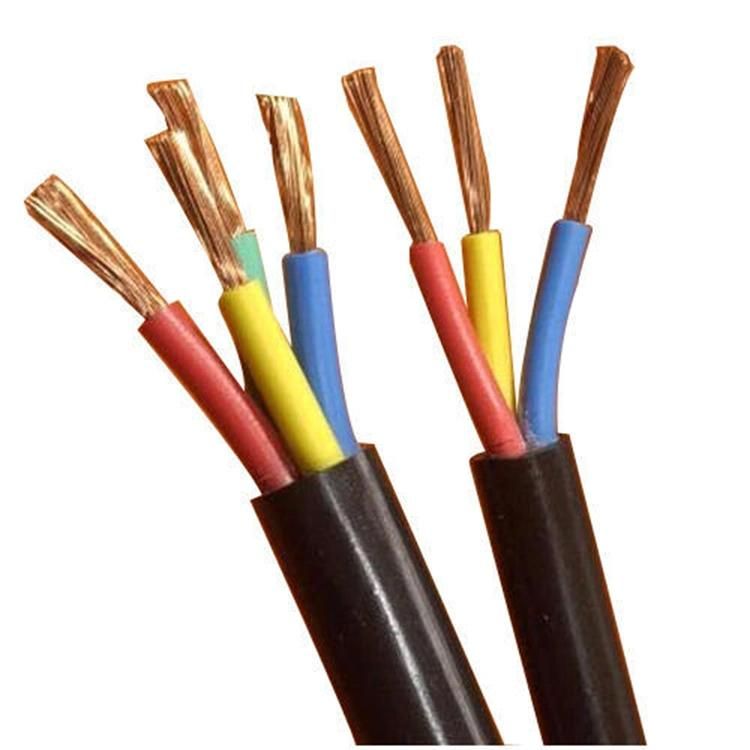

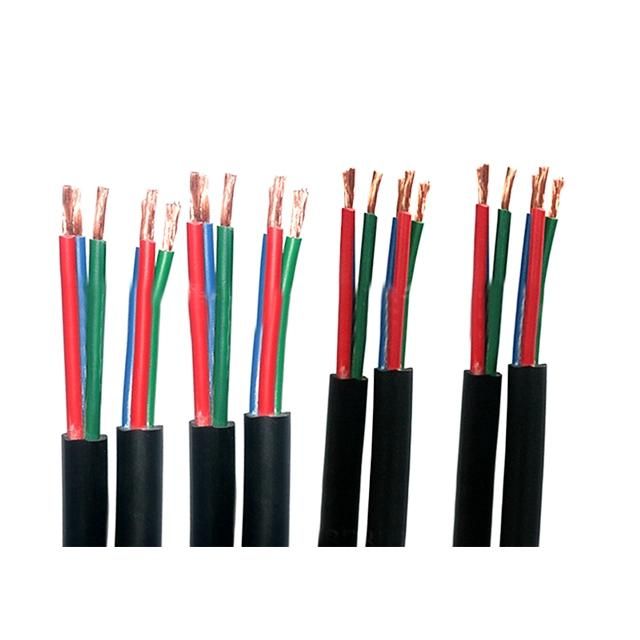

• Suitable for processing small wires and short wires, such as AC / DC cables, power cord, computer cables, multi-core cables, sheath cables, etc.

Specification:

Model	YH-250H
Available wire dia.	Max. 8mm
Outer stripping length	Max. 50mm
Core stripping length	10-15mm
Stroke	100mm
Air connection	0.4-0.8 Mpa
Output	49-115kg
Weight	37kg
Dimensions	60*40*50cm

Application







Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Company info:






Our Services

1, One year guarantee for the whole machine except blade and belt.

2, 24 hours technical support by email.

3, User-friendly English software and user manual.

-Purchase guidance

If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models

to you.

---After Sale Service

Don't worry, we are here to help. Crown provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!

--- Technical Support

In some cases, professional technical support will be needed, such as parameter meter set-up

 for difficult-to process wires. Crown engineers are here for your assistance.

---Others

Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers.

Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
