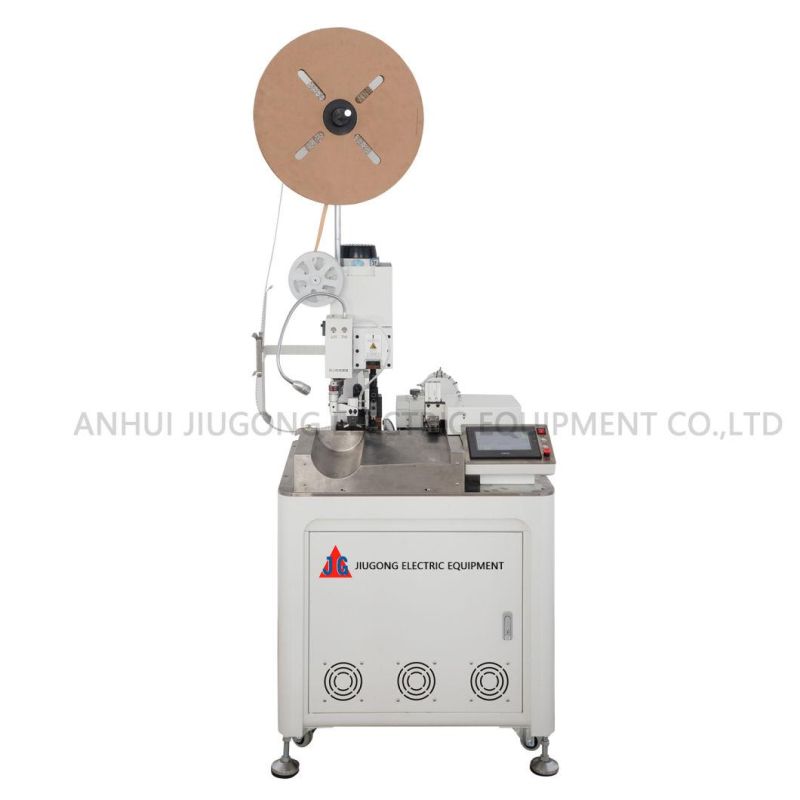

Fully Automatic Wire Cutting Stripping and Crimping Machine with Waterproof

Anhui Jiugong Electronic Equipment Co., Ltd.
  • After-sales Service：Slove Your Problem in 24hours
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, SGS
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Transport Package：Carton,Wooden Case
  • Specification：700*900*1220mm
  • Trademark：JG
  • Origin：China
  • HS Code：8479819000

Description

JG Outer dimensionsL700mm*W900mm*H1220mmWeight300kgPower supplyAC220V/50HZFunctionWire cutting and Stripping, one side twisting tinning , another
side crimpingDisplayEnglish / Chinese interfaceCutting length40mm-800mm( standard type )Cutting tolerances±(1mm+ 0.002×L )mm L : indicates a cutting length.Stripping length0.1mm--15mmApplicable wiresAWG30-AWG20 (standard)
Optional : up to AWG14 ,AWG13Twisting length4-10mmDetectorWire existence,wire overload, strip error,terminal existence,
crimp error. Bad crimpingCompressed Air6--6.5kg use clean dry airProductivity(pcs/h)Productivity(pcs/h) 4500pcs/h (wire length within 300mm) 5000pcs/h (length
100mm)


Fully Automatic Wire Cutting Stripping and Crimping Machine with Waterproof
