• Model NO.：XJ-500
• Certification：Ce, CCC
• Demoulding：Automatic
• Heating System：Electric
• Function：High Temperature Resistance
• Mould Life：>1, 000, 000 Shots
• Customized：Customized
• Warranty：12 Months
• Transport Package：PE Film + Wooden Pallet
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan City, Guangdong Province, China
• HS Code：8479400000
• Production Capacity：6 Sets,Month

Basic Info.

Model NO. XJ-500 Certification Ce, CCC Demoulding Automatic Heating System Electric Function High Temperature Resistance Mould Life >1, 000, 000 Shots Customized Customized Warranty 12 Months Transport Package PE Film + Wooden Pallet Specification CE SGS Trademark NEWTOPP Origin Dongguan City, Guangdong Province, China HS Code 8479400000 Production Capacity 6 Sets/Month

Product Description

Horizontal Single (Double) Layer Taping Machine
1.Application:
Suitable for twisted wire & parallel wire single-layer or double-layer concentric taping or wrapping.
2.Machine Features:
1) High productivity: high rotate speed, the production efficiency is 2.5 times than traditional type.                      2) Tension steady: utomatic calculation tracking and keep constant from start to end, no need any artificial adjustment.
3) Pithch accurate: Overlap set on touch screen which controlled by PLC to keep the pitch more accurate.          4) Good traversing efficiency: traversing by moving shaft, traversing space and pitch can be adjusted according to customer's requirement.
5) Superior quality: the passing rate is 100% in manufacturing process for high-frequency wire, such as HDMI, DP, ATA, SATA, SAS etc.
3. Technical Parameters:

Model	XJ-500
Inlet wire specification	AWG32 - AWG20
Taping materical	aluminum foil tape, cotton paper, transparent tape, mica tape, teflon tape etc.
Rotate speed	Max. 2000rpm / Max. 20m/min
Main power	Adjust the speed by 1HP motor driver, taping drum linkage with capstan motor
Taping tension	Taping tension automatic calculation tracking and keep constant from start to end,  no need any artificial adjustment.
Melting oven	Automatic flexible melting oven, OMRON temperature control, temperature tolerance:±1°C
Take -up tension	Take-up tension keep constant from start to end, no need any artificial adjustment.
Traversing type	Axis-row type take-up, no damage during the traversing process, traversing pitch and width can be adjusted.
Machine dimension	4250mm × 1500mm × 1900mm
Machine weight	2.5 T

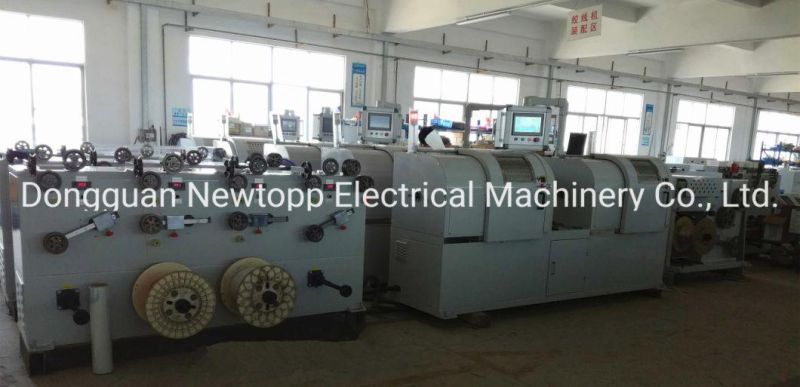

4. Machine Picture:

5. Brand of main parts:
1) Motor: Siemens
2) Driver: Yaskawa or inovance
3) Bearing:NSK, NACHI, ASCHI
4) Electric components: Imported famous brands.
6.Packaging & Shipping:

7.Our Services
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model selection reference and technical consultation;
3) Onestop service for investment equipment,product developing, new materials researching and personnel training.
Sale Services:
1) Invite customers to inspect and take trials of finished machines;
2) Provide the training of the maintenance knowledge;
3) Improve the design to the operator's requirements.
After-sale Services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide quality and efficient after-sale service life long time.

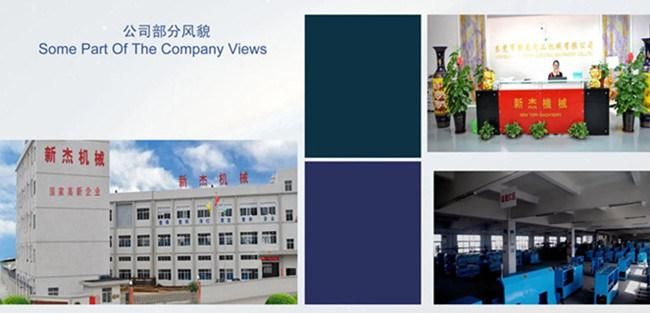

8. About us:
Dongguan NewTopp Electrical Machinery Co.,Ltd is a professional enterprise specializing in wire&cable equipment R&D, design and manufacture.With the continuous improvement of production technology level and Constantly increasing of R&D potency dimension, make the wire and cable equipment Process, performance increasingly perfect and excellent.
