• Model NO.：JAGUAR A8
• Warranty：12 Months
• Automatic Grade：Automatic
• Installation：Vertical
• Length of Heating Zones：2800mm
• Number of Heating Zones：up 8,Bottom 8
• Cooling Mode：Force Air
• Max. Width of PCB：350mm
• Mesh Belt Width：400mm
• Transmission Direction：Left to Right or Right to Left L-R or R-L
• Conveyor Speed：0-1000mm,Min
• Power Supply：5 Line 3 Phase 380V 50,60Hz
• Total Power：38kw
• Temp. Control Method：Pid Close Loop Control & SSR Driving
• Transport Package：Wooden Box
• Specification：4200*800*1320mm
• Trademark：JAGUAR Automatio
• Origin：China
• HS Code：8401100000
• Production Capacity：500 Sets,Month
• Package size per unit product：440.00cm * 90.00cm * 152.00cm
• Gross weight per unit product：800.000kg

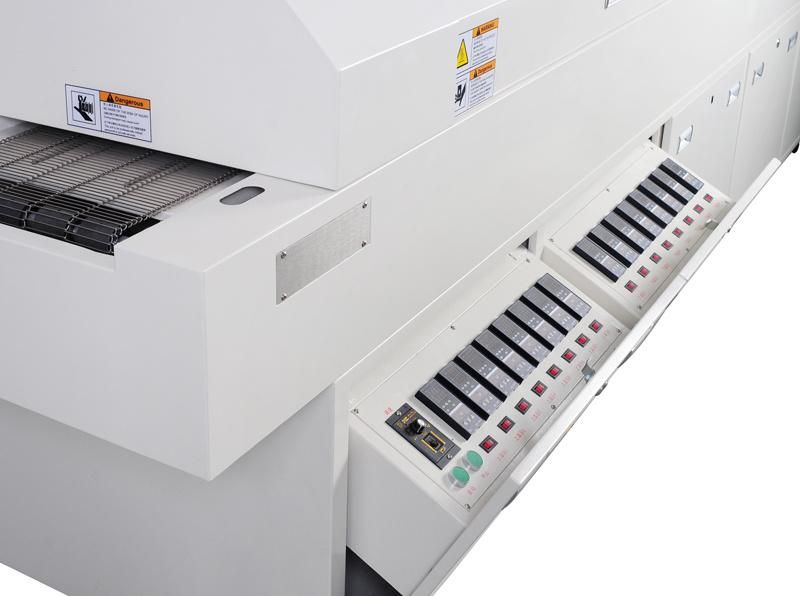

JAGUAR A8

Heating SystemNumber of heating zonesUP 8/BOTTOM 8Length of heating zones2800MMHeating modeUp:hot air; bottom: IRCooling ModeForce air


Conveyor SystemMax. Width of PCB350mmMesh belt width400mmTransmission DirectionL→R(or R→L)Transmission Net Height880±20mmTransmission typeMeshConveyor speed0-1000mm/minFixed rail sideFront rail fixed(option: rear rail fixed)







Control systemPower supply5 line 3 phase 380V 50/60HzTotal power38kwStarting power34kwNormal power consumption4KWWarming timeAbout 20 minsTemp. setting rangeRoom temperature-300ºCTemp. control methodPID close loop control & SSR drivingTemp. control precision±1ºCTemp. deviation on PCB±2ºCData storageProcess Data and status storage(80GB)(machine with PC)Nozzle plateAluminum Alloy PlateAbnormal AlarmAbnormal temp. (extra-high/extra-low temp.)Board dropped alarmTower light:Yellow-warming, Green-normal, Red-abnormal
GeneralDimension(L*W*H)4200×700×1320mmWeight800KGColorComputer gray
Introduction:
The unique advanced long life heating system
1. The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector to the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely .
2. Using special high temperature resistant protection system in heating preservation system and special iron in furnace .
3. Using imported Taiwan SanYue long axis of high temperature fan motor and W shaped heat pipe, Model design, no noise, shockless and easy for maintenance .
4. Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB .the whole top oven fixtures can open completely so that easy to clean the oven inside .

Smooth and reliable transmission system
1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth ,speed range can be arrived at 0-1000mm/min.
2. Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up to ±20 mm/min .
3. Special stainless belt: durable and wear-resistant, not easy to deform and long life.

Stable and reliable electrical control system
1. It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heating .
2. Using thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone .
3. Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the lifetime effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of outside temperature and calorific value, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform temperature in internal and the length ,direction, temperature distribution, all of these meet IPC standards .
4. Power is abundant, heat up fast, it's only need 20 minutes from room temperature to constant temperature.
5. Failure diagnosis and sound light alarm.
6. Delay shutdown production function, uniform cooling after the shutdown: prevent component deformation.

About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC

Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

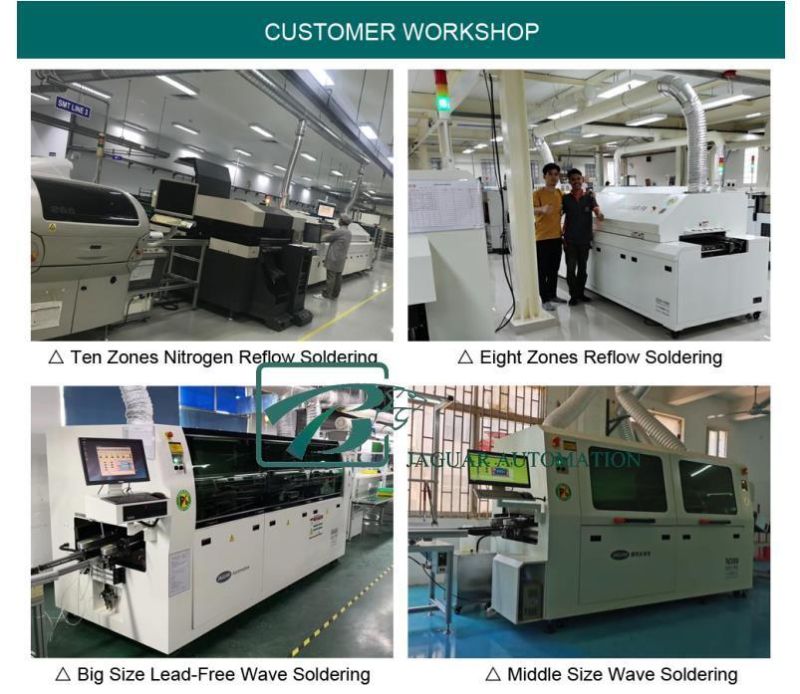

Customer and Feedback:

Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey

Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications

Packing and shipping:

What we can do for you?

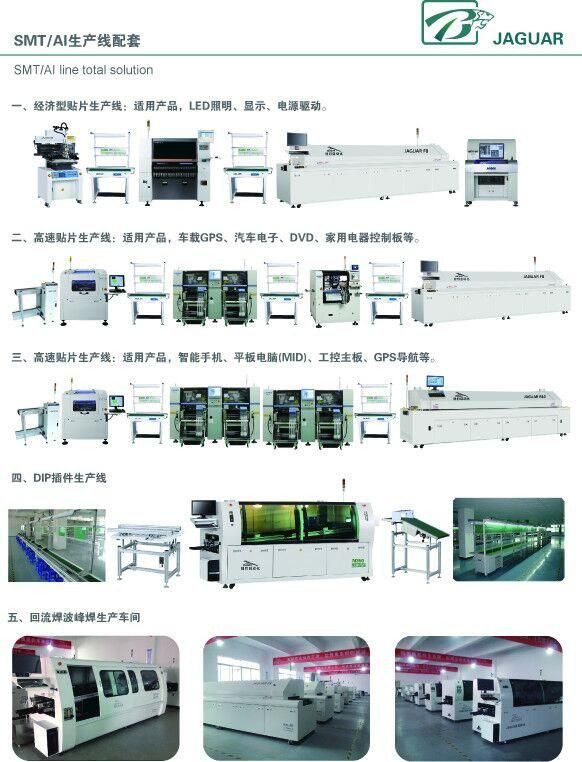

1.  We provide full SMT and THT solution for you
2.  We provide core technology with our equipments
3.  We provide the most professional tech service
4.  We have wealthy experience on SMT and THT factory setup
5.  We can solve any question about SMT and THT

Please contact me if you need any machine!
Best Regards,
Nona Xiao
JAGUAR AUTOMATION
Add.:14th Building,Furong Industrial Zone,Xinqiao Street, Bao'an District, Shenzhen,China
