Automatic Wire Cable Coiling Take-up Machine Cable Coiler System
Kunshan Yuanhan Electronic Equipment Co., Ltd.- Voltage：220V
- Warranty：1 Year
- Coiling Machine Model：Yh-Sxj2
- Rolling Diameter：200-680mm
- Rolling Speed：1.5m,S
- Drive Mode：Servo Motor, Adaptive with Speed, Digital Adjustme
Base Info
- Model NO.：YH-SXJ2
- Model：Yh-8070
- Display Mode：7 Inch Real Color Touch Screen
- Function：Wire Cutting and Stripping
- Head Stripping：RV Cable Is up to 120mm, and Sheathed Wire Is up T
- Tail Stripping：up to 260mm
- Cable Types：PVC Cables, Sheathed Wires, etc.
- Stripping Size：10-70 mm2
- Cutting Length：0.1-99999.9mm
- Cutting Tolerance：Within 0.002*L(L=Cutting Length)
- Max Diameter：25
- Capacity：1800 PCS,H
- Transport Package：Double-Layer Export Carton
- Specification：530*530*400mm
- Trademark：yuanhan
- Origin：China
- HS Code：8479819000
- Production Capacity：L=100mm, 3000-7000PCS,H
Description
Basic Info.
Model NO. YH-SXJ2 Model Yh-8070 Display Mode 7 Inch Real Color Touch Screen Function Wire Cutting and Stripping Head Stripping RV Cable Is up to 120mm, and Sheathed Wire Is up T Tail Stripping up to 260mm Cable Types PVC Cables, Sheathed Wires, etc. Stripping Size 10-70 mm2 Cutting Length 0.1-99999.9mm Cutting Tolerance Within 0.002*L(L=Cutting Length) Max Diameter 25 Capacity 1800 PCS/H Transport Package Double-Layer Export Carton Specification 530*530*400mm Trademark yuanhan Origin China HS Code 8479819000 Production Capacity L=100mm, 3000-7000PCS/HProduct Description
Automatic wire Cable Collecting and Coiling Machine match for cable cutting stripping machine

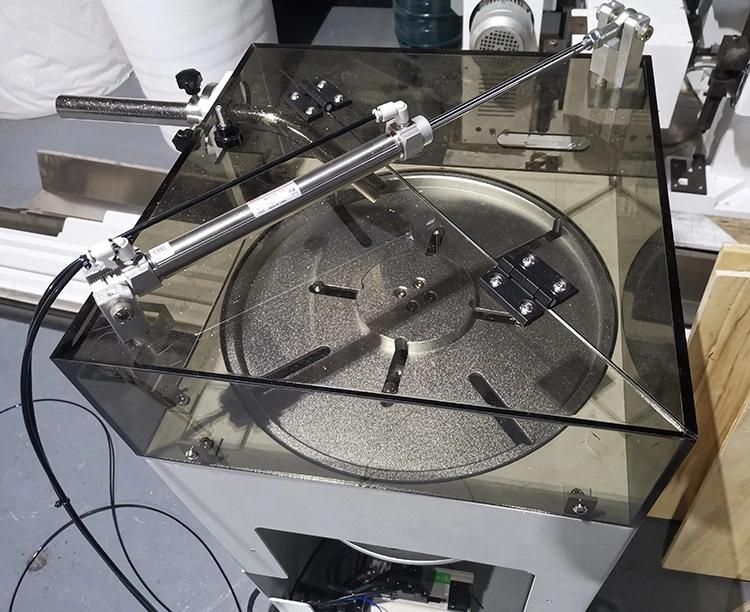

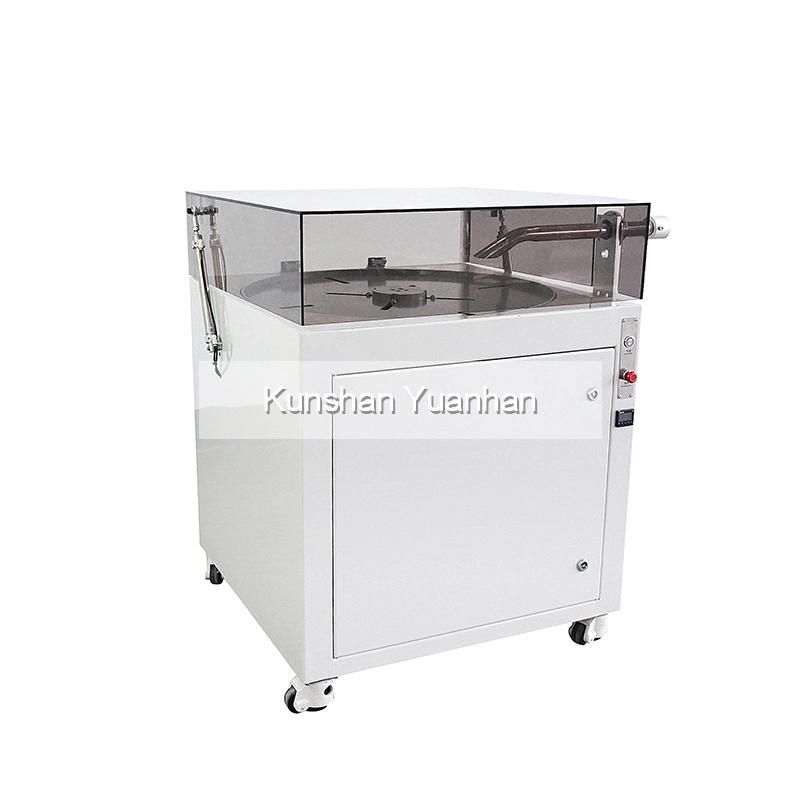

Automatic wire cable coiling take-up machine cable coiler system
YH-SXJ2 This automatic wire coiling machine can be used with our fully automatic wire cutting and stripping machine. It is suitable for winding long wires into big coils without additional collecting devices.
Features & Parameter

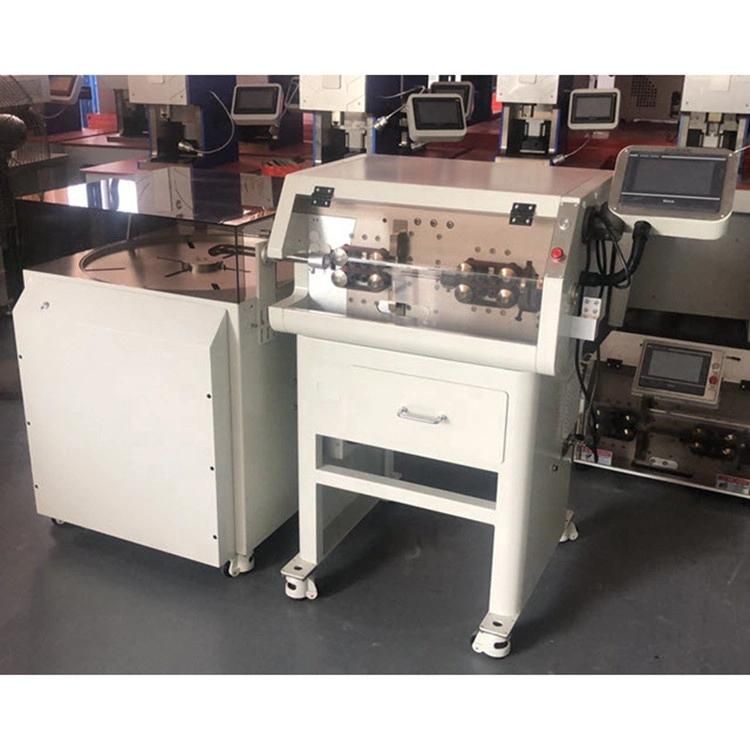

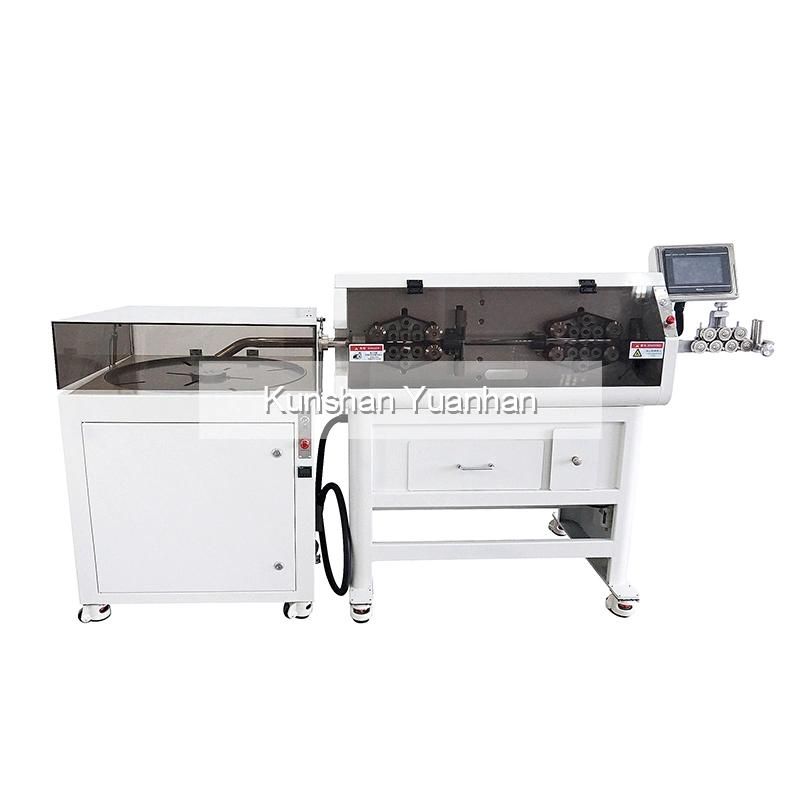

This wire coiling machine can be used with our fully automatic wire cutting and stripping machine.
It is suitable for winding long wires into big coils without additional collecting devices.
| Model | YH-SXJ2 |
| Function | wire and cable picking up and coil winding |
| Applicable wire | cables, PVC wires, etc. |
| Rolling diameter | 200-680mm |
| Rolling speed | 1.5M/s |
| Drive mode | Servo motor, adaptive with speed, digital adjustment of speed ratio. |
| Safety door | standard, pneumatic, automatic |
| Remarks | We provide custom service for special cables, and cable samples are required for testing. |
