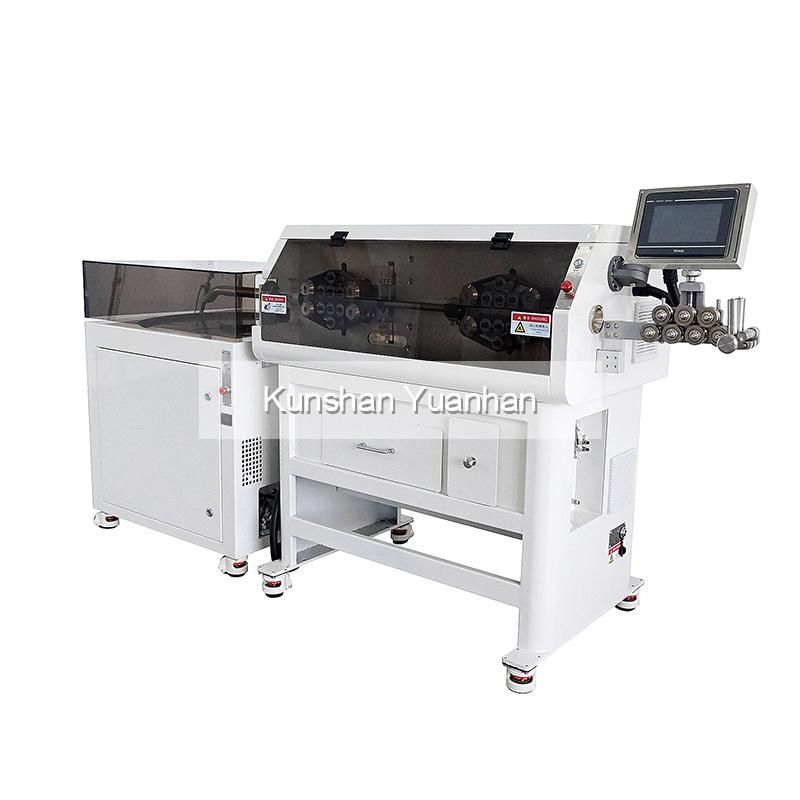

Automatic Wire Cable Collecting and Coiling Machine Match for Cable Cutting Stripping Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24th
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-8070, YH-SXJ2
  • Model：Yh-8070
  • Display Mode：7 Inch Real Color Touch Screen
  • Function：Wire Cutting and Stripping
  • Head Stripping：RV Cable Is up to 120mm, and Sheathed Wire Is up T
  • Tail Stripping：up to 260mm
  • Cable Types：PVC Cables, Sheathed Wires, etc.
  • Stripping Size：10-70 mm2
  • Cutting Length：0.1-99999.9mm
  • Cutting Tolerance：Within 0.002*L(L=Cutting Length)
  • Max Diameter：25
  • Capacity：1800 PCS,H
  • Coiling Machine Model：Yh-Sxj2
  • Rolling Diameter：200-680mm
  • Rolling Speed：1.5m,S
  • Drive Mode：Servo Motor, Adaptive with Speed, Digital Adjustme
  • Transport Package：Double-Layer Export Carton
  • Specification：530*530*400mm
  • Trademark：yuanhan
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：L=100mm, 3000-7000PCS,H

Description

Φ25Blades materialimported high speed steelCapacity1800 PCS/hDriving mode32 wheel drive (silent hybrid stepping motor, servo tool holder)Feeding methodFeeding with belt, the cable has no indentationRemarkThe machine can be customized for processing special cables, and the sample cable should be sent to us for test

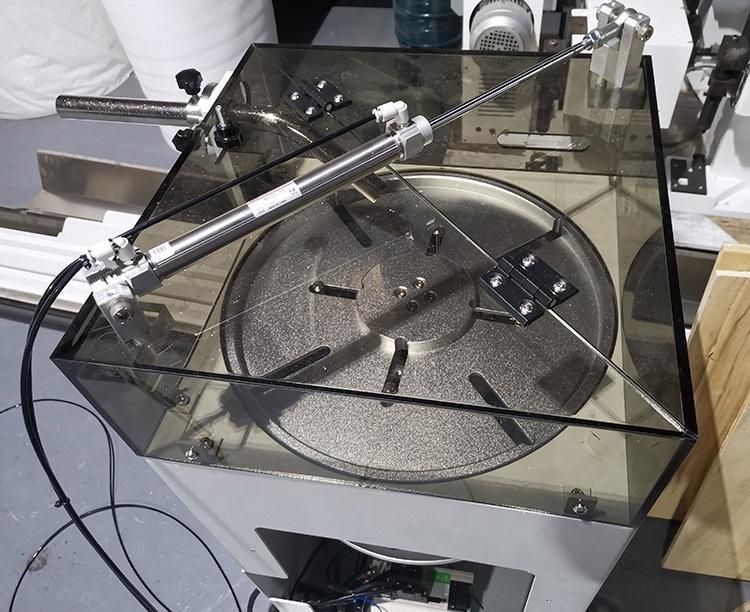

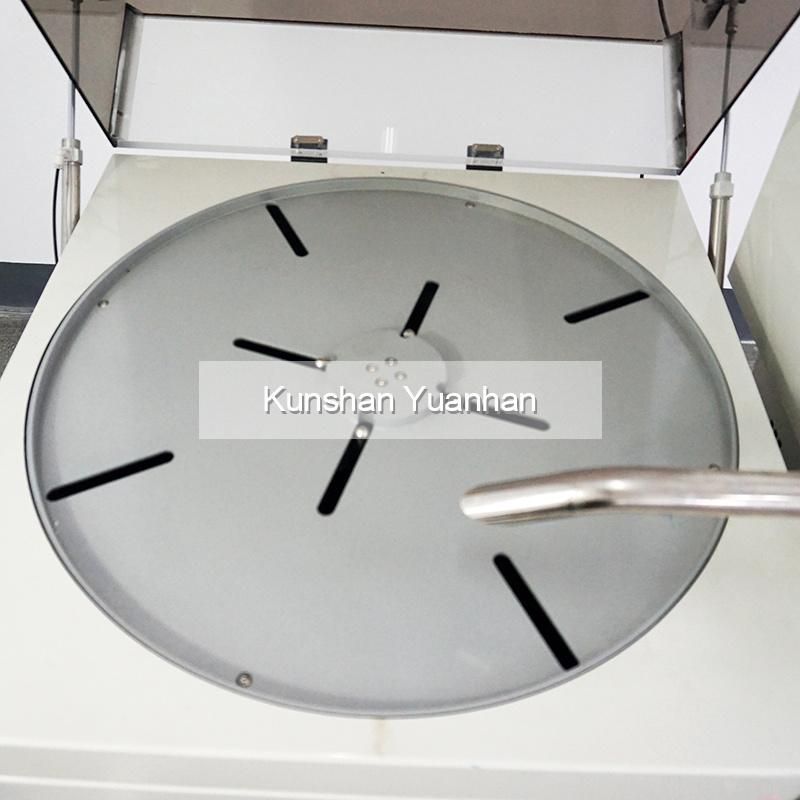

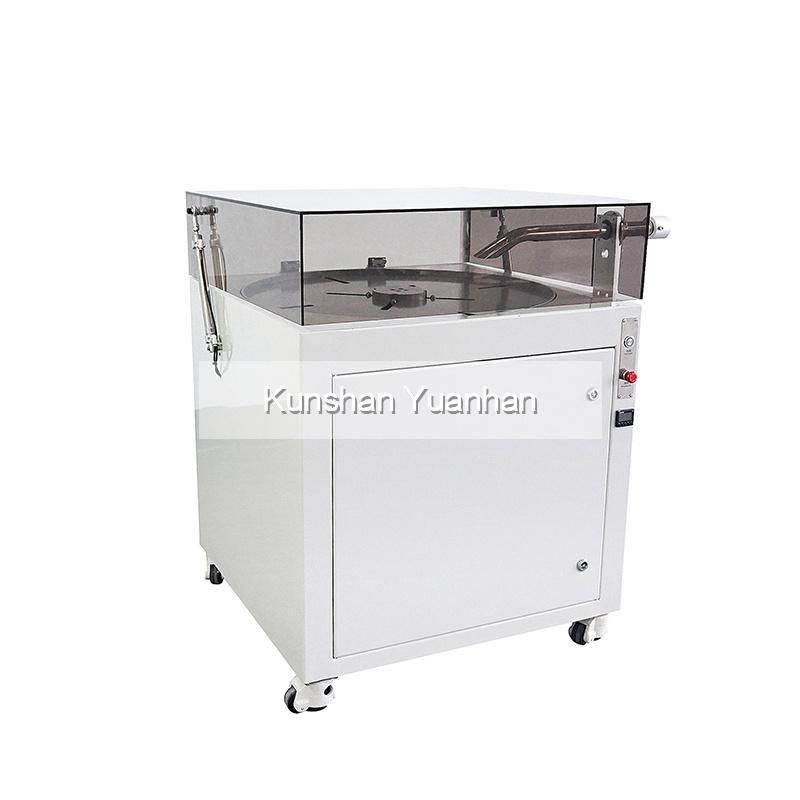

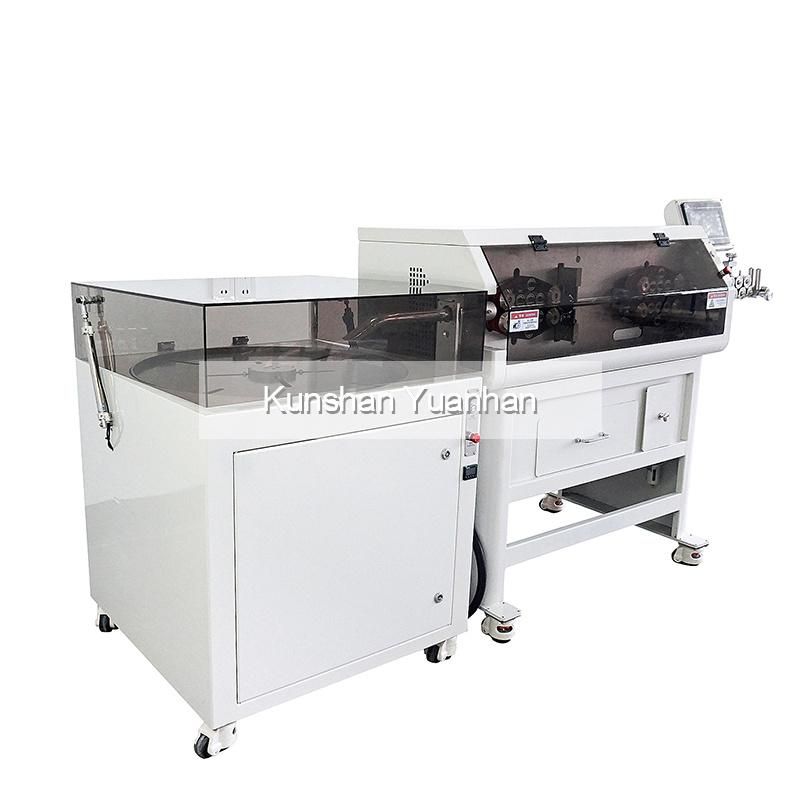

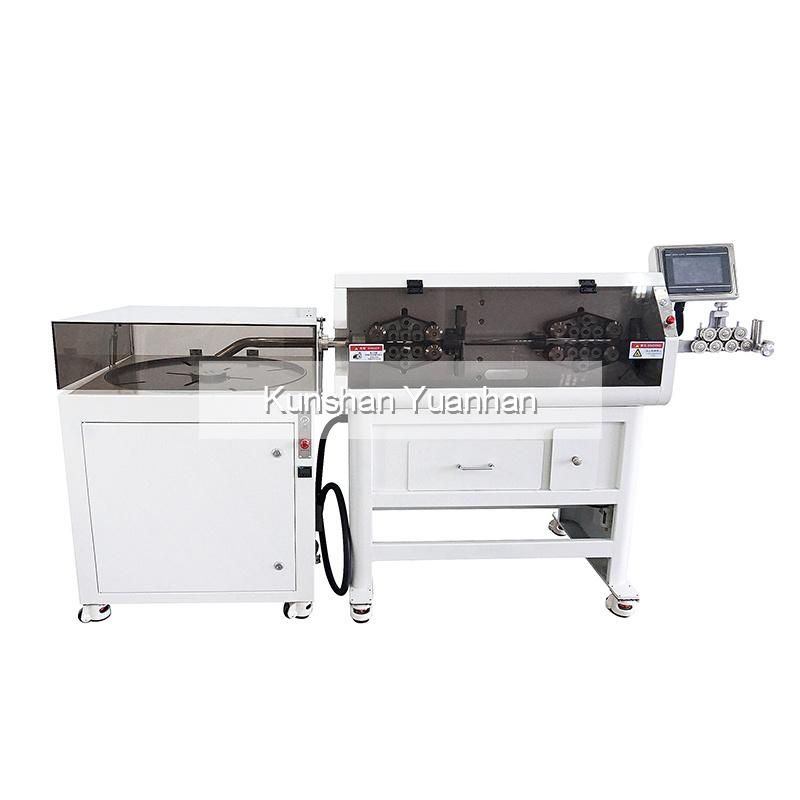

Automatic Cable Coiling Machine, Cable Winding Machine YH-SXJ2
YH-SXJ2 This automatic wire coiling machine can be used with our fully automatic wire cutting and stripping machine. It is suitable for winding long wires into big coils without additional collecting devices.

  • This wire coiling machine can be used with our fully automatic wire cutting and stripping machine.

  • It is suitable for winding long wires into big coils without additional collecting devices.

ModelYH-SXJ2
Functionwire and cable picking up and coil winding
Applicable wirecables, PVC wires, etc.
Rolling diameter200-680mm
Rolling speed1.5M/s
Drive modeServo motor, adaptive with speed, digital adjustment of speed ratio.
Safety doorstandard, pneumatic, automatic
RemarksWe provide custom service for special cables, and cable samples are required for testing.





Product Shows


Automatic Wire Cable Collecting and Coiling Machine Match for Cable Cutting Stripping MachineAutomatic Wire Cable Collecting and Coiling Machine Match for Cable Cutting Stripping MachineAutomatic Wire Cable Collecting and Coiling Machine Match for Cable Cutting Stripping MachineAutomatic Wire Cable Collecting and Coiling Machine Match for Cable Cutting Stripping Machine
Automatic Wire Cable Collecting and Coiling Machine Match for Cable Cutting Stripping MachineAutomatic Wire Cable Collecting and Coiling Machine Match for Cable Cutting Stripping MachineAutomatic Wire Cable Collecting and Coiling Machine Match for Cable Cutting Stripping MachineAutomatic Wire Cable Collecting and Coiling Machine Match for Cable Cutting Stripping MachineAutomatic Wire Cable Collecting and Coiling Machine Match for Cable Cutting Stripping Machine
