• Model NO.：PJL-1200
• Driven Type：Electric
• Transport Package：Poly Wood Case
• Specification：1200x1200
• Trademark：Daheng , OEM
• Origin：Guangzhou China
• HS Code：842489990
• Production Capacity：50PCS , Month

Basic Info.

Model NO. PJL-1200 Driven Type Electric Transport Package Poly Wood Case Specification 1200x1200 Trademark Daheng / OEM Origin Guangzhou China HS Code 842489990 Production Capacity 50PCS / Month

Product Description

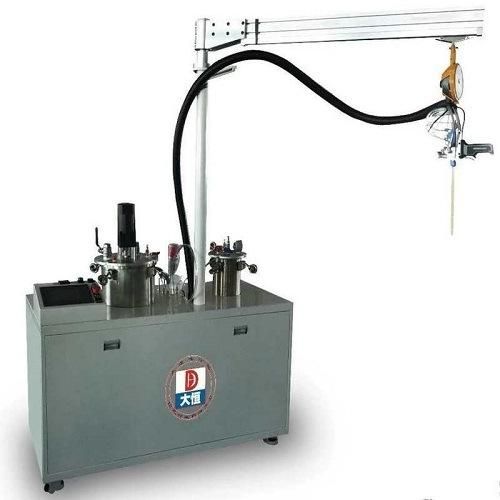

Dual RESINS DISPENSING WITH METER MIX machines

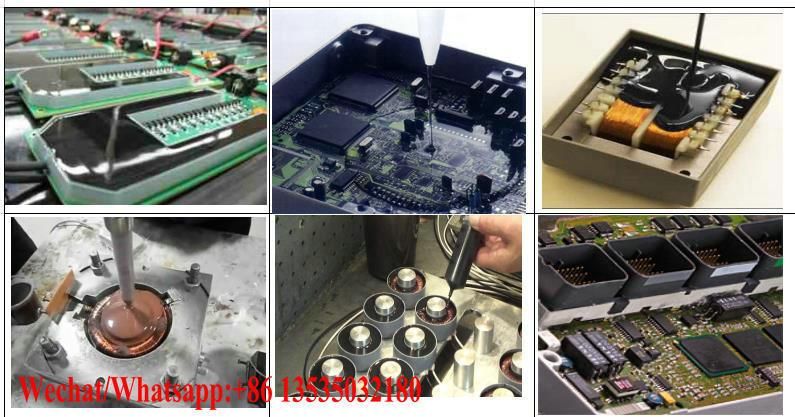

2. Application :





3. Machine parameter


Item No.:	PJL-1200
AB ratio:	100:100-100:10 adjustable
Movment Track:	Dot/Line/Arc/Circle
Speed:	500mm/s(Movement speed) 1-12ml/s(gluing out speed)
Accuracy:	±2%(potting) ±2%(mixing)
Input pressure:	0.5MPa-0.7MPa
Viscosity:	50cps-30000cps(Viscosity can be down via heating glue)
Operation:	Manual/Automatic
Meter Pump:	Gear pump/Screw pump/Double cylinder plunger pump
Flow Control:	Digital Input
Programming method:	Teaching programming
Automated control system:	PLC / touch screen (programming, modification, storage, etc.)
Glue control system:	AB glue suction valve to achieve independent operation of AB glue
Mixed mode:	dynamic static optional, instant mixing, easy to clean
Tank:	stainless steel tank (60L),(50L),(40L),(25L),(10L)optional
Power supply:	220V/50Hz/1200W ( Test under heating unction is not power on)

4. CharacteristicPJL-1500 Glue mixing machine
Features
Stainless steel table
Suitable for multiple scenes
Free to control, easy to learnPJL-1200 Standard dispensing machine
Multiple configuration, suitable for a variety of products
High versatility and high cost performance
Suitable for various products
Can be used with production lines
PJL-1000
Dimension: 1050*1000*1700mm
PJL-1500
Dimension: 1500*1000*1700MM
PJL-1200
Dimension: 1650*750*1900MM

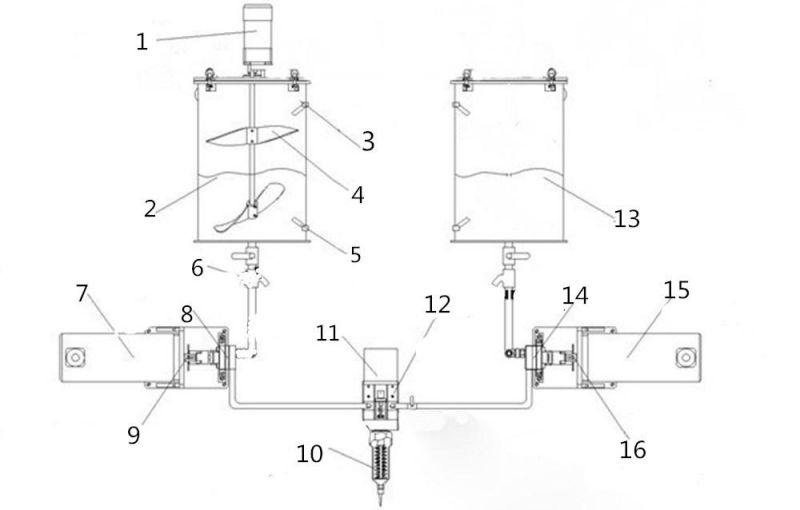

5. Working principle

Liquid A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
