Samsung/Hanwha Decan F2 SMT Pick and Place Machine, Chip Mounter

Shenzhen HTGD Intelligent Equipment Co., Ltd.

After-sales Service：Technical Support, Maintenance Services,
Condition：Used
Speed：High Speed
Precision：High Precision
Certification：CCC, RoHS, ISO, CE
Warranty：6 Months

Base Info

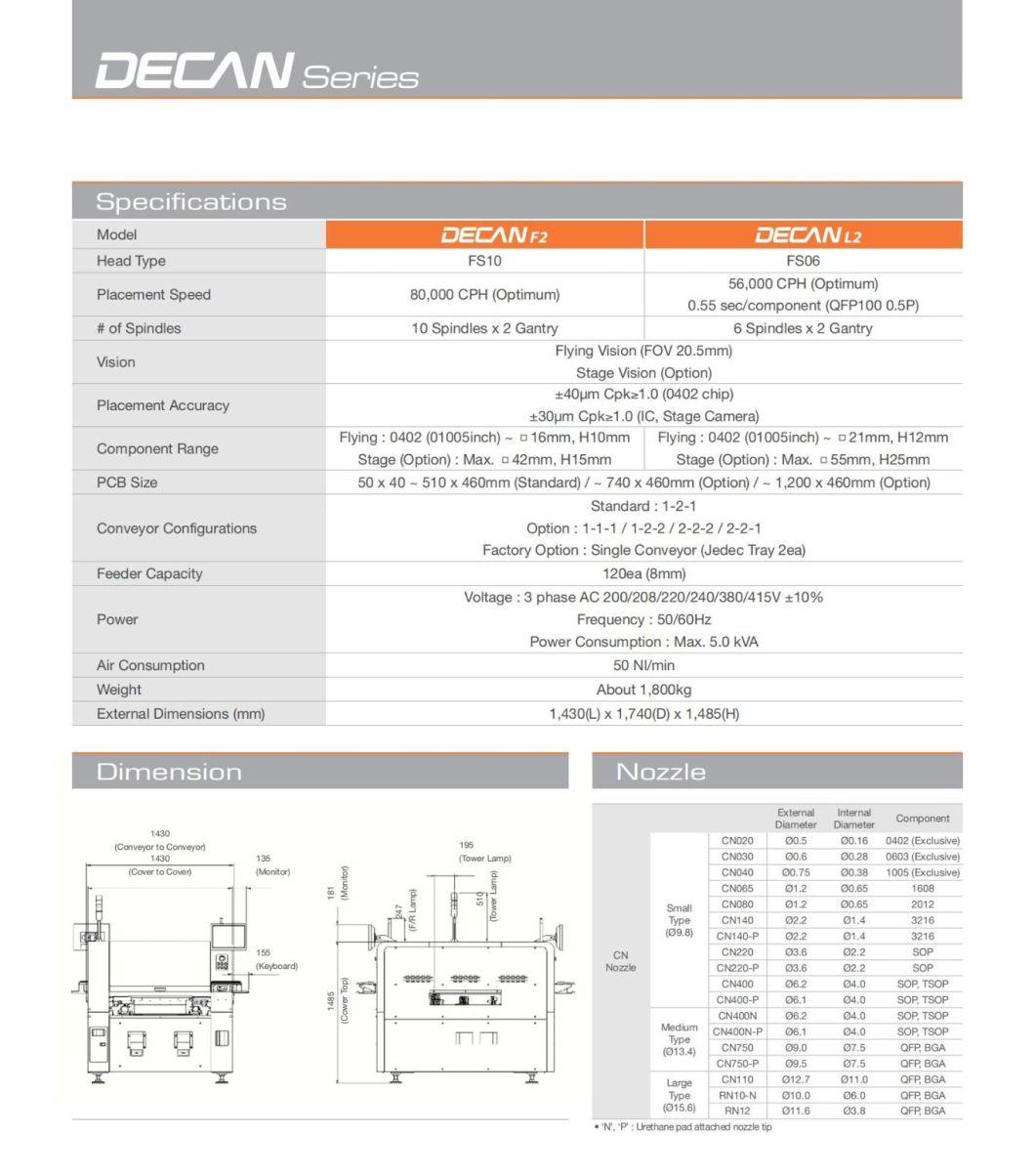

Model NO.：DECAN F2
Automatic Grade：Automatic
Type：High-speed Chip Mounter
Transport Package：Wooden Boxes
Specification：1410*1500*1540mm
Trademark：Hanwha
Origin：Korea
HS Code：8479909090
Production Capacity：50 Sets,Year

Description
