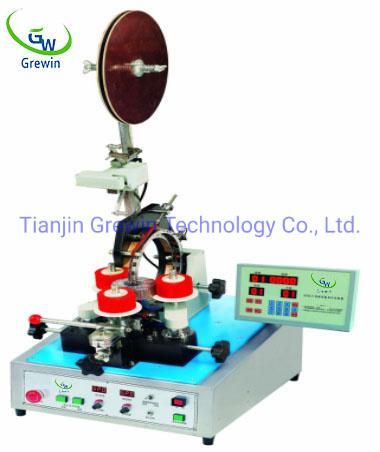

Big Digital Toroid Inductor Coil Winding & Taping Machine

Tianjin Grewin Technology Co., Ltd.
  • Max.Final Coil.O.D：130-650mm
  • Min.Final Coil.I.D：60mm

Base Info

  • Model NO.：GWTM-0418
  • Max.Finalcoil Height：150mm
  • Controller Storage Capacity Programs：29 Sets
  • Max.Taping Speed：120rpm
  • Tape Spacing：Proportional Linkage
  • Supply Voltage：AC 220V(50Hz)
  • Mechanical Dimensions：9000*600*1800
  • Weight：240kg
  • Certification：CE
  • Transport Package：Export Standard Carton or Customize Strong Pallet
  • Specification：GWTM-0418
  • Trademark：Grewin
  • Origin：China
  • HS Code：85043190
  • Production Capacity：100PCS

Description

Tape width15(20,25,30)Max.taping speed120rpmMax.final coil.O.Dφ130-650Tape spacingProportional linkageMin.final coil.I.Dφ60Supply voltageAC 220V(50Hz)Max.finalcoil height150Mechanical  dimensions9000×600×1800 Controller storage
capacity Programs29 (set)Weight240kgTape width10(8,12,15)Max.taping speed200rpmMax.final coil.O.Dφ60-200Tape spacingProportional linkageMin.final coil.I.Dφ30Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550*500*1100Controller storage
capacity Programs29 (set)Weight100kgGWTM-0118 (taping machine/Mag.OD.400)
(unit): mm

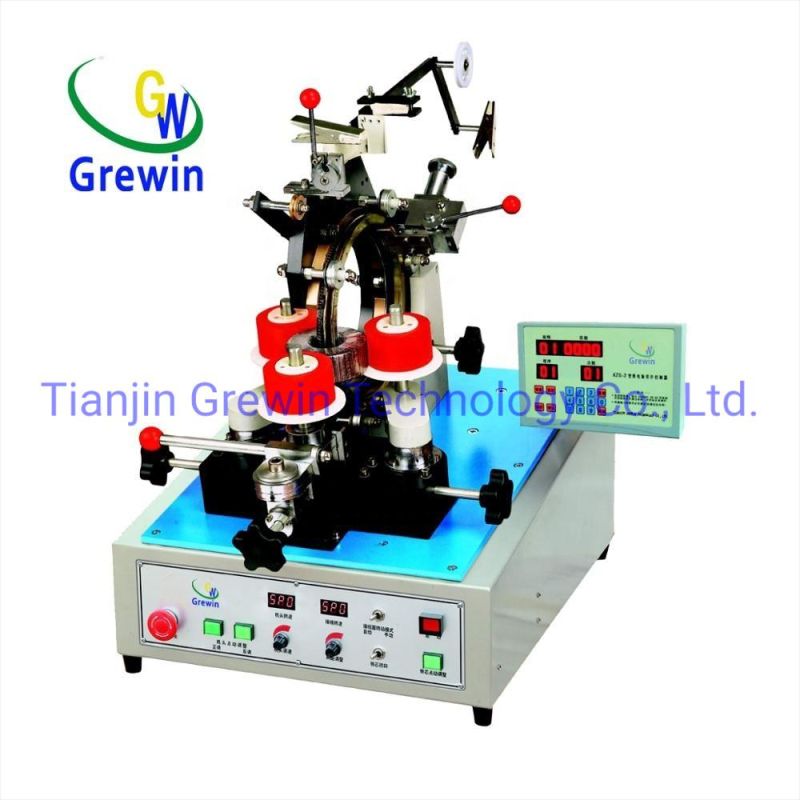

2.GWTM-0218  Gear type automatic wrapping insulating tape machine

Big Digital Toroid Inductor Coil Winding & Taping Machine
 Tape width12(8,10,15)Max.taping speed250rpmMax.final coil.O.Dφ50-200Tape spacingProportional linkageMin.final coil.I.Dφ35Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550×500×1100Controller storage
capacity Programs29 (set)Weight100kgGWTM-0218 (taping machine/Mag.OD.400)
(unit): mm
3.GWM-0319B Gear type toroidal coil winding machine

Big Digital Toroid Inductor Coil Winding & Taping Machine
 Wire diameter0.50-1.30Max.winding speed200rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ25Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550*500*750Controller storage
capacity Programs29 (set)Weight94kgGWM-0319B (winding machine/Mag.OD.400)
(unit): mm

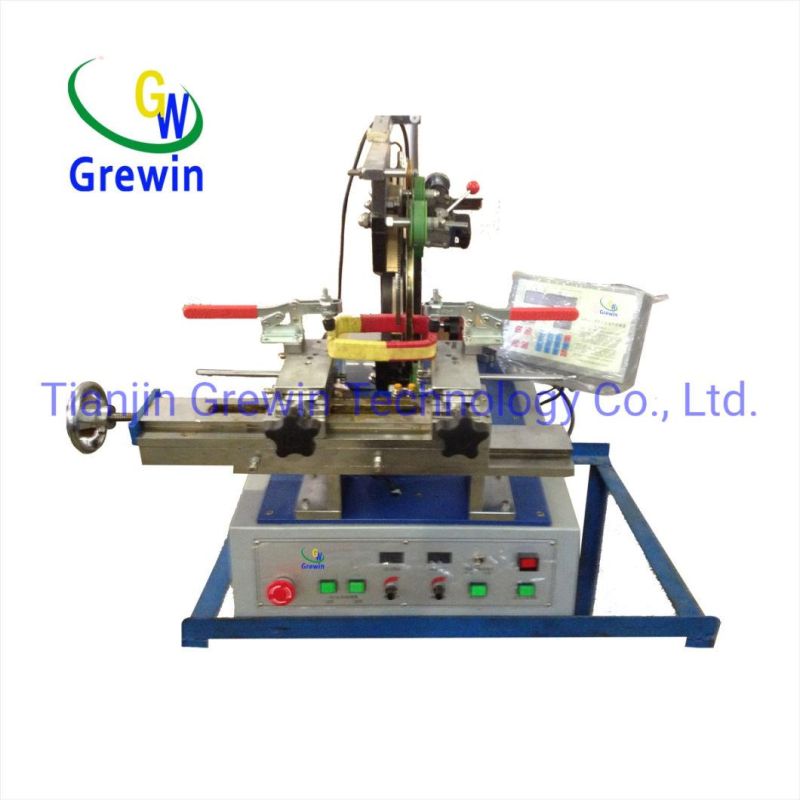

4.GW0950 Mobile rectangular coil winding machine
Big Digital Toroid Inductor Coil Winding & Taping MachineWire diameter0.70-2.00Max.winding speed200rpmMax.final coil.O.Dφ65-500,55Wire spacingProportional linkageMin.final coil.I.Dφ50-430,45Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions1000*950*780Controller storage
capacity Programs29 (set)Weight110kgGW0950(winding machine/Mag.OD.400)
(unit): mm
 How to select the best suited automatic toroid taping machine for your toroid coil?
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.
