• Model NO.：GW-9730
• Key Word4：CNC Transformer Winding Machine
• Key Word5：Fully Automatic Transformer Coil Winding Machine
• Key Word6：Small Transformer Winding Machine
• Transport Package：Export Standard Carton or Customize Strong Pallet
• Specification：CE
• Trademark：Grewin
• Origin：China
• HS Code：85043190
• Production Capacity：100PCS

Basic Info.

Model NO. GW-9730 Key Word4 CNC Transformer Winding Machine Key Word5 Fully Automatic Transformer Coil Winding Machine Key Word6 Small Transformer Winding Machine Transport Package Export Standard Carton or Customize Strong Pallet Specification CE Trademark Grewin Origin China HS Code 85043190 Production Capacity 100PCS

Product Description

Product Description:

Automatic toroidal transformer winding machine adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-taping machine. it is used for the insulation tape wrapping machine on the toroidal core and windings. it is best suited to toroidal inductor, toroidal transformer, toroidal current transformer, toroidal coil, toroid choke coil, power inductors, power magnetics, UPS inductor, converter inductors, heavy toroidal core,etc.

Specification

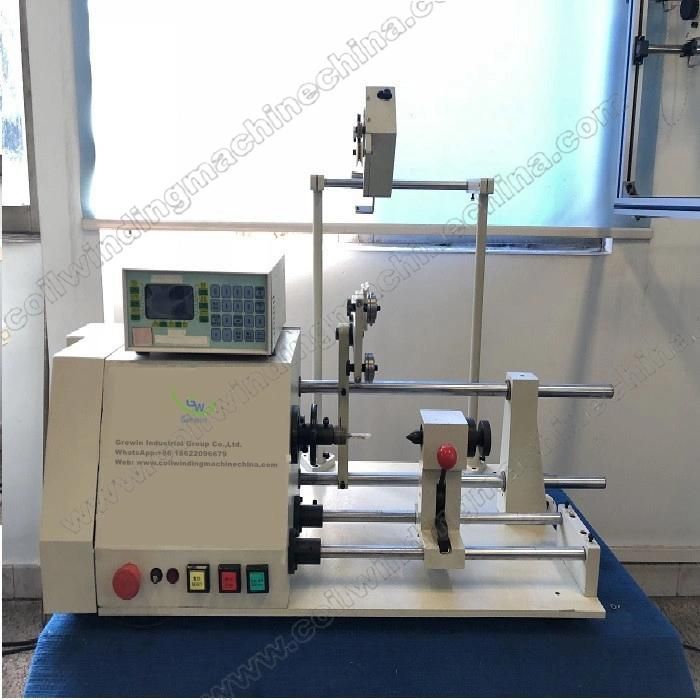

GW-9730 Stepping Motor Winding Machine


SPECIFICATION:

Spindles	1	Max Speed	6000rpm
Wire diameter	0.03-1.2mm	Memory	99 Sequences
Main Motor	1/8HP DC Motor	Power Source	AC 220V/110V±10%,50/60MHZ

FEATURES:
Programmable coil winding machine has microprocessor design ,easy for program-setting handing.
More convenience by using foot-switch.
Memory capacity accommodates 999 sequences of parameters with off-power memory retention.
Wire tensioner with magnetic braking provides constant wire tension.
Stepping Motor Winding Machine is easy to use VR-switch to adjust the speed of winding.
Automatic wire clamp and cut system, layer winding, material unloading and cleaning of the tool during each cycle.
Stepping Motor Winding Machine through programmable pitch control enabling precise layer winding.

ADVANTAGES:
Stepping Motor Winding Machines' accessories general, easy to exchange
CE certification
The technicians are experienced
Warranty period 1 year
A short period of delivery:10 days after receipt of payment
Free replacement of mainframe accessories  Related Products:

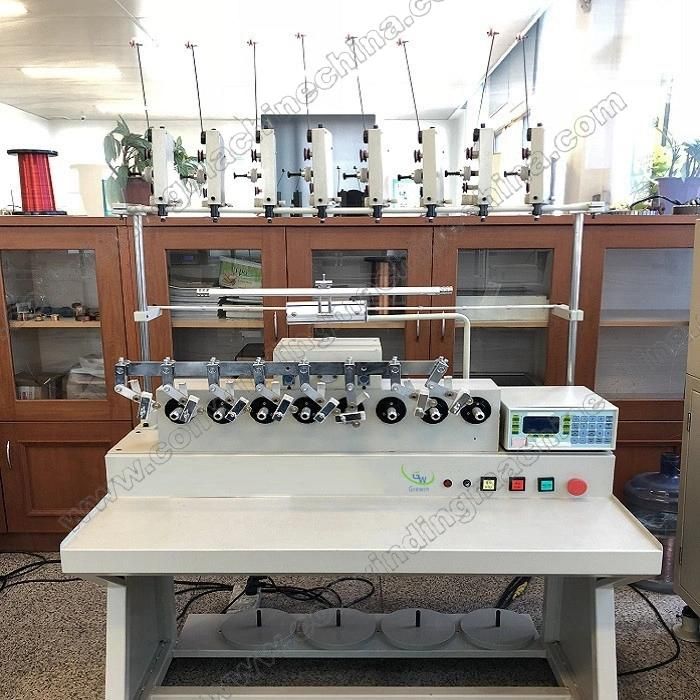

ACGW28-80 High Speed Winding Machine

Specifications:

Spindle number	8
Wire size range	0.03-0.2mm
Loop diameter	56mm
Max wire distance	9.99mm
Winder width	60mm
Spindle pitch	70mm
Max speed	0-10000RPM
Spindle motor	Three Phase Motor+AC Drive
Winder motor	Stepping motor
Input power	220V 50HZ/60HZ
Machine size	1080×800×1100mm
Package size	1180×890×1130mm
Net weight	167kg
Gross weight	204kg

Features:
High Speed Winding Machine is to deal with the small coil products and transformer industry demand of high production to study and production of high speed winding machine, with high speed, low sound, winding stable.
Meanwhile winding 8 group products, and time efficient. This machine design of 32 bit controller chip, It'll be faster and higher reliability.
In Chinese and English display,High Speed Winding Machine is easy to operation,winding data retention after power failure, not to discarded products.
All the parts for High Speed Winding Machine are imported prats,such as:Japan Bearing (NSK,NTN),Japan BANDO belt ,U.S.A GATES belt,Taiwan Ball screw (TBI),Taiwan AC Drive and so on.
Synchronous motor coil,Solenoid valve coil , Water pump coil , Clock coil and any other special coils.


Advantages:
High Speed Winding Machine is using the LCD latest synchronization with the coupling cable controller.
With self detection, including setting error, speed tracking and velocity calibration optional lifting speed of main spindle
To start the operation speed of the spindle motor to climb time can decide for ourselves, to guarantee the product quality of winding.

GWCM-1901 Semi auto voice coil winder

Specifications

Spindle number	1
Wire size range	0.02-1.2mm
Winding width	0-110mm
The max coil diameter	150mm
Max speed	6000 RPM
Spindle motor	Brushless DC motor
Winder motor	Stepping motor
Machine power	220V  50HZ
Machine Size	750*400*450mm
Package size	1090×620×620mm
Net weight	72kg

Features:
Multi-function micro computer design,easy data setting,shutdown can save data,and have power down protection function.
0-999sets of step setting capacity, can easily set fonward and reverse, cross slot and density winding work.
The starting point and width can be adjusted by teaching input and the data setting is accurate.
The surface paint of the Semi auto voice coil winder is baked at high temperature
Semi auto voice coil winder is easy and fast to replacement of winding fixture.
Brushless motor is used with low noise and clean sanitation.
Semi auto voice coil winder can cary automatic alcohol drop, alcohol flow can be controlled.
Equipped with foot switch device to improve working efficiency.
Error alarm function, which can display error information and prompt sound.
Application scope:horn voice coil,alcohol self-adhesive wire, hollow coi,. hot coiling coil,etc.


Advantages:
Easy and fast to replacement of winding fixture.
Brushless motor is used with low noise and clean sanitation.
Semi auto voice coil winder can cary automatic alcohol drop, alcohol flow can be controlled.
Equipped with foot switch device to improve working efficiency.
Warranty period 1 year
The technicians are experienced

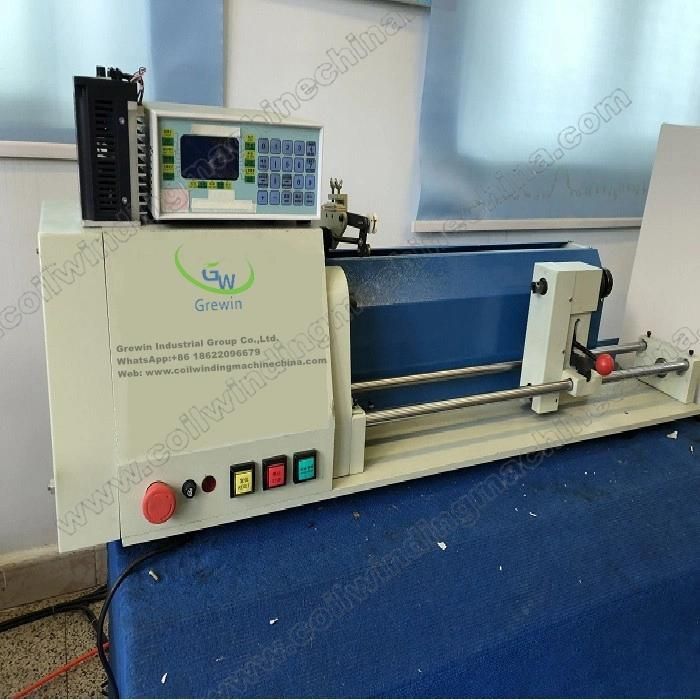

ACGW23-1B Fishing line winding machine

Specifications

Spindle number	1
Wire size range	0.05-1.0mm
Loop diameter	140mm
Max wire distance	9.9mm
Winder width	600mm,1500mm
Max. speed	0-1500RPM
Spindle motor	Three Phase motor+AC Drivers
Winder motor	stepping motor
Max. winder diameter	80mm
Input power	220V  50HZ/60HZ
Machine size	1130×450×450mm
Package size	1000×830×1110mm
Net weight	95kg
Gross weight	151kg

ATWGW22-1 Speaker Voice coil winding machine

Specifications

Spindle number	1
Wire size range	0.3-2.0mm
Loop diameter	240mm
The max wire spacing	9.99mm
Winder width	180mm
Max speed	0-2200 RPM
Spindle motor	Three Phase motor+AC Drives
Winder motor	Stepping motor
Input power	220V  50HZ/60HZ
Machine Size	1000×520×430mm
Package size	1090×620×620mm
Net weight	98kg
Gross weight	143kg

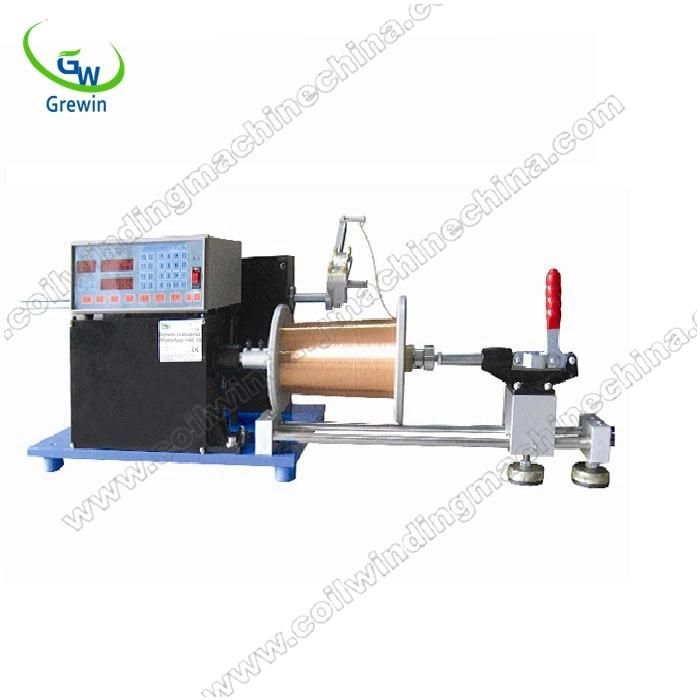

GW-9750 Digital Programmable Wire Coil Winding Machine


SPECIFICATION:

Model	GW-9750	Spindle	1
Wire diameter	0.1-0.5	Spindle motor	500W/DC
Wire spacing	0.001-9.999MM	Max. speed	900 RPM
Spreading Motor	Stepper motor	Size	400*450*1100
Power supply	AC 220V 50/60HZ	Weight	45

FEATURES:
The controller of Digital Programmable Wire Coil Winding Machine adopts microcomputer control, data setting is easy.
Setting winding direction ,brake time for each step independently
More convenience by using foot-switch.
Programmable coil winding machine is easy to use VR-switch to adjust the speed of winding.
Optional release agent dispensing to aid removal of the coil from the tooling.
Fine programmable pitch control enabling precise layer winding.
The tail seat adopts cylinder type control, the operation is more convenient and quick.


ADVANTAGES:
Enquiries can be quoted in 1 day
The storage ring has good material and long service life
Stable machine performance
Communicate parameters in a timely and thoughtful manner
Complete specifications and data
Easy maintenance of Digital Programmable Wire Coil Winding Machine

How to select the best suited automatic toroid taping machine for your toroid coil?
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.

Packaging Information:
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.) Packaging: Packaging material: Carton/Wooden case with foam inside.


Why Choose Us
1.Environmental protection, low noise and high efficiency;
2.The storage capacity can be super large.
3.You can choose different row direction, winding angle and sectional angle.
4.Photoelectric induction switch technology has high accuracy and accurate number of rings.
5.Stepper motor wiring, spacing can be accurately controlled;
6.Products that can be tetragonal.


1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Service tenet Provide you the best service with "fast + satisfactory + safe".
Warranty period:
12 months long after the user received the product.

Warranty items:
Only for abnormal breakdown caused by the machine design or manufacture defect,free repair and accessory will be provided.
Technology service ability:
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown
problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell:
In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English
manual, video, guiding on line.
Use instruction:
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be
taken care. All done help to extend the use period.
