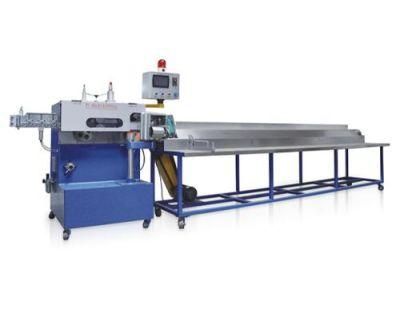

Automatic High Speed Wire Cutting Machine

Dongguan Newtopp Electrical Machinery Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：CCC, UL, ISO, CE
  • Warranty：12 Months
  • Screw：Single-Screw
  • Transport Package：Standard Shipping Packing

Base Info

  • Specification：XJ40
  • Trademark：Newtopp
  • Origin：China
  • HS Code：8477209000
  • Production Capacity：200sets,Year

Description

Basic Info.

Specification XJ40 Trademark Newtopp Origin China HS Code 8477209000 Production Capacity 200sets/Year

Product Description

Application field
Apply to all kinds of wire cable length fix cutting

Machien feature:The machine can be equipped with large-axis pay-offs and cut wire independently.Also can be linkage with extrusion production line to cut the wire together.Fast cutting speed and excellent cut ability.This machine mainly adopted the principle of outside coating extruder,especially to HDMI wire,will not damage wire interior structure during the cutting process.Cutting power adpoted servo motor drive with servo controller,make the cutting length more precise.

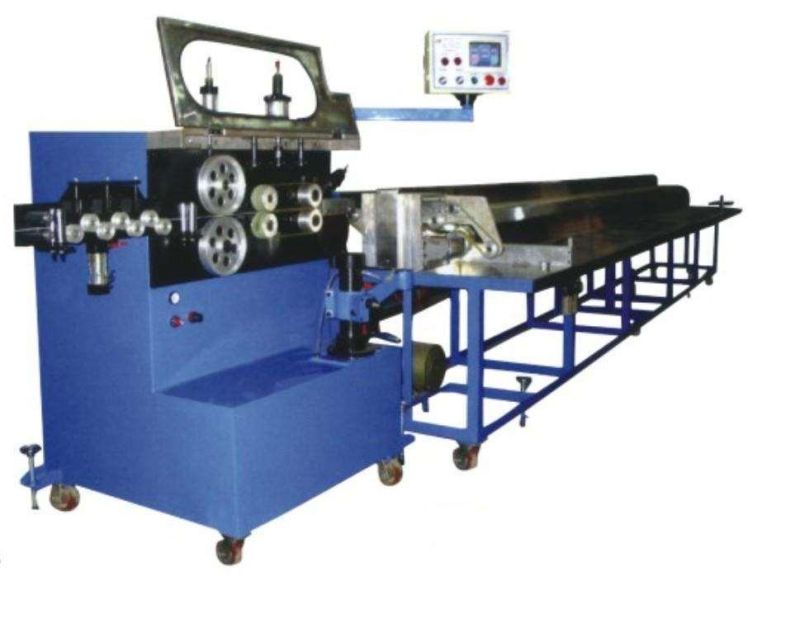

Automatic High Speed Wire Cutting Machine


Machine technical feature1.Cutting speed:150-180M/min2.Cutting ability:Round wire:Φ4.0-16mm  Flat wire:2*4.5-4.0*113.Cutting length:Min 600m,Max no limited4.Cutting precise:±2mm5.Take-ups type:Flat belt draw forth6.Pay-offs type:Big-axis active pay-offs/Big-axis passsive pay-offs/Linkage running with extruder7.Machine power:Main engine:2HP Delivery belt:1HP8.Delivery belt:5M


Machine parts
No.Parts name&Specs.Qty
1Strenghten device1set
2Meter counting device1set
3Belt drive system1set
4Wire cutting device1set
5Wire feeding device1set
6Belt dragging device1set
7Wire push device1set
85 meters wire transfer station 1set


Main parts brand
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens


Our Service
 Pre-Sales Service                          After-Sales Service
* Inquiry and consulting support.     * Training how to install and how to use the machine
* Customized design support.          * Engineers available to service machinery overseas.
* View our Factory.
