• Trademark：Newtopp
• Origin：China
• HS Code：8477209000
• Production Capacity：200sets,Year

Basic Info.

Trademark Newtopp Origin China HS Code 8477209000 Production Capacity 200sets/Year

Product Description

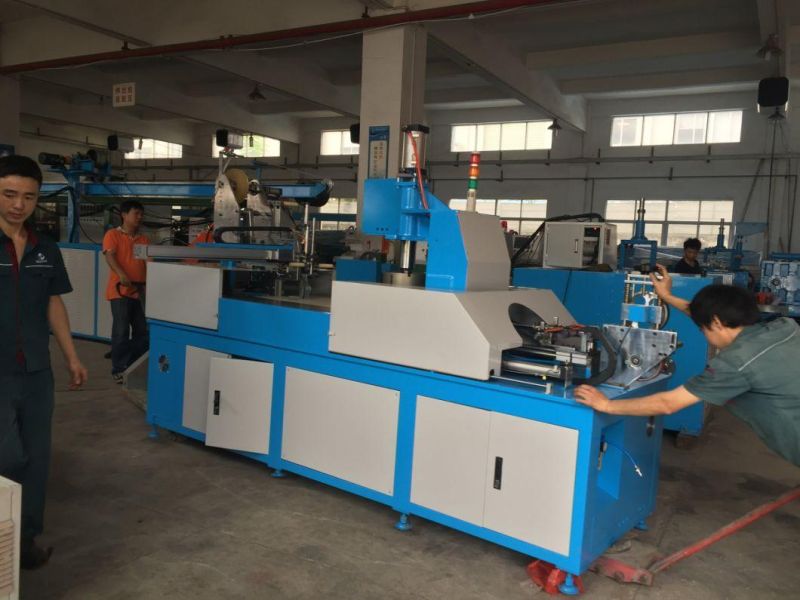

Application field
Used for all kinds of wire&cable automatic coiling&packing.

Machine feature:
The extruder or pay-off can be received directly.Touch screen interface(man-machine interface) can make you operation machine easily.
The servo motor rotation system of the machine can allow the action of wire arrangement more harmonious.
When problems are discovered,the machine will detect the error automatically and then issue warning alarm to inform the operator.
Microcomputer memory can store 99 different kinds of coil specifications.When you input the specification of the product to the mircrocomputer memory and if you need to change it,it only needs to read the format materials which have been stored without adjusting the machine structure,which makes the operation simple and convenient.




Machine technical feature

Model	Height (mm)	Outer diameter (mm)	Inner diameter (mm)	Wire specification (mm)	Taping material	Average coil output speed
XJ1046	60-80	240-460	140-200	3-10	PVC	2-2.5coil/min
XJ1860	80-180	250-600	180-250	4-15	PVC	1-1.5coil/min

Machine parts

No.	Parts name&Specs.	Qty
1	Meter counter	1set
2	Feeding wire	1set
3	Gate-type cutter	1set
4	Coiling head and wrapping wire spool	1set
5	Traversing system	1set
6	Hold wire mechanism	1set

Main parts brand
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens


Our Service
 Pre-Sales Service                          After-Sales Service
* Inquiry and consulting support.     * Training how to install and how to use the machine
* Customized design support.          * Engineers available to service machinery overseas.
* View our Factory.

About us

Company introduction


Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which professional in design and manufacture high-end wire and cable equipment,manily have the whole factory production line solution of Civil construction/power wire&cable,whole factory production line solution of Lan cable cat8/5E/6/6A/7,whole factory production line solution of HDMI,USB,SATA,RG59,6 etc. High frequency wire and cable,equipment include the copper bunching machine,teflon extrusion machine,insulation extrusion machine, chemical foaming extrusion machine,physical foaming extrusion machine,jacket sheath extrusion machine,planetary type cage twisting/stranding machine, numerical control type double layers/multi layers taping machine,cantilever type single twisting/stranding machine,Lan cable back-twist pair twisting/stranding machine etc. For more information please log in our official website http://dgnewtopp.en.made-in-china.com or feel free to contact us directly.

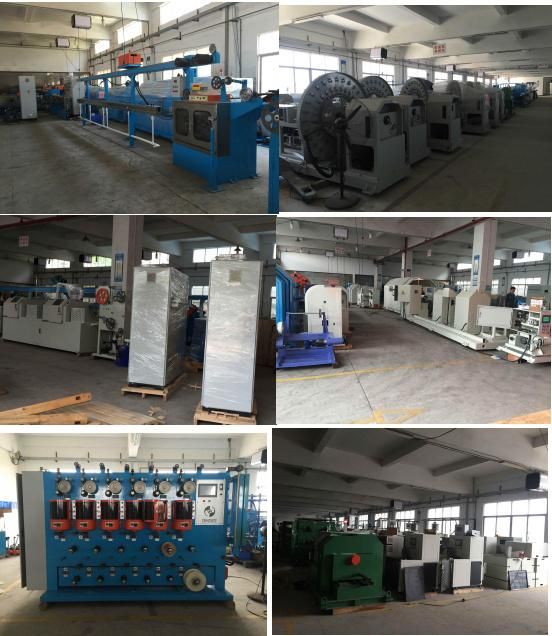

Our products

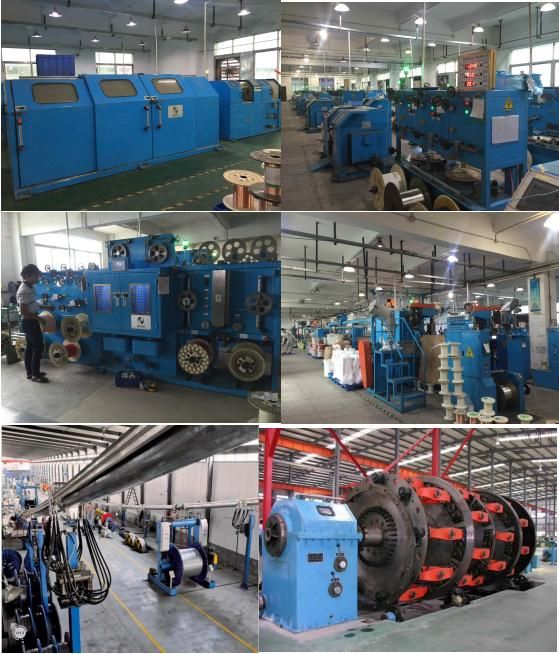

Products in client site
