• Model NO.：T200C+
• Weight：760kg
• Power Supply：220V, 50Hz, 4.5kw
• Precision：High Precision
• Heating System：Electric
• Customized：Non-Customized
• Transport Package：Plywood Case or Other Packing
• Specification：CE
• Trademark：TORCH
• Origin：Beijing, China
• HS Code：8514109000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. T200C+ Weight 760kg Power Supply 220V, 50Hz, 4.5kw Precision High Precision Heating System Electric Customized Non-Customized Transport Package Plywood Case or Other Packing Specification CE Trademark TORCH Origin Beijing, China HS Code 8514109000 Production Capacity 10 Sets/Month

Product Description

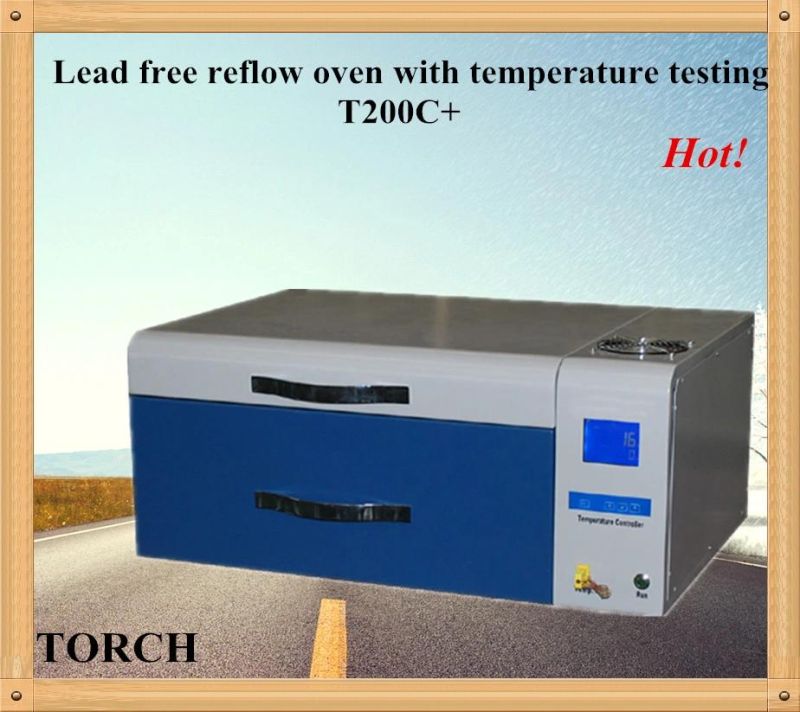

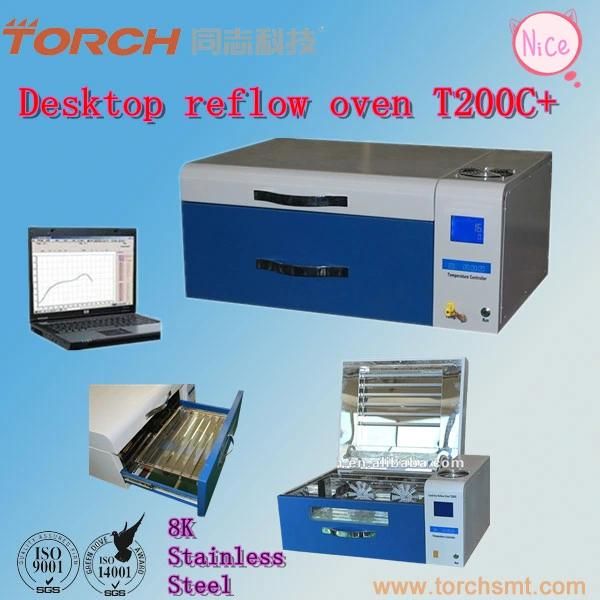

Lead free desk mini  reflow oven with temperature testing function
Model:T200C+

Product Description:
The lead-free reflow oven T200C+ = Reflow oven T200C + temperature curve tester.
T200C+ does not only have a lead free welding function, but also has a temperature measurement function.

Standout

1. 1.5mm cold-roll steel sheet, impact molding formed for one time
2. TORCH patent of automatic door control technology on tray
3. 8K mirror 314 stainless steel as a furnace
4. Unique hot air cycling system in the furnace
5. Heating system uses TORCH's heating technology
6. It uses the 6th generation of multi-channel high precision temperature control system
7. LED displayer temp control interface, digital measuring scale shows the power output
8. America Omega sensor as temperature testing system, which is the only one in China
9. Waste smoke filtration system is used on TORCH reflow oven
10. Appearance, color
11. 2 suits of independent protection device on the electric control system
12. It firstly developed professional temperature control software for desktop reflow oven. The small oven has stepped into the computer-control era. TORCH, as a famous brand of the Desk Reflow
13. Ovens enjoys a good reputation in China and overseas markets. It owns core technology in SMT industries that other suppliers do not have.
14. Intelligent software system of desktop reflow oven
15. The software can satisfy a multi operation system and a multi language environment of Chinese and English
16. Remote control function
17. Realize RS485 communication and USD interface
18. High temperature protection function
19. Configure a cool-down system on the oven
20. 4 layers of industrial package case
21. The is stainless steel switch on operation panel
22. It is the first Desktop Nitrogen reflow oven in the SMT industry, has been really well sold for 6 years.



Parameters:


Temperature control segments	40 segments .The segments can be set in computer according to the actual requirement.
Temperature-zone numbers	Single-zone and multi-segment
Temperature control system	PC control system, SSR non-contact output
Temperature accuracy	±2°C
Warm-up time	3min
Temperature range	Room-temperature -360°C
Heating supply	Infrared ray + Hot air convection
Effective working table area	360mm x 230mm (less than A4)
Welding time	3min±1min
Temperature curve	It can be set, adjusted and tested according to the actual requirement.
Cooling system	Transverse flow equal cooling
Rated voltage	AC single-phase, 220V; 50Hz
Rated power	3.8KW
Mean power	1.6kw
Weight	39kg
Dimensions	Length*width*height 700*460*310mm
