500/630 Triple Stranding Machine for Australia/ Triple Twister with Back Twist
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, UL, ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Mould Life：>1,000,000 Shots
Base Info
- Model NO.：XJ500,630
- Type：Planetary Type Stranding Machine
- Voltage：220-660V or Other Voltage
- Wire Specification：AWG40-AWG22
- Transport Package：Standard Shipping Packing
- Trademark：NEWTOPP
- Origin：China
- HS Code：8479400000
- Production Capacity：200 Sets,Year
Description
Basic Info.
Model NO. XJ500/630 Type Planetary Type Stranding Machine Voltage 220-660V or Other Voltage Wire Specification AWG40-AWG22 Transport Package Standard Shipping Packing Trademark NEWTOPP Origin China HS Code 8479400000 Production Capacity 200 Sets/YearProduct Description
Application field:Suitable for CAT5E/CAT6/CAT7 Lan cables pair twisting.
Products feature:
1.Triple pitches design,1.5 times speed to traditional double twisting machine when with 33% back twisting rate.2.Servo electronic pitch,touch screen setting,PLC controller,accuracy within +/-2%3.Active take up,tension stable from empty to full reel.
Machine parts:
1.Active pay-off stand
2.Single pitch zero twist winch
3.Double pitch pair twister
4.Electrical control system

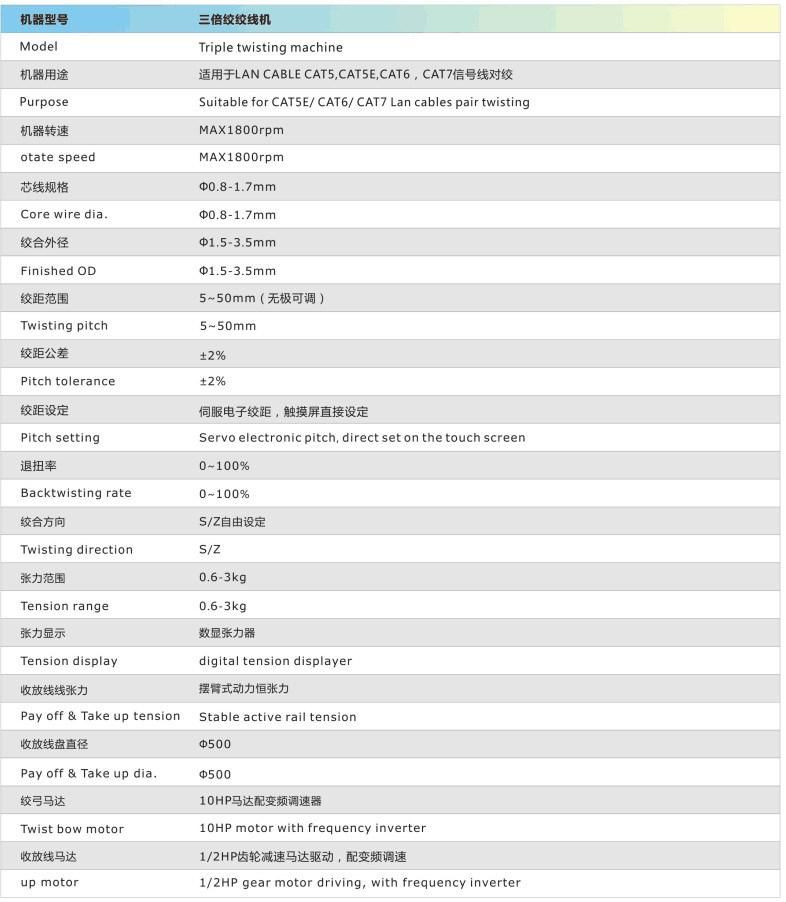

Technical parameters
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, and how to use the machine.
* Customized design support. * Engineers available to service machinery overseas.
* View our Factory.

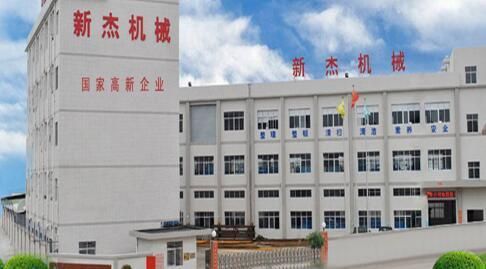

About us
Newtopp electrical machinery Co., Ltd. is anational high&new technology enterprise. It located in Humen Town, Dongguan city, and through ISO9001 quality certification and IS014001 environmental management system certification.
Our company is professional in design and manufacture high-end wire and cable equipment, mainly products included: the copper bunching machine, teflon extrusion machine, insulation extrusion machine, chemical foaming extrusion machine, physical foaming extrusion machine, jacket sheath extrusion machine, planetary type cage twisting/stranding machine, Numerical control type double layers / multi layer taping machine, Cantilever type single twisting/stranding machine, lan cable back-twist pair twisting/stranding machine etc.
Trade exhibition
Certification and Patent
Contact us
Contact: Owen Zeng
DongGuan Newtopp Electrical Machinery Co.,Ltd.
http://dgnewtopp.en.made-in-china.com
Add.:No.286, Huaide Road, Humen Town,Dongguan City, Guangdong Province,China.
