• Model NO.：XJ630
• Type：Double Stranding Machine
• Voltage：220-660V or Other Voltage
• Wire Specification：AWG40-AWG22
• Transport Package：Standard Shipping Packing
• Specification：XJ630
• Trademark：NEWTOPP
• Origin：China
• Production Capacity：500sets,Year

Basic Info.

Model NO. XJ630 Type Double Stranding Machine Voltage 220-660V or Other Voltage Wire Specification AWG40-AWG22 Transport Package Standard Shipping Packing Specification XJ630 Trademark NEWTOPP Origin China Production Capacity 500sets/Year

Product Description

Application field:


Used for bare copper wire,tinned wire,enameled wire twisted.



Products feature:


1.Maximum spindle speed is 3000-4500rpm.
2.Automatic tension control: this machine can automatic track and adjust the tension of receiving line through the tension continuously increased when receiving line from the bottom from of disk to the full disk within winching.Meanwhile, the machine can adjust the tension without stopping.
3.Host machine lubricated by oil, cooled by natural circulation, which effectively extending the service life of spindle bearing.
4.Three compaction devices equipped in the machine, which can guarantee the roundness of the conductor after the winding and reduce the loss of the insulation material.
5.The whole machine adopts synchronous belt drive, no lubricating point in the machine, keep the machine clean, the winch wire free of oil pollution, adapt to all kinds of surface cleanliness requirements of line conductor winching.






Machine parts:


1. Pay-off stand
2.Host machine
3.Three compaction devices
4.Electrical control cabinet

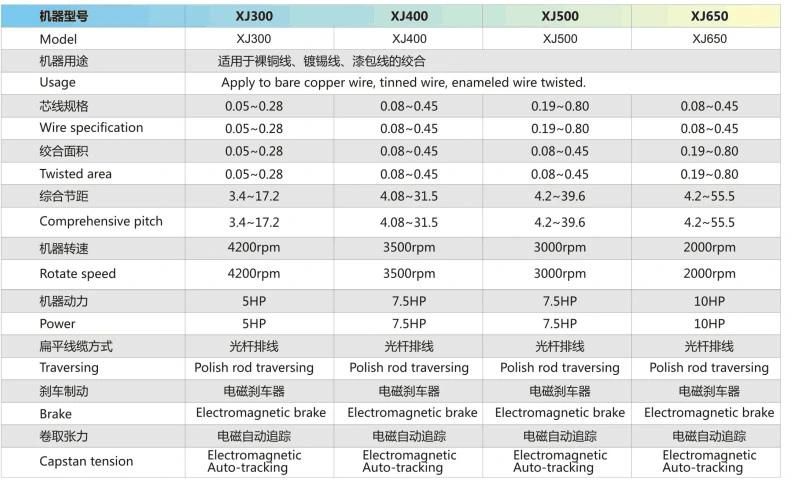

Technical parameters








Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.

About us



Newtopp electrical machinery Co., Ltd. is anational high&new technology enterprise. It located in Humen Town, Dongguan city, and through ISO9001 quality certification and IS014001 environmental management system certification.
Our company is professional in design and manufacture high-end wire and cable equipment, mainly products included: the copper bunching machine, teflon extrusion machine, insulation extrusion machine, chemical foaming extrusion machine, physical foaming extrusion machine, jacket sheath extrusion machine, planetary type cage twisting/stranding machine, Numerical control type double layers / multi layer taping machine, Cantilever type single twisting/stranding machine, lan cable back-twist pair twisting/stranding machine etc.
