• Model NO.：YH-9800
• Function：Stripping
• Application：Coaxial Cable
• Minimum Processing Diameter：0.6mm
• Voltage：AC110,220V,50,60Hz
• Air Pressure：3-7kg,Cm2 (0.4-0.6MPa)
• Processing Cable Diameter：0.6-4.0mm
• Maximum Skinning Length：20mm
• Cutting Depth Unit：0.01mm
• Peeling Precision：±0.1mm
• Transport Package：Double-Layer Export Carton
• Specification：920*220*400mm
• Origin：China
• HS Code：8479819000
• Production Capacity：L=100mm, 700-1000PCS,H

Basic Info.

Model NO. YH-9800 Function Stripping Application Coaxial Cable Minimum Processing Diameter 0.6mm Voltage AC110/220V,50/60Hz Air Pressure 3-7kg/Cm2 (0.4-0.6MPa) Processing Cable Diameter 0.6-4.0mm Maximum Skinning Length 20mm Cutting Depth Unit 0.01mm Peeling Precision ±0.1mm Transport Package Double-Layer Export Carton Specification 920*220*400mm Origin China HS Code 8479819000 Production Capacity L=100mm, 700-1000PCS/H

Product Description

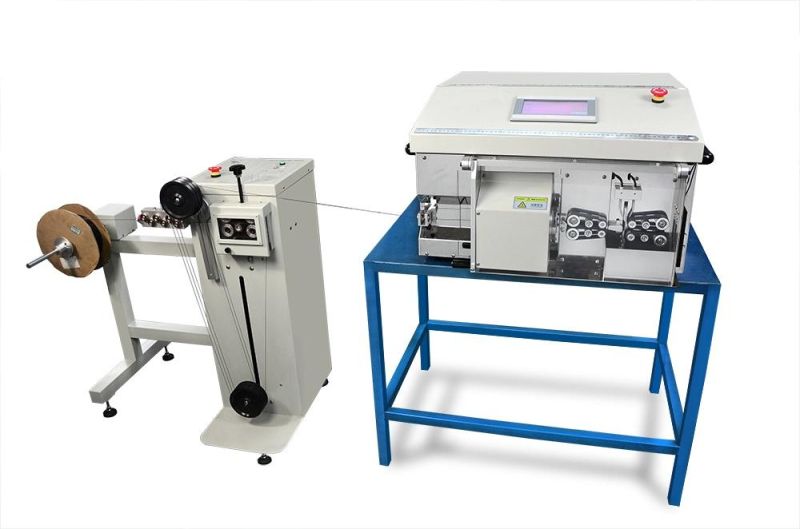

Fully-auto Coaxial Wire Cutting Stripping Machine

This fully automatic coaxial wire stripping machine is designed for processing of coaxial cables used in the field of communication manufacturing. It can perfectly cut the woven mesh layer without injuring the inner layer. Wire cutting and multi-layer or multi-stage peeling can be done at one time. Processing cable diameter: 0.6-4.0 mm. Maximum stripping layers: 8 layers.

• This fully automatic coaxial wire stripping machine is designed for processing of coaxial cables used in the field of communication manufacturing

• Wire cutting and multi-layer or multi-stage peeling can be done at one time

• The coaxial wire stripping machine adopts rotating cutter head to rotate and cut, the V-shaped blade cuts and peels, and the two sets of cutter heads cooperate with each other to more accurately improve the quality and output of the processed products

• It can perfectly cut the woven mesh layer without injuring the inner layer

Specifications:


Model	YH-9800
Processing cable diameter	0.6-4.0mm
Minimum processing diameter	0.6mm
Maximum skinning length	20mm
Cutting depth unit	0.01mm
Peeling precision	±0.1mm
Maximum stripping layers	Up to 8 layers (adjustable)
Weight	102KG
Power supply	110V /220V/50HZ
Packaging size	760*700*400mm











Features:

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

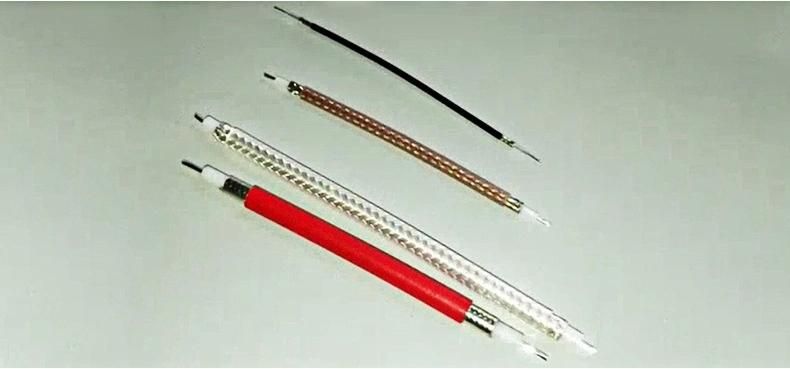

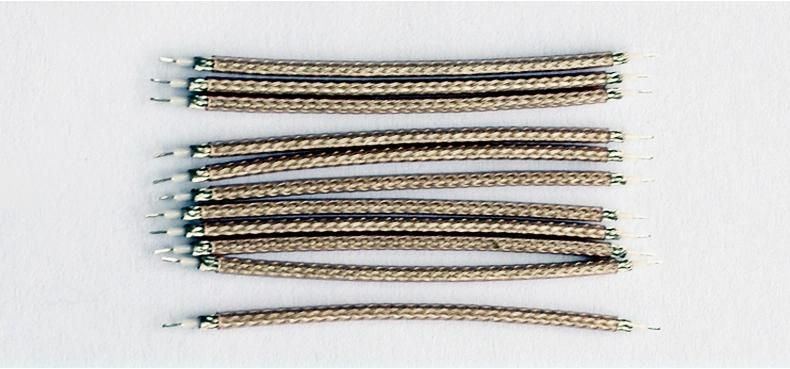

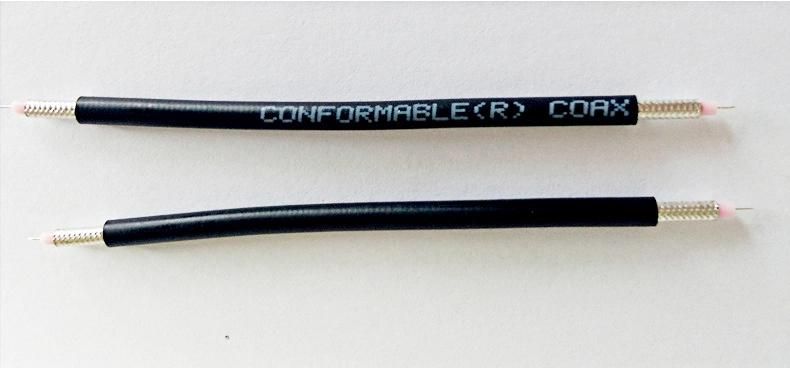

Sample: cut and strip wire automatically


Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Any questions, please feel free to contact us ! Thank you !
