• Model NO.：WIND-160-VW
• Automatic：Automatic
• Transport Package：Wooden Case
• Specification：Middle Size
• Trademark：Wind Automation
• Origin：China
• HS Code：8479811000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. WIND-160-VW Automatic Automatic Transport Package Wooden Case Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/Year

Product Description

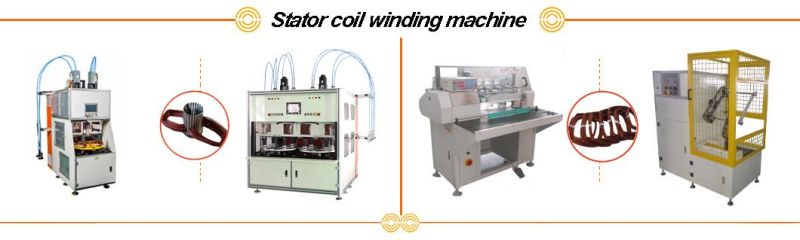

2 Poles, 4 Poles and 6 Poles Coils Winding Machine

This machine is suitable for stators with OD range within 200mm, stack heigt winthin 1600. The mas winding speed is up to 1800r/min.

(1) Specification

Wire diameter	0.18~1.2mm
Min stator ID	400mm
Winding head	2
Max stator OD	200mm
Core length	160mm
Winding Speed	Max 1800r/min
Air pressure	0.6~0.8Mpa
Power supply	380V  7.5KW
Weight	About 2000kgs
Dimension	2600x2200x2300mm

(2) Feature
Rotation and indexing controlled by servo system
Tooling change and software adjustment within 15min
No distinct vibration or noise during winding
Automatically stop if wire is run out
Manual unloading coils after winding
Single winding head two working stations
All winding parameter programmable on touch screen

(3) Application
This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

(4)Operation step
Thread wire into the machine
Connect the power and air source
Turn on the machine, and press "reset" button to reset the machine
Put the winding form on the indexing plate
Press "cut wire"
Press "start" button by two hands, machine will automatically wind the stator.
