Samll Wire Spool Feeding Cable Feeder Wire Pay off Machine
Kunshan Yuanhan Electronic Equipment Co., Ltd.- After-sales Service：All Life
- Automatic Grade：Automatic
- Driven Type：Electric
- Warranty：24 Months
- Model：Yh-830
- Voltage：220V
Base Info
- Model NO.：YH-830
- Main Body Material：High Quality National Standard Rectangular Tube
- Take off Power：0.55kw
- Cable Lift：Manual Handling of The Reel
- Coil Size：600mm
- Coil Clamping：Adaptive Drive Wheel with a Maximum Width of 680mm
- Tension Wheel：Wheel Set (3 PCS)
- Speed：Depends on The Wire Stripping Machine
- Tension Adjustment：Adjust The Tension of The Cable
- Dimensions：1,260*1,110*750mm (L*W*H)
- Weight：180kg
- Cable Max Diameter：18
- Drive Type：Inverter + Motor + Reducer
- Remarks：The Machine Can Be Customized
- Transport Package：Double-Layer Export Carton
- Specification：1, 260*1, 110*750mm (L*W*H)
- Trademark：yuanhan
- Origin：China
- Production Capacity：L=100mm, 3000-7000PCS,H
Description
High-speed feeding and rewinding cable and wireFeeding cable type Wire, cable, PVC cable, etc. Cable range 0.5-10mm2 Speed 0-4M/s Cable max diameter Φ18 Cable spool max diameter 600mm Max load weight 60kg Induction type proximity switch, multi-speed Drive type Inverter + motor + reducer Remarks
The machine can be customized for processing special cables,
and the sample cable should be sent to us for test.

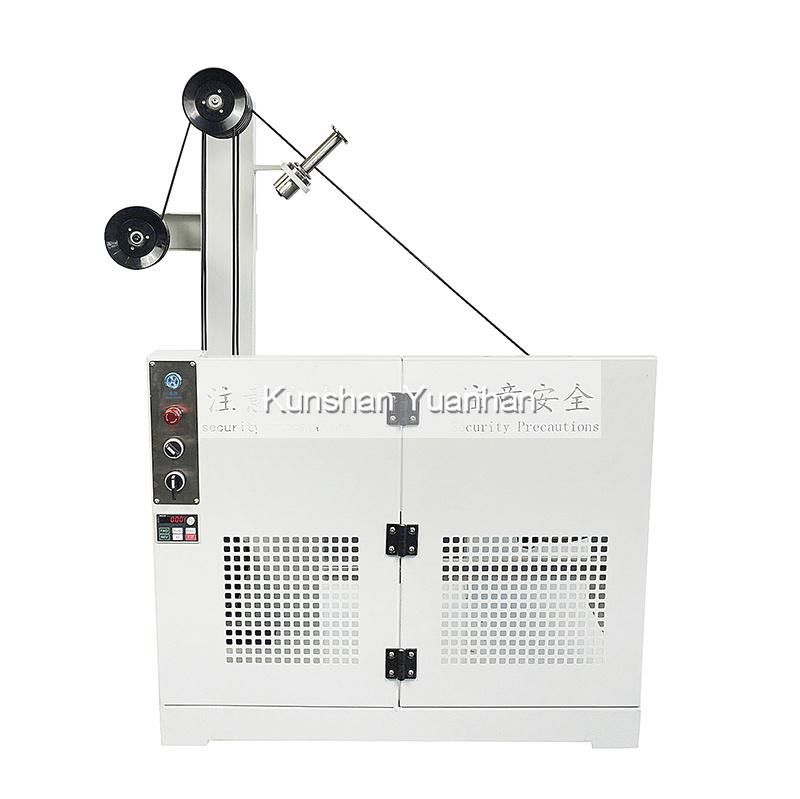

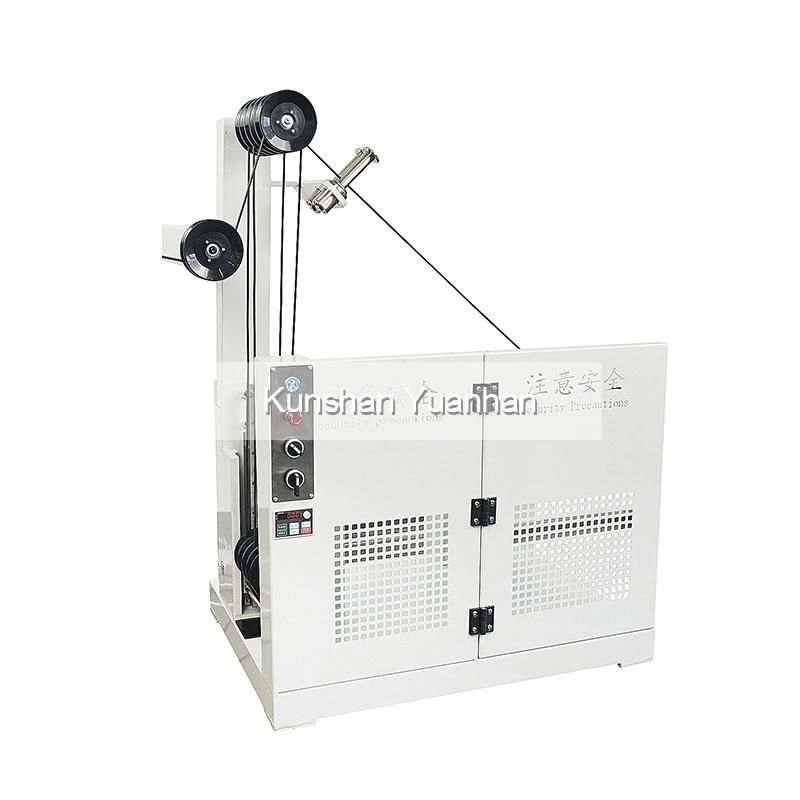

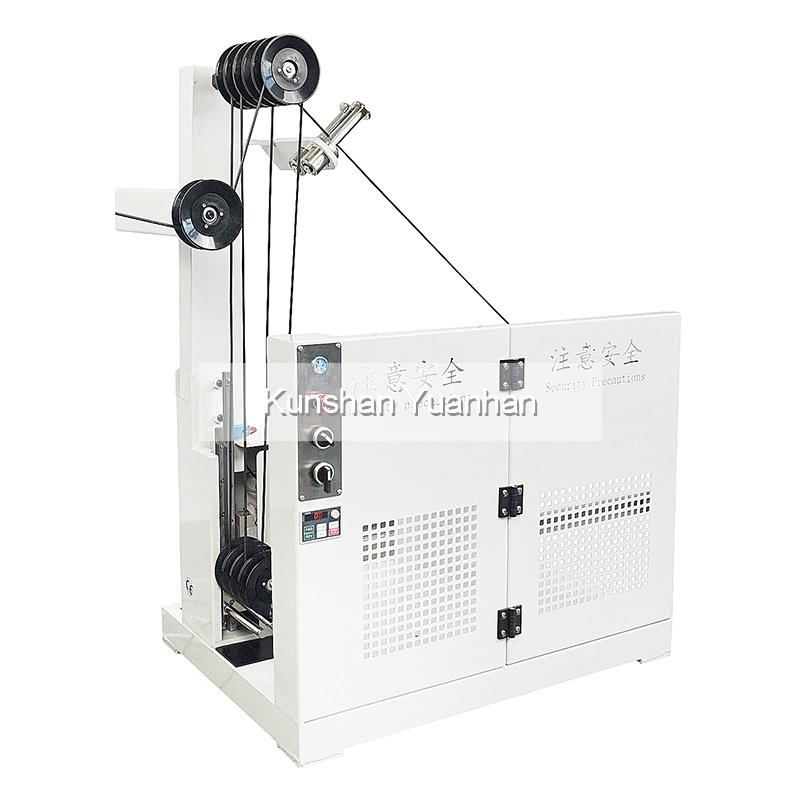

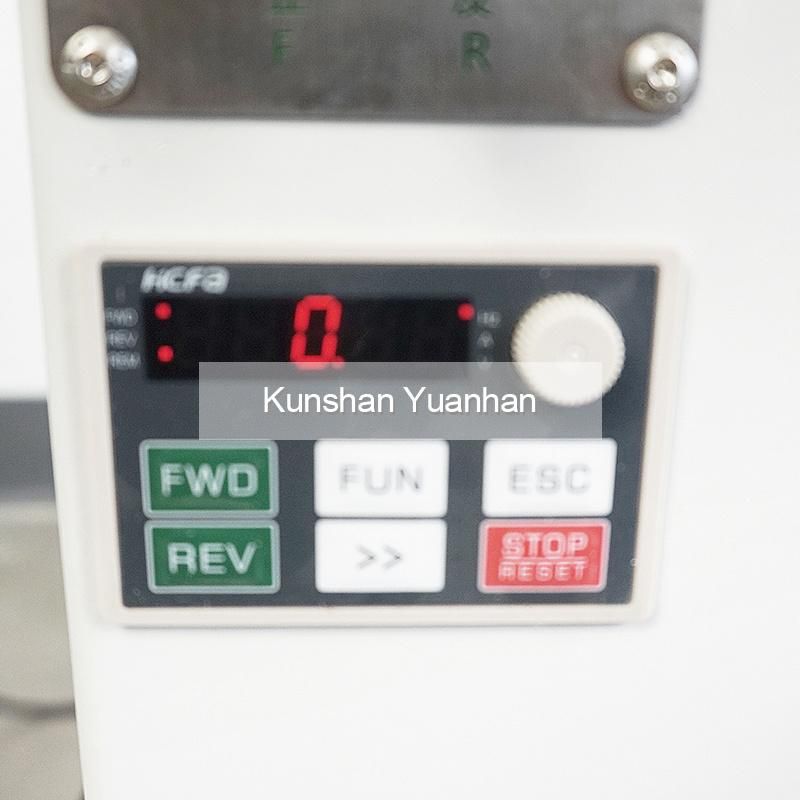

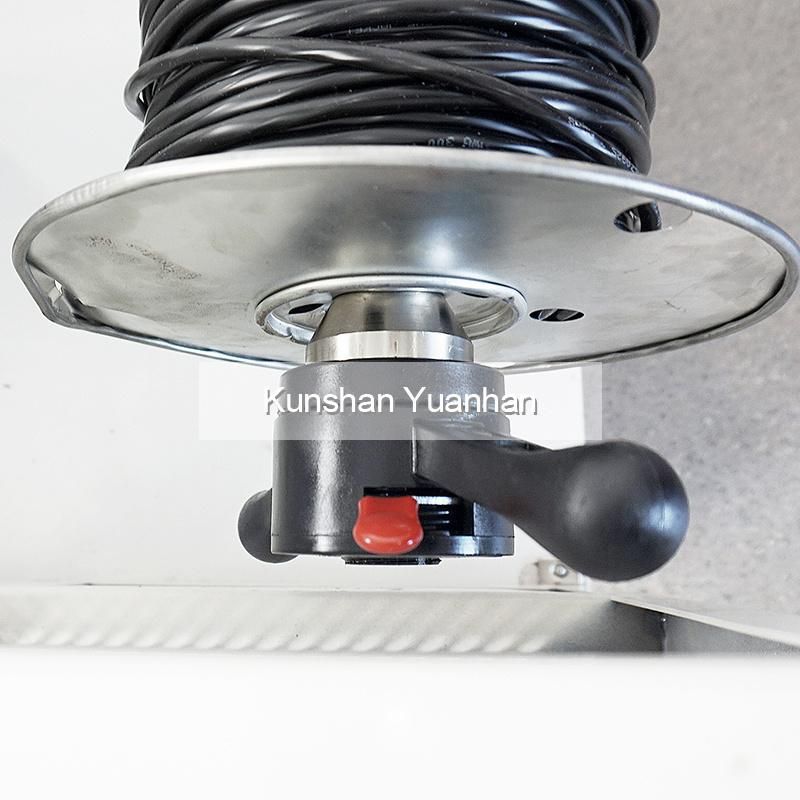

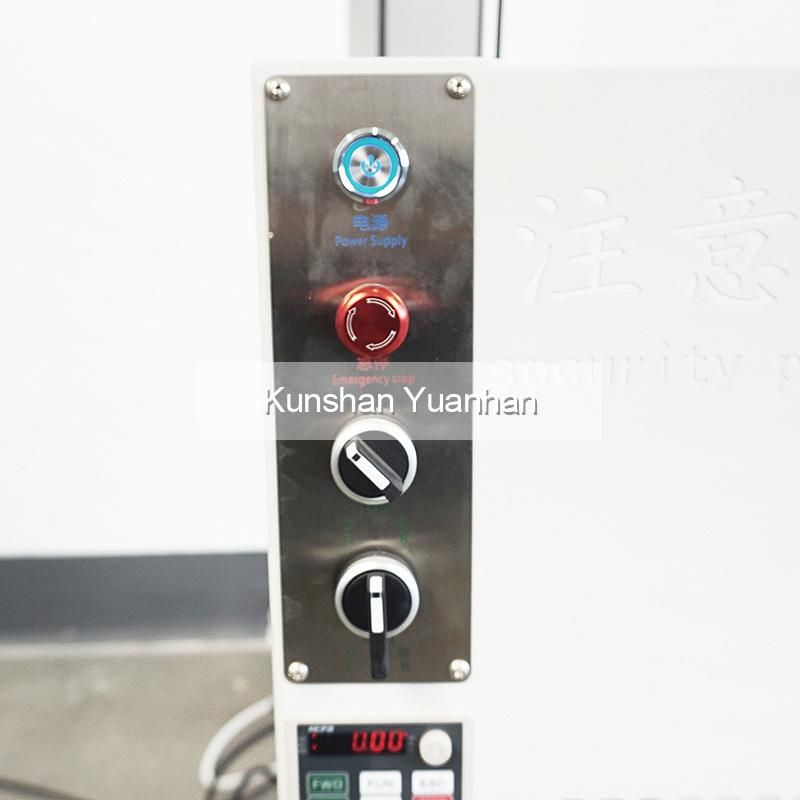

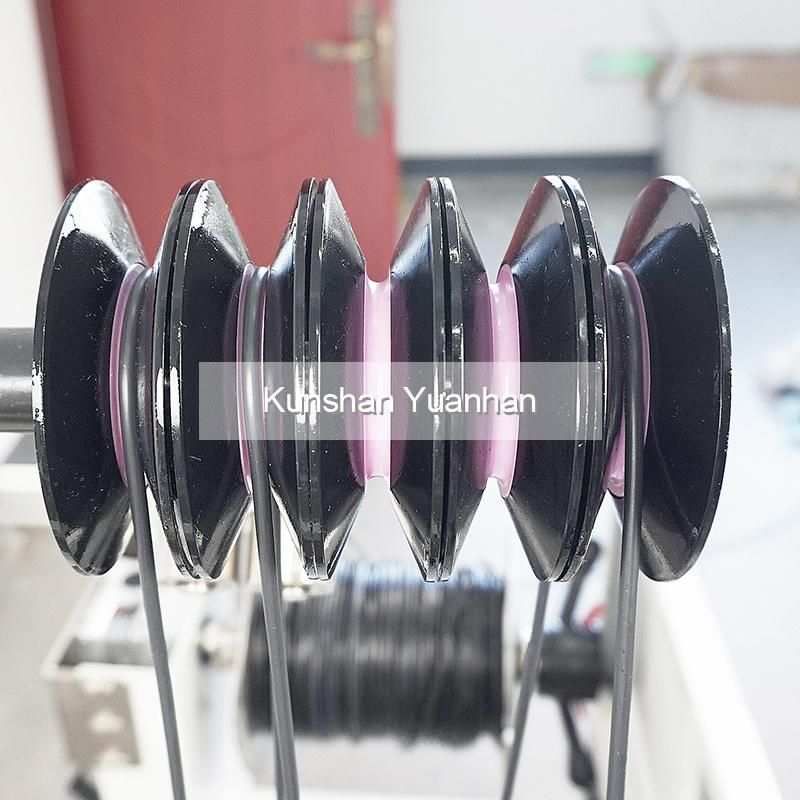

MACHINE PHOTOS
Other Model
If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.
Packing & Shipping:
For small and light products packed by cartons,for large and heavy products packed by wooden
Any questions, please feel free to contact us! Thank you !
