• Model NO.：XJ-120
• Specification：XJ120
• Trademark：Newtopp
• Origin：China
• HS Code：8477209000
• Production Capacity：200sets,Year

Basic Info.

Model NO. XJ-120 Specification XJ120 Trademark Newtopp Origin China HS Code 8477209000 Production Capacity 200sets/Year

Product Description

Application field:
Used for power wire,computer wire,data wire and high frequency wire outside jacket insulation extrusion.





Machine technical feature

1.Concentricity: 93-97%  OD tolerance: Solid +/-0.005
2.Wire specification: Φ10mm-40mm
3.The highest output: 360KG/hr   The highest wire speed: 180M/MIN
4.Body temperature will be controlled within ±1ºC
5.Extrusion material: PVC, SR-PVC, PE, PP, PU etc.
6.Screw parameters:L/D ratio:26;1,compression ratio:2.7-3.2,screw material:38CrMoAIA,vacuum heating treatment,surface grinding polishing chromium plating.

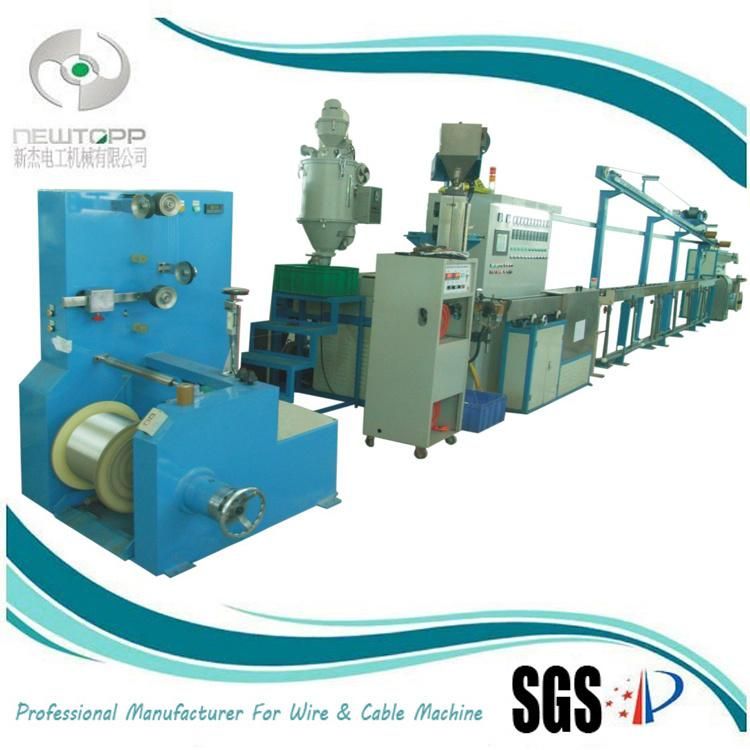

Machine parts

No.	Parts name&Specs.	Qty
1	ø1600-2500mm Gantry type pay off	1set
2	Bumper bracket	1set
3	ø120mm host extruder	1set
4	Electrical control cabinet	1set
5	Right-angle coating insulation crosshead	1set
6	Hopper and dryer	1set
7	Inkjet printer	1set
8	1.5m U type movable cooling trough	1set
9	15m single layer cooling trough	1set
10	1600kg Caterpillar hual off	1set
11	ø1600-2500mm Gantry type take up	1set

Main parts brand
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens



Our Service
 Pre-Sales Service                          After-Sales Service
* Inquiry and consulting support.     * Training how to install and how to use the machine
* Customized design support.          * Engineers available to service machinery overseas.
* View our Factory.


About us
Company introduction


Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which professional in design and manufacture high-end wire and cable equipment,manily have the whole factory production line solution of Civil construction/power wire&cable,whole factory production line solution of Lan cable cat8/5E/6/6A/7,whole factory production line solution of HDMI,USB,SATA,RG59,6 etc. High frequency wire and cable,equipment include the copper bunching machine,teflon extrusion machine,insulation extrusion machine, chemical foaming extrusion machine,physical foaming extrusion machine,jacket sheath extrusion machine,planetary type cage twisting/stranding machine, numerical control type double layers/multi layers taping machine,cantilever type single twisting/stranding machine,Lan cable back-twist pair twisting/stranding machine etc. For more information please log in our official website http://dgnewtopp.en.made-in-china.com or feel free to contact us directly.
