40 High Frequency Signal Transmission Wire Extruder/Coaxial Wire Extrusion Machine/Cable Extrusion Line
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, UL, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Transport Package：Standard Shipping Packing
Base Info
- Model NO.：XJ-40
- Specification：XJ40
- Trademark：Newtopp
- Origin：China
- HS Code：8477209000
- Production Capacity：200sets,Year
Description
Basic Info.
Model NO. XJ-40 Specification XJ40 Trademark Newtopp Origin China HS Code 8477209000 Production Capacity 200sets/YearProduct Description
Application field:Used to micro-fine coaxial wire, high frequence signal transmission wire and other wire&cable teflon insulation.
Machine technical feature
1.Concentricity: over 95% OD tolerance: +/-0.003
2.Body temperature will be controlled ±1ºC
3.Conductor diameter range: ø0.8-2.5mm
4.The highest output: 30KG/H ,The highest wire speed: 180M/min
5.Extrusion material: ETFE, PTFE, FEP, PFA etc
6.Screw parmeter:L/D ratio:26:1
7.Take up type:Double-axis take up, servo control traversing,can single/linkage running

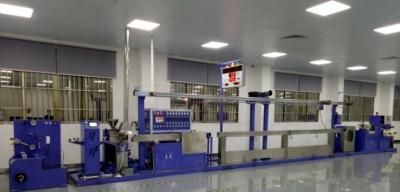

Machine parts
| Item. | Parts specification and model | Qty | ||||
| 1 | ø300-500 Automatical active pay-off stand | 1 set | ||||
| 2 | High frequency automatical preheater | 1 set | ||||
| 3 | Ø40mm Teflon main extruder | 1 set | ||||
| 4 | Teflon special crosshead | 1 set | ||||
| 5 | Vacuum system | 1 set | ||||
| 6 | Electrical control cabinet | 1 set | ||||
| 7 | Dongguan Sinwa Printer | 1 set | ||||
| 8 | 1.8M movable cooling water tank | 1 set | ||||
| 9 | 9M single layer cooling water tank | 1 set | ||||
| 10 | 10M horizontal wire accumulator | 1 set | ||||
| 11 | Ø318mm dual-wheel capstan | 1 set | ||||
| 12 | Ø300-500mm dual-axis take up stand | 1 set | ||||
| 13 | Shanghai Eectrl Laser OD tester | 1 set | ||||
| 14 | Taiwan Tontek high frequence spark tester | 1 set |
Main parts brand
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install and how to use the machine
* Customized design support. * Engineers available to service machinery overseas.
* View our Factory.
