Transformer Wire Coil Thick Copper Wire Winding Machine

Tianjin Grewin Technology Co., Ltd.
  • Wire Diameter：1.0-4.0
  • Max.Final Coil.O.D：130-650
  • Min.Final Coil.I.D：60
  • Max.Finalcoil Height：150
  • Controller Storage Capacity Programs：29 Sets
  • Max.Taping Speed：150rpm

Base Info

  • Model NO.：GWM-0619
  • Tape Spacing：Proportional Linkage
  • Supply Voltage：AC 220V(50Hz)
  • Mechanical Dimensions：900*600*1350
  • Weight：240kg
  • Certification：RoHS, CE, ISO
  • Transport Package：Export Standard Carton with Strong Pallet
  • Specification：VDE, CE
  • Trademark：Grewin
  • Origin：Tianjin
  • HS Code：85045000
  • Production Capacity：1000 ,Month

Description

Wire diameter1.0-4.00Max.winding speed150rpmMax.final coil.O.Dφ130-650Wire spacingProportional linkageMin.final coil.I.Dφ60Supply voltageAC 220V(50Hz)Max.finalcoil height150Mechanical  dimensionsWire diameter0.50-1.30Max.winding speed200rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ25Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550*500*750Controller storage
capacity Programs29 (set)Weight94kgGWM-0319B (winding machine/Mag.OD.400)
(unit): mm

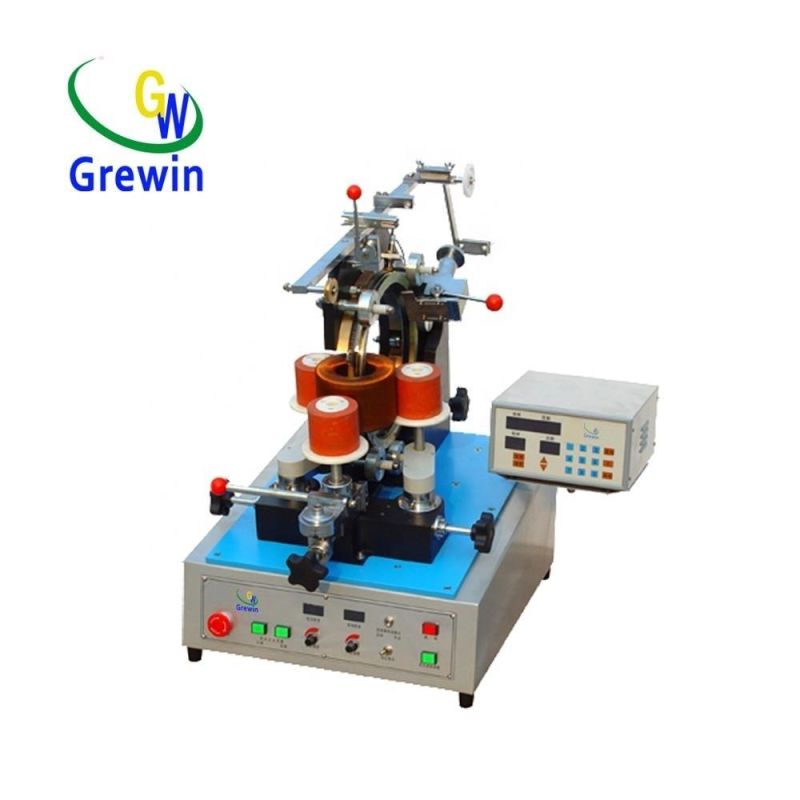

2.GWM-0119 Gear type toroidal coil winding machine

Transformer Wire Coil Thick Copper Wire Winding Machine
 Wire diameter0.70-2.50Max.winding speed200rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ40Supply voltageAC 220V(50Hz)Max.finalcoil height100Mechanical  dimensions550*500*780Controller storage
capacity Programs29 (set)Weight94kgGWM-0119(winding machine/Mag.OD.400)
(unit): mm

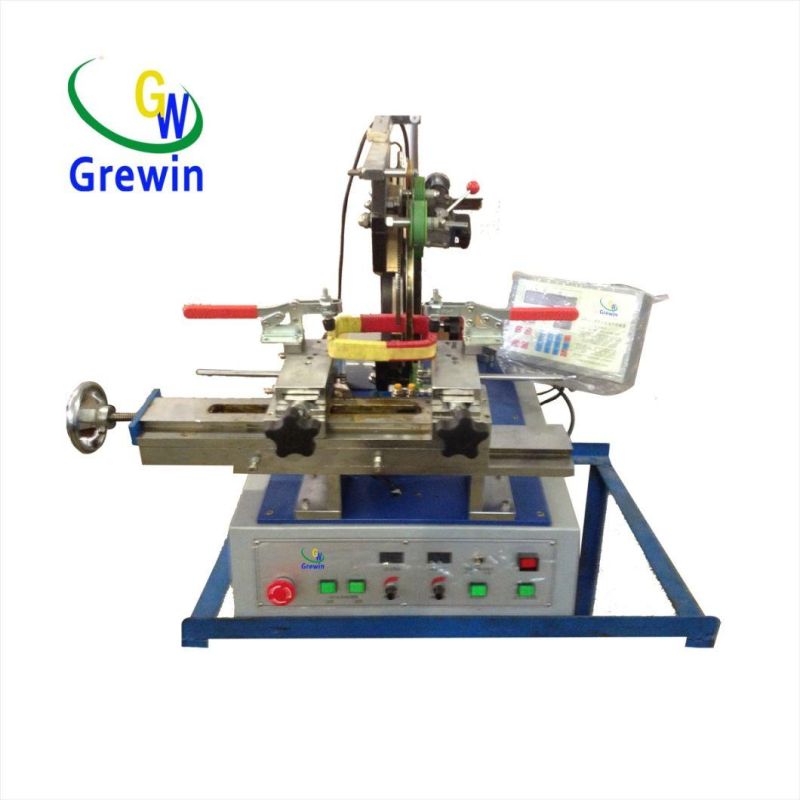

3.GW0950 Mobile rectangular coil winding machineTransformer Wire Coil Thick Copper Wire Winding MachineWire diameter0.70-2.00Max.winding speed200rpmMax.final coil.O.Dφ65-500,55Wire spacingProportional linkageMin.final coil.I.Dφ50-430,45Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions1000*950*780Controller storage
capacity Programs29 (set)Weight110kgGW0950(winding machine/Mag.OD.400)
(unit): mm

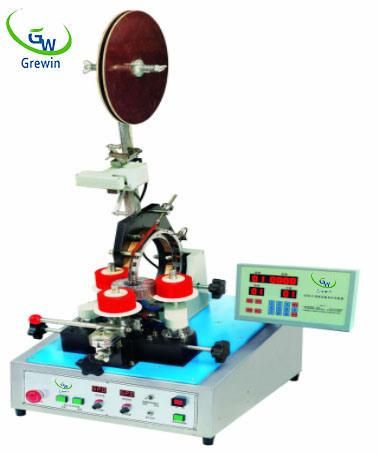

4.GWTM-0218  Gear type automatic wrapping insulating tape machine

Transformer Wire Coil Thick Copper Wire Winding Machine

 Tape width12(8,10,15)Max.taping speed250rpmMax.final coil.O.Dφ50-200Tape spacingProportional linkageMin.final coil.I.Dφ35Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550×500×1100Controller storage
capacity Programs29 (set)Weight100kgGWTM-0218 (taping machine/Mag.OD.400)
(unit): mm

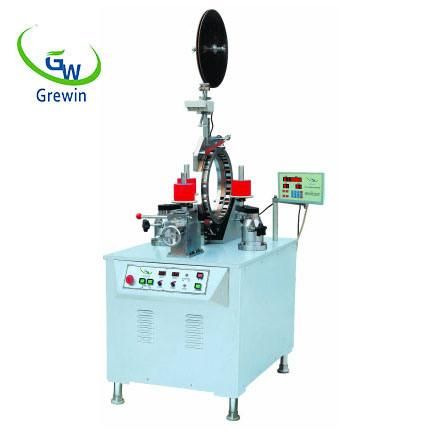

5.GWTM-0418 Gear type automatic wrapping insulating tape machine

Transformer Wire Coil Thick Copper Wire Winding Machine

 Tape width15(20,25,30)Max.taping speed120rpmMax.final coil.O.Dφ130-650Tape spacingProportional linkageMin.final coil.I.Dφ60Supply voltageAC 220V(50Hz)Max.finalcoil height150Mechanical  dimensions9000×600×1800 Controller storage
capacity Programs29 (set)Weight240kgGWTM-0418 (taping machine/Mag.OD.400)
(unit): mm

Of course we have other models, please contact us if you need.

Contect us
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.
