Low Price Digital Coil Counting Toroidal Transformer Winding Machine

Tianjin Grewin Technology Co., Ltd.
  • Voltage：AC 220V 230V 12V 24V Transformer
  • Wire Diameter：0.50-1.30
  • Max.Final Coil.O.D：60-200
  • Min.Final Coil.I.D：25
  • Max.Finalcoil Height：80
  • Controller Storage Capacity Programs：29 Sets

Base Info

  • Model NO.：GWM-0319B
  • Max.Winding Speed：200rpm
  • Wire Spacing：Proportional Linkage
  • Supply Voltage：AC 220V(50Hz)
  • Mechanical Dimensions：550*500*750
  • Weight：94kg
  • Certification：RoHS, CE, ISO
  • Transport Package：Export Standard Carton or Customize Strong Pallet
  • Specification：CE
  • Trademark：Grewin
  • Origin：China
  • HS Code：85043190
  • Production Capacity：100PCS

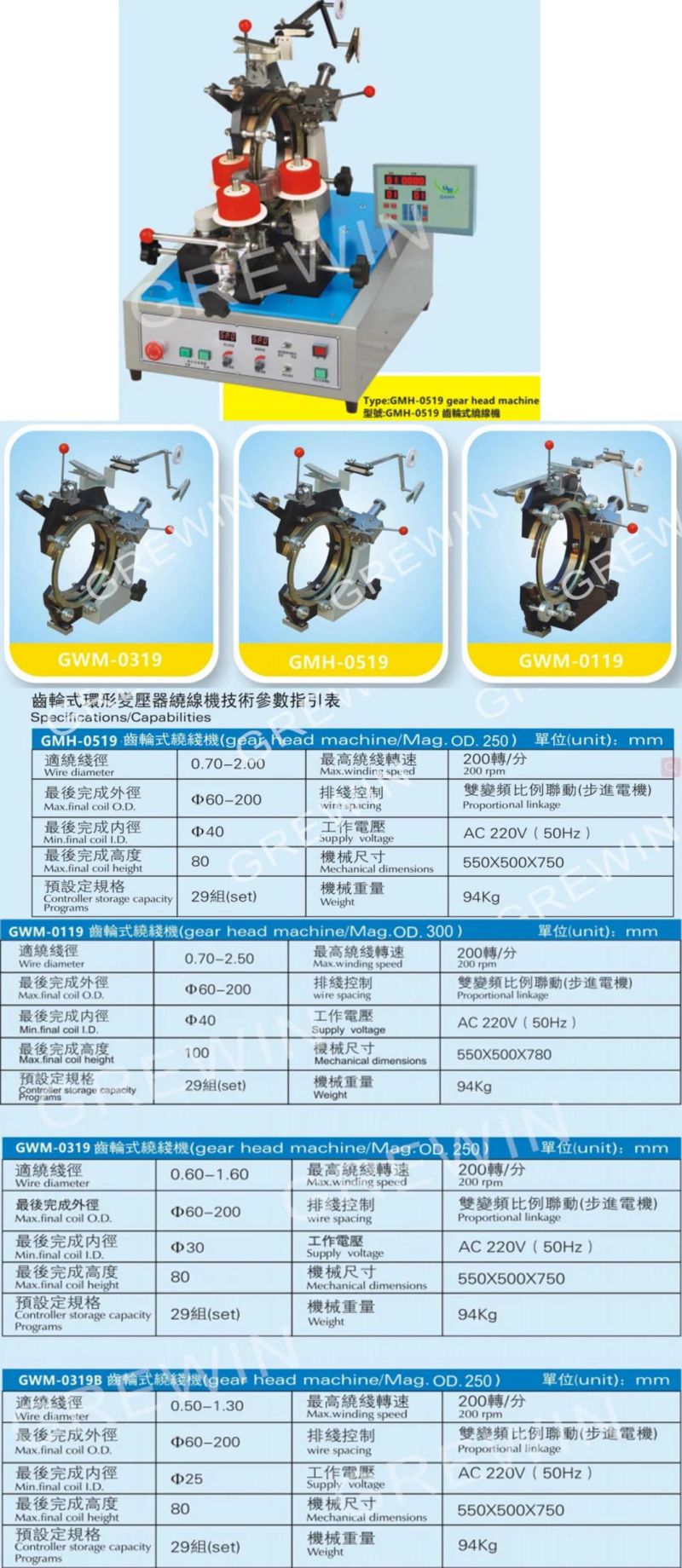

Description

Wire diameter0.50-1.30Max.winding speed200rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ25Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550*500*750Controller storage
capacity Programs29 (set)Weight94kgGWM-0319B (winding machine/Mag.OD.400)
(unit): mm

Related Products
Low Price Digital Coil Counting Toroidal Transformer Winding Machine



Company Information and Profile
We-TIANJIN GREWIN GROUP is expert in machines lines for more than 31 Years. Our Grewin have ISO9001:2015 approvals.
Low Price Digital Coil Counting Toroidal Transformer Winding Machine
Related Products

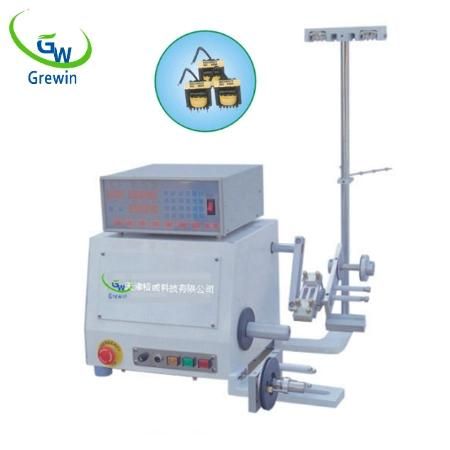

1.GW-9800 coil winding machine
Low Price Digital Coil Counting Toroidal Transformer Winding Machine
 wire size0.08-1.0mmMax.winding speed3000rpmspread width200mmwinding motor1/8HP DC motorwinding width120mmSupply voltageAC 220V(50Hz)spread motor4-phase stepping motorMechanical  dimensions760×680×720 memory Programs999Weight37kgGW-9800 (winding machine/Mag.OD.400)
(unit): mm

2.GW-976 coil winding machine
Low Price Digital Coil Counting Toroidal Transformer Winding Machine
 wire size0.02-0.8mmMax.winding speed6000rpmspread width100mmwinding motor1/2HP DC motorwinding width150mmSupply voltageAC 220V(50Hz)spread motor4-phase stepping motorMechanical  dimensions450×670×100 memory Programs999Weight45kgGW-976 (winding machine/Mag.OD.400)
(unit): mm

3.GW-9751 coil winding machine
Low Price Digital Coil Counting Toroidal Transformer Winding Machine
 wire size0.5-1.6mmMax.winding speed3000rpmspread width200mmwinding motor1/2HP DC motorwinding width200mmSupply voltageAC 220V(50Hz)spread motor4-phase stepping motorMechanical  dimensions390×580×430 memory Programs999Weight32kgGW-9751 (winding machine/Mag.OD.400)
(unit): mm
