Dual Track Lead Free 10 Zones SMT Nitrogen Reflow Oven High Speed Soldering Machine for SMT Assembly Line

Shenzhen HTGD Intelligent Equipment Co., Ltd.
  • After-sales Service：Technical Support, Maintenance Services,
  • Condition：New
  • Certification：CCC, RoHS, ISO, CE
  • Warranty：24 Months
  • Automatic Grade：Automatic
  • Installation：Vertical

Base Info

  • Model NO.：GDK-1003D-N
  • Main Color：Industrial Computers White
  • Heating Time：About 25 Mins
  • Transport Speed：400-2000 mm,Min, Chain Guide at Same Speed
  • Temperature Control Accuracy：+,-1 Degrees Centigrade
  • PCB Maximum Width：2-280mm (Optional: 2-300mm)
  • Guide Rail Fixing Mode：Front End Fixing (Optional: Back End Fixing)
  • Number of Heating Zones：Under 10, up 10
  • Cooling Areas：up 3 Under 3
  • Cooling Mode：Cooling of External Water Cooler
  • Transport System：Double Rail
  • Transport Package：Wooden Case Packing Vacuum Packing
  • Specification：L6300mm*W1420mm*H1520mm
  • Trademark：GDK
  • Origin：China
  • HS Code：8514109000
  • Production Capacity：2000sets,Year

Description

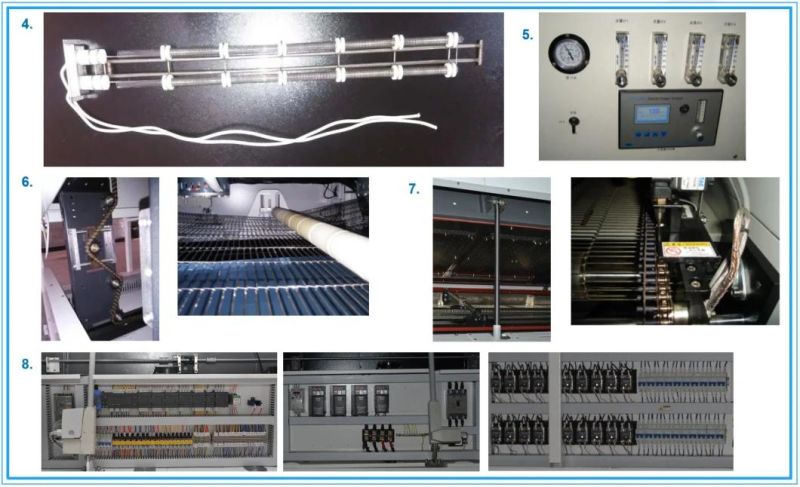

Equipment configurationNumber of heatingUp 10 Under 10cooling areasUp 3 Under 3Control systemSiemens PLC+ Modular PLC+PID Control Windows 10, Free Switching in English and Chinese OnlineTemperature control modePID closed-loop control SSR driveNitrogen-filled distributionEach temperature zone is equipped with nitrogen filling port, which can realize nitrogen filling in the whole areaStandard N consumption300-1000ppm,20-25M³/hTransport systemSingle guideTransport control modeImported inverter + imported transport motorChain structureNickel-manganese Steel Chain Plating 35B Single Buckle and Pin ShaftGuide rail structureWhole two-sectionGuide rail width50 mm-400mm (50 mm-610mm optional)Upper cover startElectric opening of upper cover for cleaning in furnaceUPS power supplyStandby powerHeating Rectifier Plate StructureThickened aluminium sheetCooling modeCooling of external water coolerPacking mode of transportGeneral packing + provincial land transportationWarrantyWarranty period: two years (two years of non-human malfunction, replacement of repair parts provided free of charge by equipment supplier, alloy track, heating module and high temperature motor for five years)Dual Track Lead Free 10 Zones SMT Nitrogen Reflow Oven High Speed Soldering Machine for SMT Assembly LineDual Track Lead Free 10 Zones SMT Nitrogen Reflow Oven High Speed Soldering Machine for SMT Assembly LineDual Track Lead Free 10 Zones SMT Nitrogen Reflow Oven High Speed Soldering Machine for SMT Assembly LineDual Track Lead Free 10 Zones SMT Nitrogen Reflow Oven High Speed Soldering Machine for SMT Assembly LineDual Track Lead Free 10 Zones SMT Nitrogen Reflow Oven High Speed Soldering Machine for SMT Assembly LineDual Track Lead Free 10 Zones SMT Nitrogen Reflow Oven High Speed Soldering Machine for SMT Assembly LineDual Track Lead Free 10 Zones SMT Nitrogen Reflow Oven High Speed Soldering Machine for SMT Assembly LineDual Track Lead Free 10 Zones SMT Nitrogen Reflow Oven High Speed Soldering Machine for SMT Assembly LineDual Track Lead Free 10 Zones SMT Nitrogen Reflow Oven High Speed Soldering Machine for SMT Assembly LineDual Track Lead Free 10 Zones SMT Nitrogen Reflow Oven High Speed Soldering Machine for SMT Assembly Line

------------FAQ----------------------------------------------------

Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.

Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.

Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.
