• Model NO.：SUNY-TPJ80
• Type：High-speed Chip Mounter
• Feeder No.：70 (Front 38, Rear 32)
• Nozzle Buffering Range：5.0mm
• Power Supply：220V, 50Hz
• Compressed Air：0.5-06MPa
• Transport Package：Standard Export Package
• Trademark：SUNY
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. SUNY-TPJ80 Type High-speed Chip Mounter Feeder No. 70 (Front 38, Rear 32) Nozzle Buffering Range 5.0mm Power Supply 220V, 50Hz Compressed Air 0.5-06MPa Transport Package Standard Export Package Trademark SUNY Origin Hunan China Production Capacity 500PCS/Month

Product Description

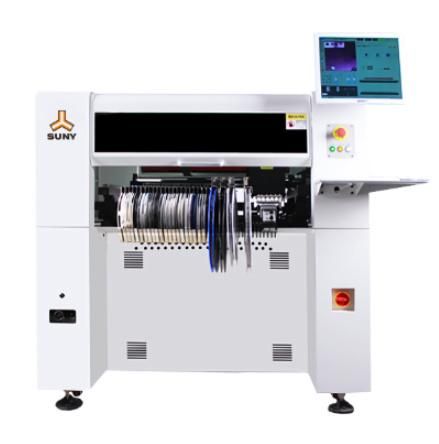

Item: Full Automatic 8 Heads Pick and Place Machine
Model: SUNY-TPJ80

Product Advantages:

1. Total 10pcs of cameras: 1PC of Mark recognition camera, 8pcs of high speed recognition camera, 1PC of 8 million pixel high-precision recognition camera, synchronously recognize, effectively ensure mounting speed and precision. What's more, precision camera redesigned as the postposition structure, more place to hold feeders for the front part, improve the efficiency of placement.

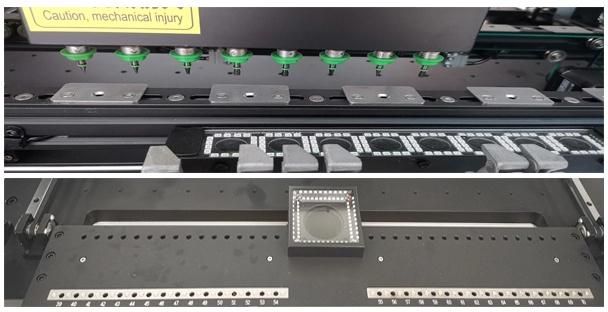

2. Adopt imported JUKI nozzle spring buffer, not easy to drop components when picking and placement, convenient to install and durable. Up to 4 groups of components can be picked up at the same time, which improves the picking up speed and work efficiency of the machine.

3. XY drives adopt imported TBI high precision lapping ball screw + heavy-load linear guide, fast positioning, low noise and high precision. Precision control error can reach 0.018mm..
4. Adopt Japan Panasonic A6 series AC servo motor, the encoder with 23Bit precision, 8 times higher than A5 series.

5. With two 17" displays, could operate front and rear simultaneously, making the operation easier, saving operators' time, no need to run around the machine.

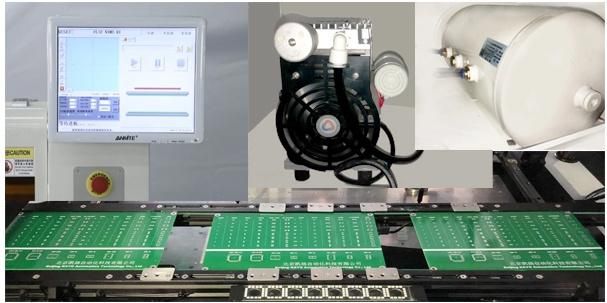

6. 3-section automatic inputting board mode: board waiting mounting, board mounting, and board waiting outputting, which greatly reduces the transmission distance and increase the number of board. Save much time, and improve the efficiency.
7.Change the traditional way of positive pressure turning into negative pressure to pick up components, built-in high-efficiency & energy-saving vacuum pump and vacuum tank, equipped with the latest r&d vacuum damage system. Greatly improve the efficiency of picking up the components, eliminate the noise caused by positive pressure turning into negative pressure, delay and reduce the frequency of air compressor start-up, effectively improve the life of air compressor.

8. Can hold 70pcs of 8mm pneumatic feeders simultaneously, reserved 38 electric feeder interface, could switch feeder type at random, also could be electric, pneumatic feeder mixture. Accurately mount 0201-5050 resistance, LED lamp beads, diodes, transistor, SOP, chip QFP-256, 45mm*45mm range QFP, BGA etc.
9. Conveyor's width adjustment adopts bilateral transmission structure to improve the width modulation accuracy and stability, effectively avoiding the different width of both ends after adjusting.

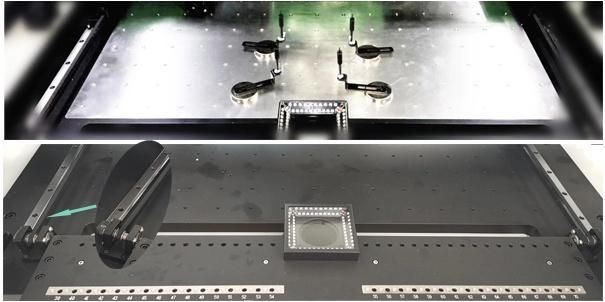

10. Workbench with magnetic force, tray holders could be tightly sucked on the table, not easy to move. No need to fix tray holder, very easy to operate.

Technical Parameters


1	Mounting Heads	8
2	Power Supply	220V, 50Hz
3	IC Tray No.	Support 12 sets
4	Weight	550KGS
5	Positioning Accuracy	0.01mm
6	Max. Circuit Board Area	650x380mm
7	Max. Mounting Speed	15000CPH
8	Driving Motor	Panasonic servo motor
9	Motion Drive System	Panasonic High speed DPS driver
10	Feeder No.	70 (Front 38, rear 32)
11	Average Power	750W
12	Compressed Air	0.5-06Mpa
13	Dimensions	1500x1280x1410mm
14	Nozzle Buffering Range	5.0mm
15	XY Max. Movement Range	750x670mm
16	Average Mounting Speed	12000CPH (Visual)
17	Rail Guide Adjustment Mode	Manual + Automatic
18	Alarm when open covers	deceleration or stop
19	Feeder No.	70 (Front 38, rear 32)
20	Z Axis Max. Movement Range	20mm
21	Mounting Mode	Manual. Semi-automatic, Automatic
22	Component Angle	0~360°, synchronized rotation in motion
23	XYZ Drive Guide Rail	TBI High-precision heavy-duty straight-line guide rail
24	X/Y Running Mode	Intelligent curve acceleration anddeceleration linear linkage
25	Mounting optimization	Program automation, continue production after mounting completed, no need to wait for resetting
26	Operating System	Independent development based on Windows operating system, support Windows XP, Win7
27	Visual Display	2pcs of 17" industrial control display ratio 4:3, resolution 1280X1024
28	Automated connection	Can automatically connect signal equipment at both end
29	Operating Window	Dual displays operation front and rear, more humane design
30	X/Y Transmission Mode	Imported TBI high-precision ball screw rod + imported TBI heavy-duty linear guide
31	Nozzle Vacuum Source	High-efficiency & energy-saving vacuum pump and vacuum tank
32	Board Input Method	Three-stage transmitting boards-automatic connection from left to right, automatic PCB transmission positioning
33	Convenient Button	Offline, reset, automatic operation, clear alarm
34	Programming Mode	Point-to-point programming, visual programming, PCB file coordinates inputting, etc.
35	Belt Type Feeder	8/12/16/24/32mm feeders, vibration feeder
36	Recognition Camera No.	1 Mark recognition camera, 8 high speed recognition camera, 1 high-precision 8 million pixel recognition camera
37	Applicable Mounting Range	Suitable for 0201, 0402, 0603, 0805, 1206, LED lamp beads, diodes, transistors, SOT, 45mm*45mm range pin pitch ≥0.3mm QFP, BGA etc.
