• Model NO.：SUNY-SYJ100
• Type：Manual Screen Printer
• Printing Speed：Manually Controlled
• Repeat Precision：±0.01mm
• Dimensions：540X380X390mm
• Weight：20kg
• Transport Package：Standard Export Package
• Trademark：SUNY
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. SUNY-SYJ100 Type Manual Screen Printer Printing Speed Manually Controlled Repeat Precision ±0.01mm Dimensions 540X380X390mm Weight 20kg Transport Package Standard Export Package Trademark SUNY Origin Hunan China Production Capacity 500PCS/Month

Product Description

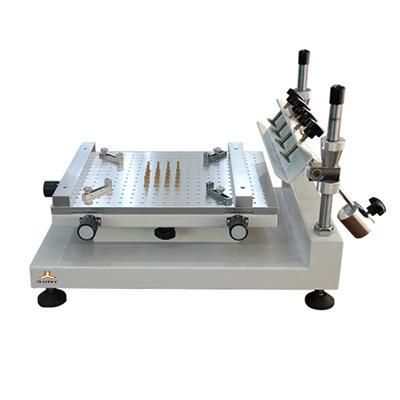

Item: High Precision Manual Screen Printer
Model: SUNY-SYJ100

Special designed for single/double-sided circuit board tin paste or red gum printing requirements:
1. Universal honeycomb baseboard, movable thimble, active support block, flexible positioning PCB, easy to print double-sided PCB.
2. Base uses thickened steel plate, strong and durable.
3. Circuit board positioning uses positioning pin, fixed link and fixed plate operating, not only convenient positioning, but also to ensure the repeated operating accuracy.
4. The correcting method through the steel net moving, combined with the fine adjustment of printing platform X, Y axis to correct, convenient and rapid.
5. Steel mesh support adopts screw guide, can adjust height up and down, easy to control the thickness of PCB and the paste amount.
6. The printing screen is fixed by four knobs with platen, fast and firm.

Product Specification:

Workbench Size	300x400mm
Max. Printing Size	250x400mm
Max. Mesh Frame Size	370x470mm
Printing Speed	Manually Controlled
Printed Component Height	0-80mm
Workbench Vertical/ Horizontal Adjustment	10mm
Printing Platform Height	190mm
Repeat Precision	±0.01mm
Positioning Method	Shape or reference hole
Dimensions	540x380x390mm
Weight	20KG
