• Model NO.：TB680
• Spray Work Mode：Froth
• Packing Size：90*60*46cm
• Transport Package：Wooden Case
• Specification：90*60*46cm
• Trademark：Torch
• Origin：Beijing
• HS Code：8515800090
• Production Capacity：3 Set,Month

Basic Info.

Model NO. TB680 Spray Work Mode Froth Packing Size 90*60*46cm Transport Package Wooden Case Specification 90*60*46cm Trademark Torch Origin Beijing HS Code 8515800090 Production Capacity 3 Set/Month

Product Description

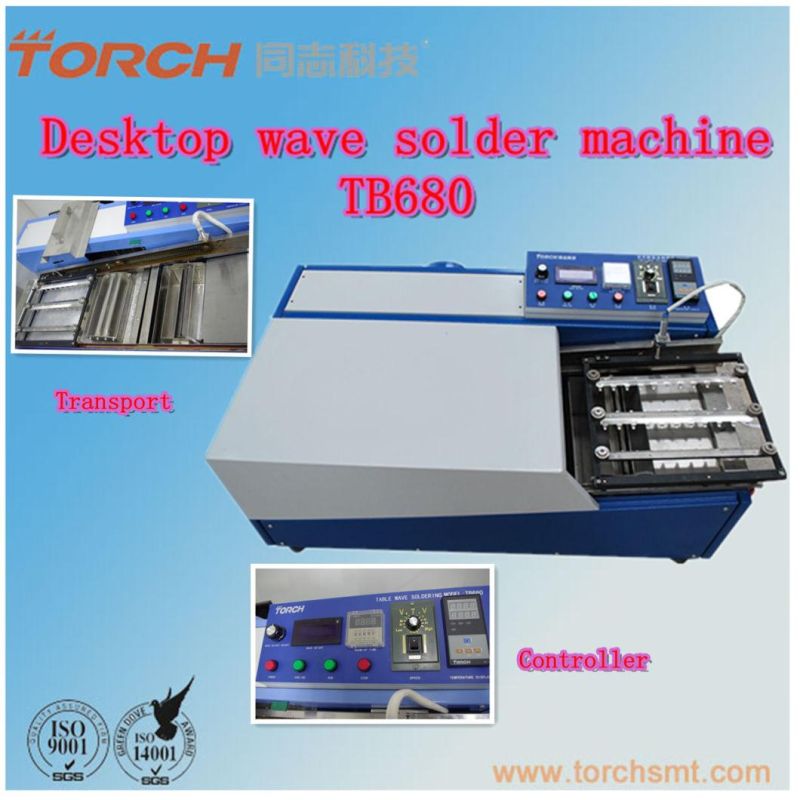

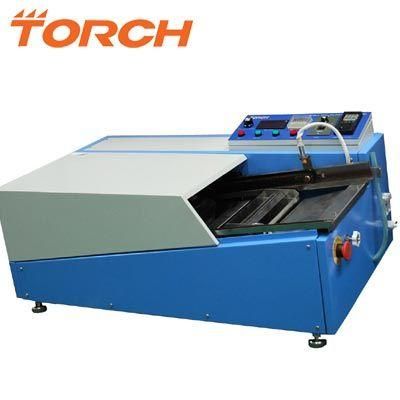

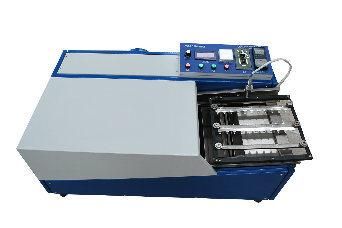

Torch Desktop Wave Soldering Machine/Automatic Wave Soldering Oven TB680
TB680 has been developed by Torch, aiming at the practical status of the current soldering technology inland. It occupies the vacancy of the small automatic wave soldering inland. It adapts to the research and production in research center, war industry, middle- and small-sized corporation, small private corporation and other electronic production companies. The whole machine is a desk-type. The reasonable frame takes up little room. It has complete functions and it is cheap, however energy-saving with high efficiency. Besides TB680 is easy to operate and reliable in soldering so that it could be widely used, especially suitable for small and middle amount of production. TB680 could be the best device to replace the soldering iron by hand and the dip-soldering with tin pan.






Compared with bigger ones, TB680consumes less energy. Quickly tin melting, easy to operate, simple to repair as well as maintain, automatic self-protection.

Remark
Features

1. High agility: It is convenient for TB680 to control every soldering technical parameter and a high quality could be ensured.
2. Digital display of soldering temperature.
3. High reliability: High temperature sintering heating element make the machine perform steady and reliable.
4. Widely used: TB680 can replace brand iron soldering and soldering device in middle and little batch of production. It can satisfy every requirement of soldering production.
5. High efficiency: Productivity would be advanced.
6. Reasonable price, long life
7. Small size and power consumption. It meets the requirements for the production in the laboratory and factory.

Model	TB680
The max power consumption	3Kw
Solder pot capacity	37Kg
PCB width (L×W)(mm)	200 X 270mm (Max)
Temperature range	200~300
Preheating temperature	90~130
Wave height adjust range	5~ 10mm
Melt time	60min
Spray work mode	froth
Power supply	220v 50Hz
Conveyor speed	0.5~ 2m /min CTV
Dimension	840 X 540 X 380mm
Weight	70Kg
