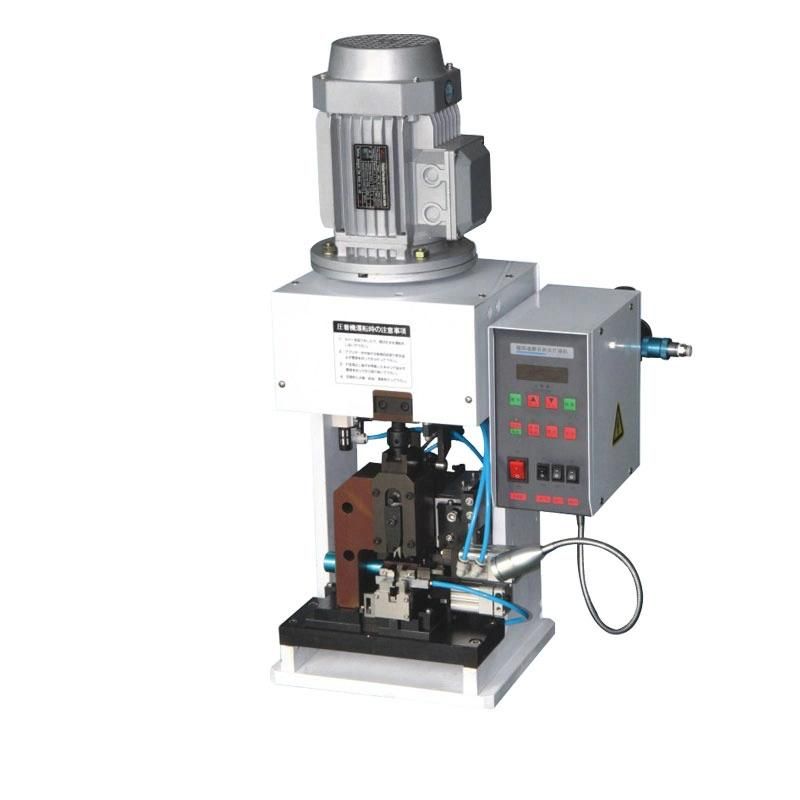

Semi Automatic Mute Terminal Crimping Machine WG-BD-3000

GUANGDONG WINGUD INTELLIGENT TECHNOLOGY CO., LTD.
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO
  • Warranty：12 Months
  • Automatic Grade：Semiautomatic
  • Power Supply：AC110,220V, 50,60Hz

Base Info

  • Model NO.：WG-BD-3000
  • Power Consumption：Min.20W-Max.380W
  • Stroke：30mm
  • Working Pressure：3ton
  • Crimp Width：0.1~4mm2
  • Transport Package：Wooden Case
  • Specification：530*400*830mm
  • Trademark：Wingud
  • Origin：China
  • Production Capacity：120,Month

Description

WG-BD3000 Semi-automatic direct sending stripping crimping machinePower supplysingle-phase 200VDimensionsL500mm*W350mm*H730mmAir pressure0.3~0.4mpa (Please use dry and clean air)Weight80KGWire rangeAWG16#----AWG36# (Different according to wire)Suitable sireAV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, fiber wire, etc.Stripping length1.0~10.0mmposition error0.05~0.1mmStripping error0.05~0.1mmWorking pressure3TonPressing terminalOpen continuous terminalStroke 30mmProductivity 3000-3500PCS/h
