Well Pump Motor Stator Coil and Wedge Winding Insertion Machine
Ningbo Nide Mechanical Equipment Co., Ltd.- Stator Diameter：300~600mm
- Power Supply：380V 50,60Hz
- Stator ID：50~150mm
- Stator Od：Max 300mm
- Weight：1200kg
- Automatiion Type：Semi-Auto
Base Info
- Model NO.：QWB1-600,150

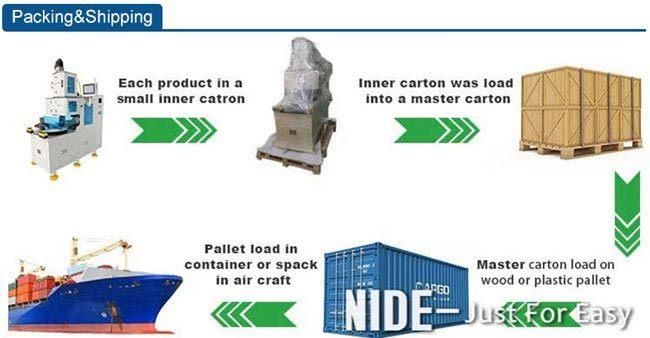

- Transport Package：Ply-Wooden Case
- Specification：customized
- Trademark：NIDE
- Origin：China
- HS Code：8479819000
- Production Capacity：100PCS,Year
Description
Application
It is applied to deep water pump motor and other various type of overlength motor stator.
Information needed for stator winding insertion machine inquiry:
It wil l be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Winding drawing
4. Winding distribution drawing
5. Wedge drawing
6. Other technical requirement.
If possible, it will better if customer could send us samples.
Competitive advantages
Variety of application, easy operation.
We have Overseas Service Center.
Machine is controlled by PLC.All the parameter can be set in the touch screen.
It is suitable forstators withdifferent modelnumber and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

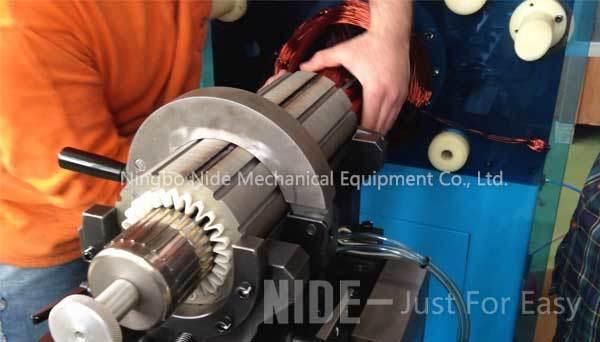

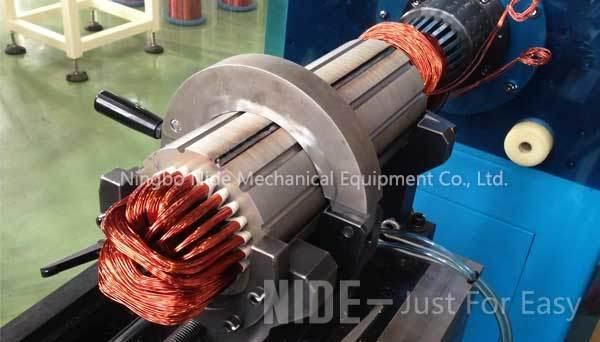

The Deep Water Pump Stator Coil Insereting :
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .
3. Engineers available to service overseas
Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
