PE/Foam-PE/PP/PU/PVC Insulation Wire Cable Extruding Machine
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, UL, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Usage：Use for Conductor Single-Layer Insulation Extruder
Base Info
- Model NO.：XJ25+20,30+25,40+30,50+35
- Wire Size：AWG38-24
- Highest Output：20kg-50kg,H
- Highest Wire Speed：350-600m,Min
- Capstan Power：3HP
- Length of U Water Tank：9m
- Precision：High Precision
- Demoulding：Automatic
- Heating System：Electric
- Function：High Temperature Resistance
- Automatic Grade：Automatic
- Customized：Customized
- Transport Package：PE Film + Wooden Pallet
- Specification：Striping insulation
- Trademark：NEWTOPP
- Origin：Dongguan City, Guangdong Province, China
- HS Code：8479400000
- Production Capacity：6 Sets,Month
Description
Basic Info.
Model NO. XJ25+20/30+25/40+30/50+35 Wire Size AWG38-24 Highest Output 20kg-50kg/H Highest Wire Speed 350-600m/Min Capstan Power 3HP Length of U Water Tank 9m Precision High Precision Demoulding Automatic Heating System Electric Function High Temperature Resistance Automatic Grade Automatic Customized Customized Transport Package PE Film + Wooden Pallet Specification Striping insulation Trademark NEWTOPP Origin Dongguan City, Guangdong Province, China HS Code 8479400000 Production Capacity 6 Sets/MonthProduct Description
PE/Foam-PE/PP/PU/PVC Insulation Wire Cable Extruding Machine Feature:Widely Usage: Use for conductor single-layer insulation/Chemical foam-skin double-layer/striping extrusion.
Large capacity: Optimzing screw design, srew durable, non cohesive glue, non take off chrome, color change quickly, high wire speed, high output.
High quality: Extrusion concentricity: over 93% OD tolerance:+/-0.005mm, capacitance value:+/-0.5PF
Temperature control precise: Adopt SCR power control machine with imported high quality temperature control table, the machine temperature controlled with+/-1°C.
Easy control: Intelligent control, capacitance and wire diameter auto-feedback and adjustment, the first company in China which can do that. Hommization machine design combined with NewTopp specialized touch screen. Make machine operation easier and convenient.
Save place: Change traditional accumulator, capstan, take-up, meter-counter, Sparker and other auxiliary equuipment into overall structure, layout compact, overall length will be reduce more than 5m.

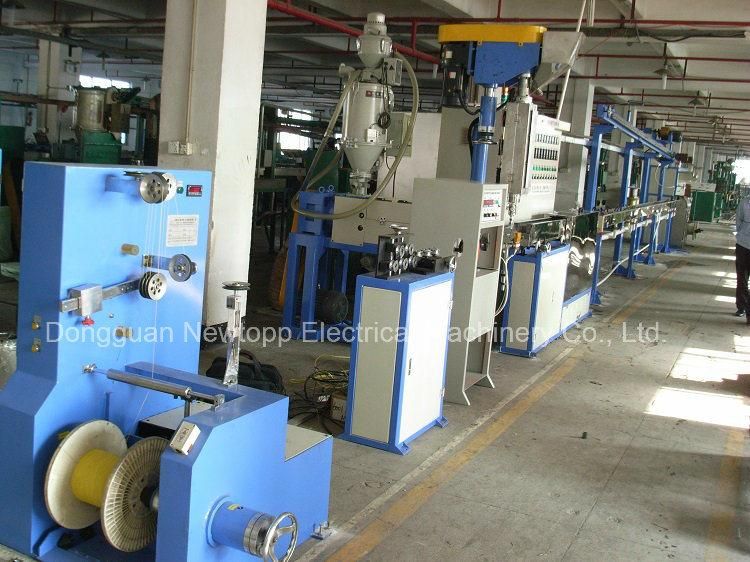

Products Show As below:
