• Model NO.：KTR-1200D
• Specification：7050*1680*1530
• Trademark：KT
• Origin：Shenzhen China
• Production Capacity：2000set,Year

Basic Info.

Model NO. KTR-1200D Specification 7050*1680*1530 Trademark KT Origin Shenzhen China Production Capacity 2000set/Year

Product Description



Model	KT-1200D
Machine parameter
Dimension(L × W × H)	7050*1680*1530
Color	Computer grey
Weight	Approx 3360 kg
Number of heating zone	Top 12/Bottom 12
Length of heating zone	4675mm
Number of cooling zone	Top 3/Bottom 3
Rectifying plate structure	Small circulation
Exhaust volume requiement	12m³/min*2(Exhausts)
Control system
Power supply requiement	3 phase ,380v 50/60HZ(Option:3 phase ,220v 50/60HZ
Total power	99KW
Startup power	44KW
Normal power consumption	12KW
Warming Time	Approx:20min
Temperature control range	Room Temperature -300ºC
Temperature control method	PID close loop control + SSR driving
Temperature control precision	±1ºC
Temperature deviation on PCB	±1.5ºC(by RM board test standard)
Data storage	Process data and status storage
Abnormal alarm	Abnormal temperature(extra-high/extra low temperature after constant temperature)
Board dropped alarm	Singal light(yellow-warning;green normal;red -Abnormal

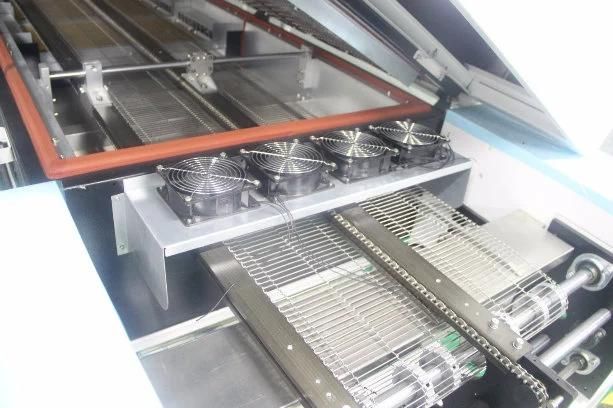

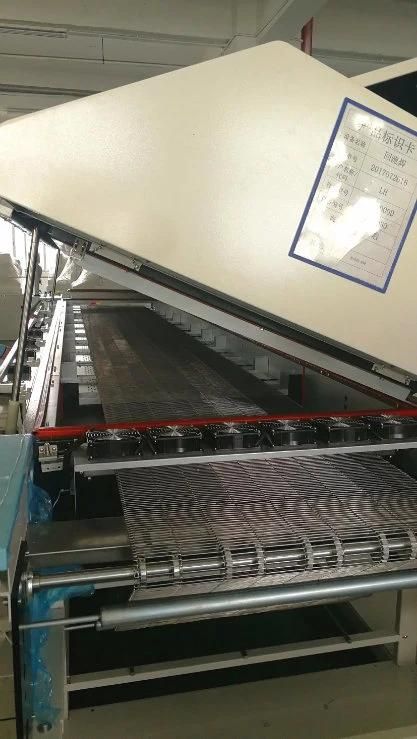

Conveyor system
Rails structure	Overall sectional type
Chain structure	Double buckle for preventing board jammed
Max width of PCB	400mm(option:460mm) dual-rail 300mm*2
Range of rail width	50-400mm(option:50-460mm) dual-rail 300mm*2
Component height	Top 30/Bottom 30mm
Conveyor  direction	L→R(option:R→L)
Conveyor  rail fixed type	Front rail fixed(option: Rear rail fixed)
PCB conveyor direction	Air-reflow=chain+mesh(N2-reflow=chain option:mesh)
Conveyor height	900±20mm
Conveyor speed	300-2000mm/min
Auto-lubrication	Multi-lubricating mode can be chosen
Cooling system
Cooling method	Firced air    Water chiller
