• Model NO.：YH-8070
• Tail Stripping：up to 260mm
• Cable Types：PVC Cables, Sheathed Wires, etc.
• Stripping Size：10-70 mm2
• Cutting Length：0.1-99999.9mm
• Cutting Tolerance：Within 0.002*L(L=Cutting Length)
• Max Diameter：25
• Capacity：1800 PCS,H
• Coiling Machine Model：Yh-Sxj2
• Rolling Diameter：200-680mm
• Rolling Speed：1.5m,S
• Drive Mode：Servo Motor, Adaptive with Speed, Digital Adjustme
• Transport Package：Double-Layer Export Carton
• Specification：530*530*400mm
• Trademark：yuanhan
• Origin：China
• HS Code：8479819000
• Production Capacity：L=100mm, 3000-7000PCS,H

Basic Info.

Model NO. YH-8070 Tail Stripping up to 260mm Cable Types PVC Cables, Sheathed Wires, etc. Stripping Size 10-70 mm2 Cutting Length 0.1-99999.9mm Cutting Tolerance Within 0.002*L(L=Cutting Length) Max Diameter 25 Capacity 1800 PCS/H Coiling Machine Model Yh-Sxj2 Rolling Diameter 200-680mm Rolling Speed 1.5m/S Drive Mode Servo Motor, Adaptive with Speed, Digital Adjustme Transport Package Double-Layer Export Carton Specification 530*530*400mm Trademark yuanhan Origin China HS Code 8479819000 Production Capacity L=100mm, 3000-7000PCS/H

Product Description

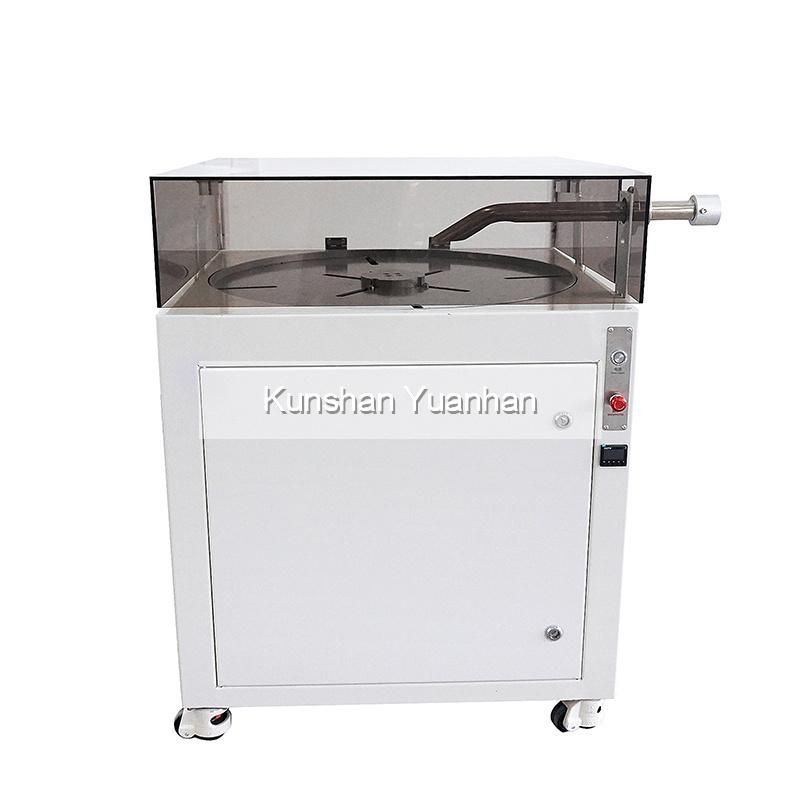

Automatic wire coiling machine Wire Coil Winding Machine

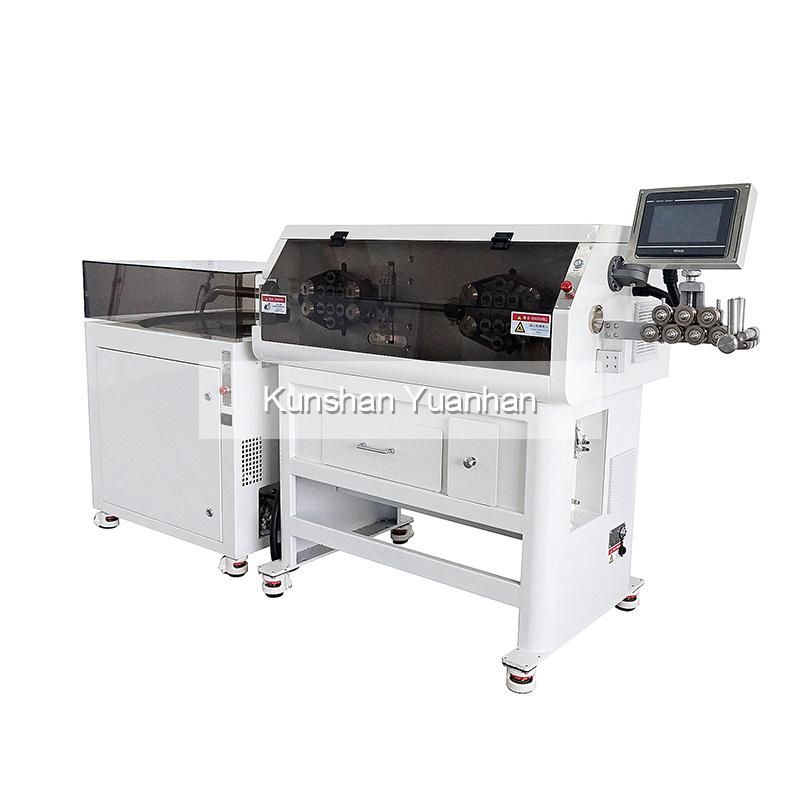

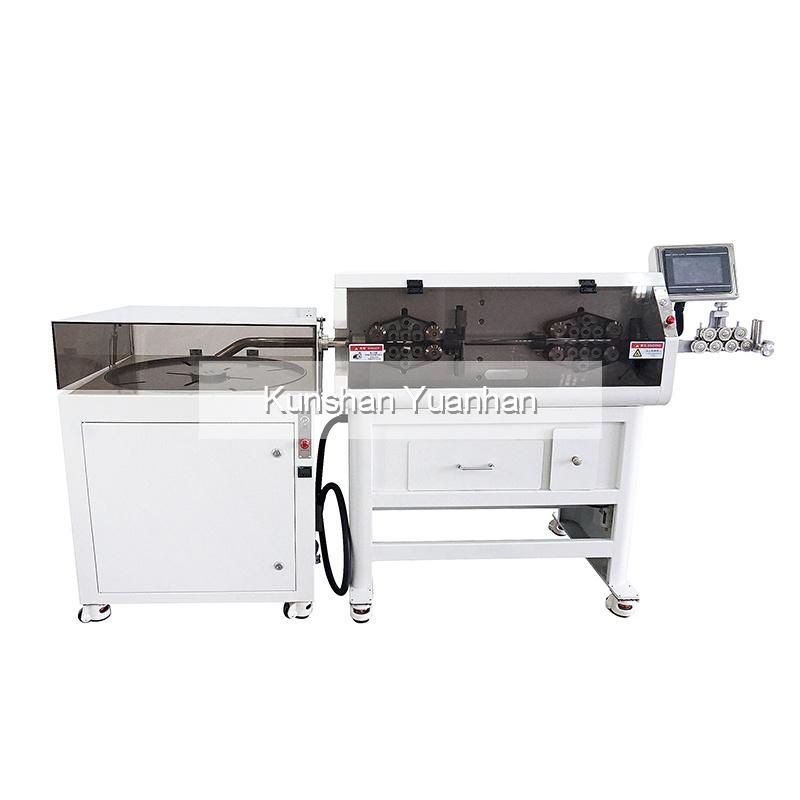

YH-SXJ2 This automatic wire coiling machine can be used with our fully automatic wire cutting and stripping machine. It is suitable for winding long wires into big coils without additional collecting devices.

Model: YH-SXJ2
Brand: Yuanhan

Specification

• This wire coiling machine can be used with our fully automatic wire cutting and stripping machine.

• It is suitable for winding long wires into big coils without additional collecting devices.


Model	YH-SXJ2
Function	wire and cable picking up and coil winding
Applicable wire	cables, PVC wires, etc.
Rolling diameter	200-680mm
Rolling speed	1.5M/s
Drive mode	Servo motor, adaptive with speed, digital adjustment of speed ratio.
Safety door	standard, pneumatic, automatic
Remarks	We provide custom service for special cables, and cable samples are required for testing.

Product Shows

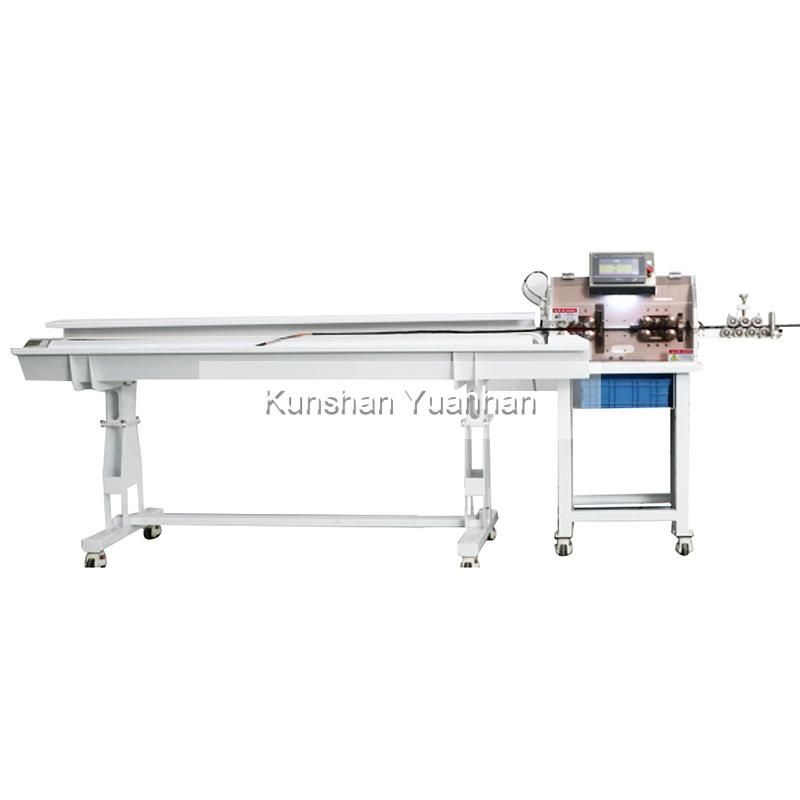

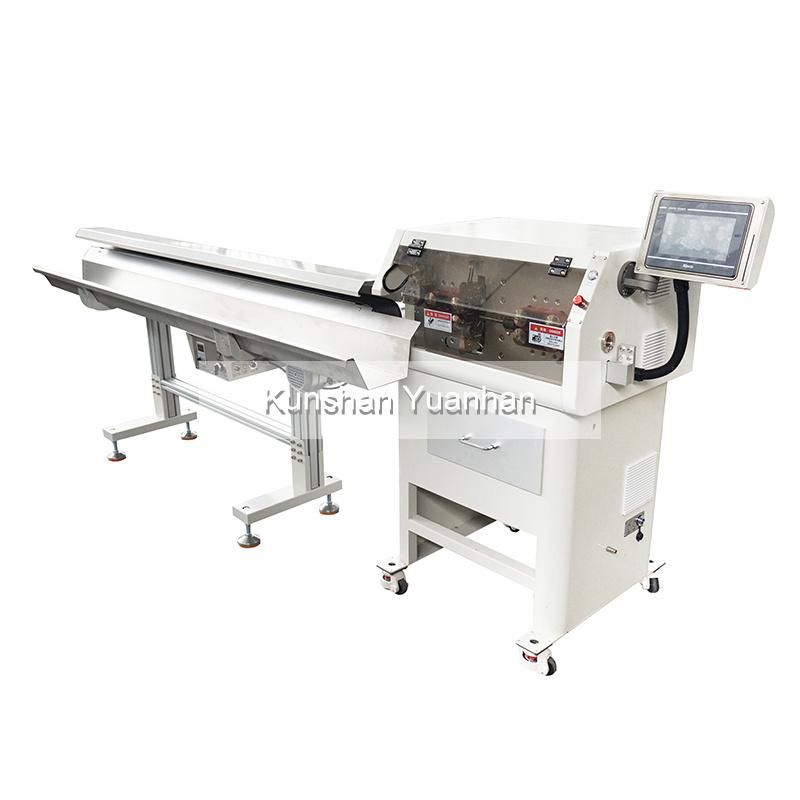

 30 square sheathed wire cutting and stripping both inside and outside. All-in-one machine, with manipulator + 2 meters of wire take-up frame



Features:

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

Sample: cut and strip wire automatically


Any questions, please feel free to contact us ! Thank you !
