Semi Auto Wire Harness Stripping and Waterproof Bolt Loading Machine
Kunshan Yuanhan Electronic Equipment Co., Ltd.- After-sales Service：All Life
- Driven Type：Electric
- Condition：New
- Certification：RoHS, ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
Base Info
- Model NO.：YH-3000FS
- Model：Yh-3000fs
- Capacity：About 1,200 Pieces,Hour
- Applicable Wire Diameter：0.2mm2;-2.5mm2;
- Cutting Precision：+-0.02mm
- Stripping Length：0-10mm
- Crimping Force：3t
- Crimping Stroke：30mm
- Single Cycle：3 Seconds
- Rubber Seal Size：Diameter Less Than10*10mm
- Crimping Mode：Servo Crimping
- Power Supply：AC 200V 50Hz
- Compressed Air：0.5-0.7MPa
- Dimensions：1,100mm*920mm*1,600mm
- Weight：350kg
- Transport Package：Wooden Case Package
- Specification：180x175x180cm
- Trademark：yuanhan
- Origin：China
- HS Code：8479819000
- Production Capacity：50PCS,Month
Description
350KG

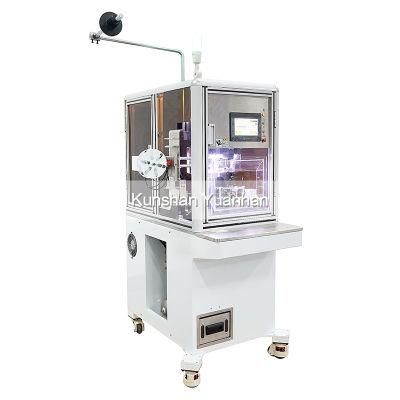

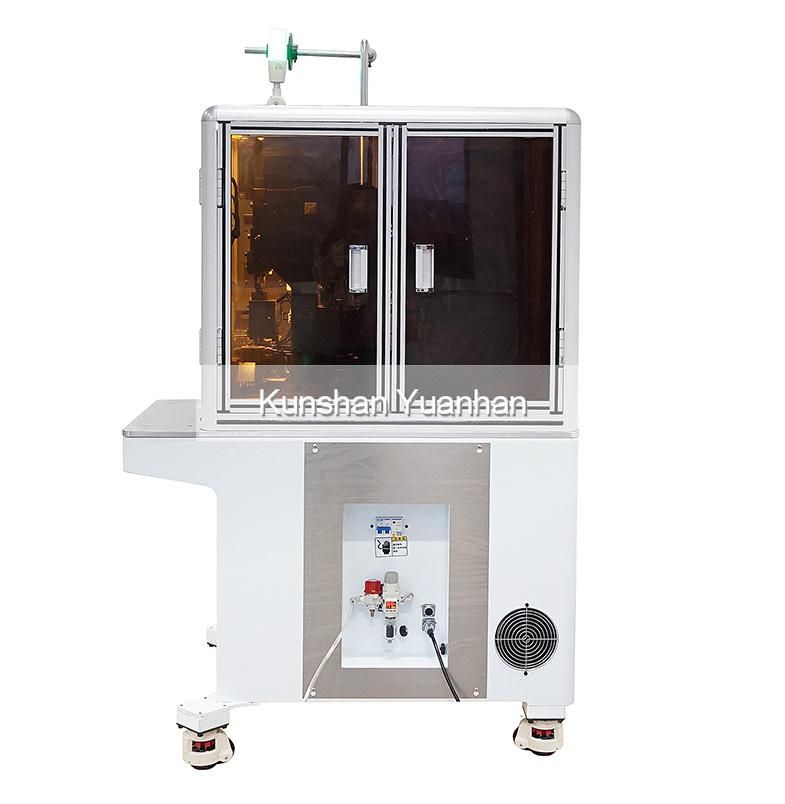

Machine Shows
We have more models for your choices
Company Shows
For more details and inquiry please contact Ms. Alice, thank you!
Machine Shows
We have more models for your choices
Company Shows
For more details and inquiry please contact Ms. Alice, thank you!
