• Model NO.：T1200LED, LED600, TN380C
• Certification：ISO, CE
• Warranty：24 Months
• Automatic Grade：Automatic
• Type：High-speed Chip Mounter
• Weight：350kg
• Component Available：0603and Above SMD Component and LED
• Typical Mounting Speed：6000-6500 Cph
• Mount Head：2 PCS
• Dimension：2600*680*1500mm
• Max Circuit Board Size：1200*350mm
• Transport Package：Wooden Package ,1 Set ,PC ,About 400kg
• Specification：CE
• Trademark：Termway
• Origin：Beijing, China
• HS Code：8479896200
• Production Capacity：50set,Year

Basic Info.

Model NO. T1200LED, LED600, TN380C Certification ISO, CE Warranty 24 Months Automatic Grade Automatic Type High-speed Chip Mounter Weight 350kg Component Available 0603and Above SMD Component and LED Typical Mounting Speed 6000-6500 Cph Mount Head 2 PCS Dimension 2600*680*1500mm Max Circuit Board Size 1200*350mm Transport Package Wooden Package ,1 Set /PC ,About 400kg Specification CE Trademark Termway Origin Beijing, China HS Code 8479896200 Production Capacity 50set/Year

Product Description

Automatic LED Assemble Production Line (T1200LED, LED600, TN380C) for LED Strip, LED Tube, LED Street Light

T1200LED is the most economy with high precision semi-auto stencil printer, especially for LED flexible strip production. PCB is fixed on the flexible work table, which is suit for single board and double board. PCB position adjust, work table removing, the rise and fall of scraper are controlled by frequency conversion motor. Can make sure the moving accuracy and high repeated accuracy. It's the best choice for LED production.




2. LED Automatic Chip Mounter for LED ASSEMBLY

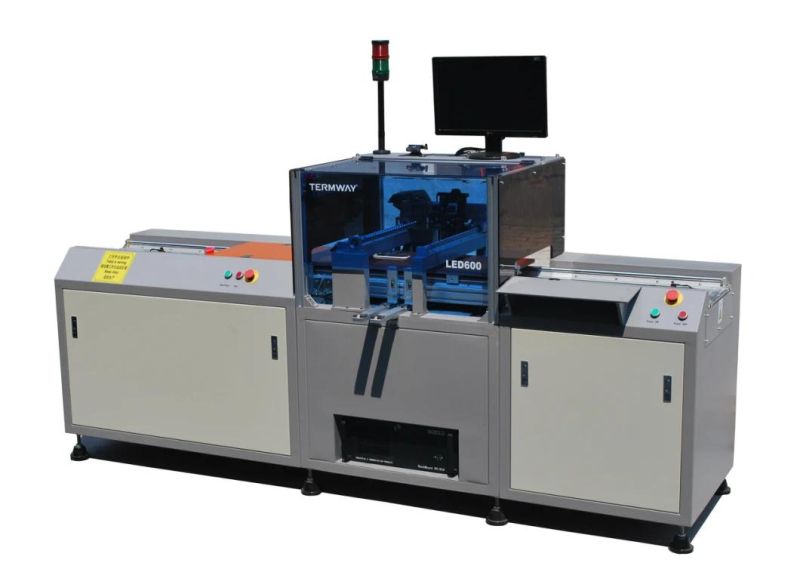

Model: LED600
The selling point:
1. The first special LED pick and place machine used servo control system in SMT industry.
2. The first special LED pick and place machine used high precision ball screw transmission.
3. The unique LED pick and place machine that can precision mount less than 20mm SOP, Columnar diode, transistor, SOT and 0402 above all component (not include thickness more than 5mm Aluminum electrolytic capacitor ).
4. The unique LED pick and place machine that configured self-patent intelligent electronic feeder.
5. The unique LED pick and place machine that can realize program and mount PCB puzzle.
6. The unique LED pick and place machine that can vision program.
7. The unique LED pick and place machine that can offline program.
8. Powerful data input function can meet the need of input any format of PCB.
9. The unique LED pick and place machine that can mount 0402 stably and precision.
10. With safety cover, can effectively protect the operator and prevent the dust.
11. Suit for above 5 types nozzle and software can The software automatically prompt replacement nozzle type.
12. Accuracy speed is 10000CPH.

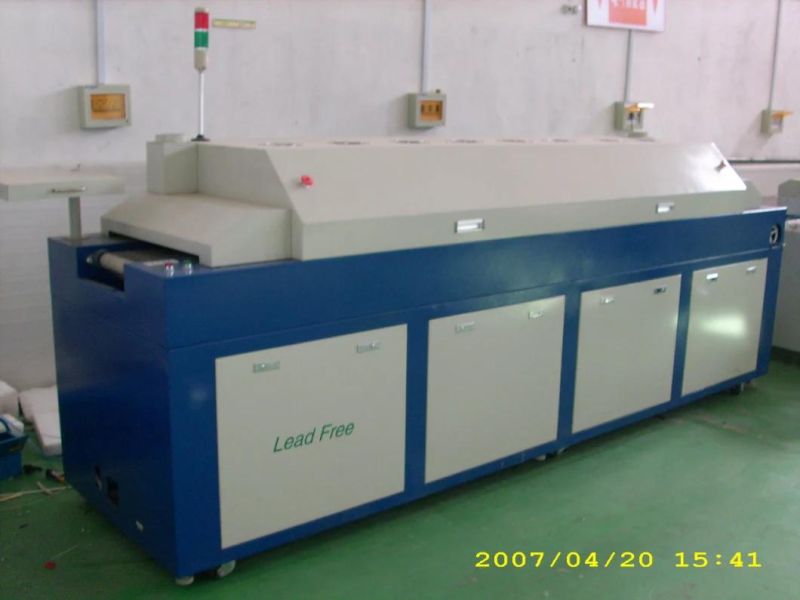

3.8 Zones Hot Air Reflow Oven TN380C:

[Introduction]:
Heating system:
TN380C adopts high effective and energy-saving nickel-chromium heating tube. Advanced technology and Long life. And TORCH self-developed hot-air circling system features warm up quickly, which can make PCB component be heated evenly.
Protection system:
TN380C uses SSR solid relay (450V) that has large power and pressure prevention to non-contact output, safe and reliable. It can monitor the change of temperature and heat number in furnace chamber with the functions fuzzy control and data collection. Then control the heating component with the least pulse and response quickly. TO keeps the Temperature control accuracy, but the equipment can not be damage for the high current and high voltage. And each room fits a safety pipe which is high temperature and high pressure resistant function so that the whole system can run safely and calmly.
Temperature control system:
Accuracy control by IPC and PID intelligent arithmetic. According to the PID intelligent calculation, heat output can be controlled accurately and response to the change of outside to balance the temperature. The whole system has a modularized design. It is convenient to maintenance and disassembles
Outer shell system:
Outer shell and furnace body of TN380C can be opened wholly and automatically. It is convenient to clean and maintain it.
