Automatic 3 Needles Coil Winding Machine for Inner Stator
Shanghai Wind Automation Equipment Co., Ltd.- Voltage：220V
- Warranty：12 Months
- Working Station：1
- Color：Customized
- Weight：750kg
- Dimension：1600X1100X1400mm
Base Info
- Model NO.：WIND-3A-TSM
- After-Sales Service：Engineers Avaiable to Service Overseas
- Automatic：Automatic
- Transport Package：Wooden Case
- Specification：Middle Size
- Trademark：Wind Automation
- Origin：China
- HS Code：8479811000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. WIND-3A-TSM After-Sales Service Engineers Avaiable to Service Overseas Automatic Automatic Transport Package Wooden Case Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/YearProduct Description

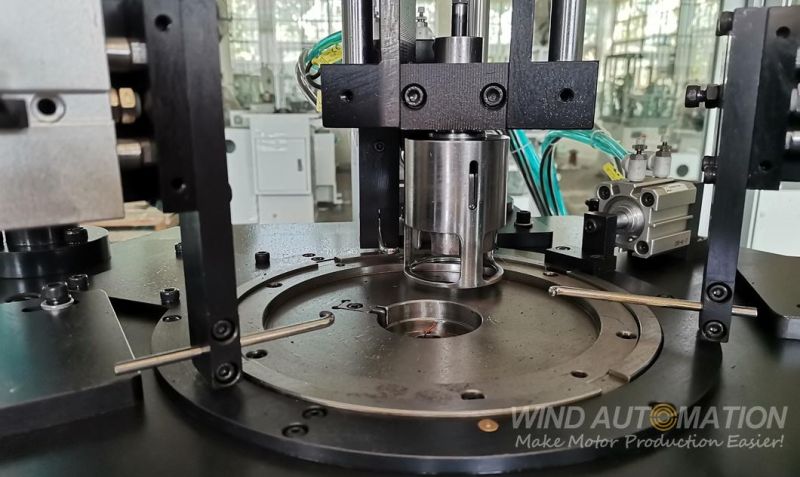

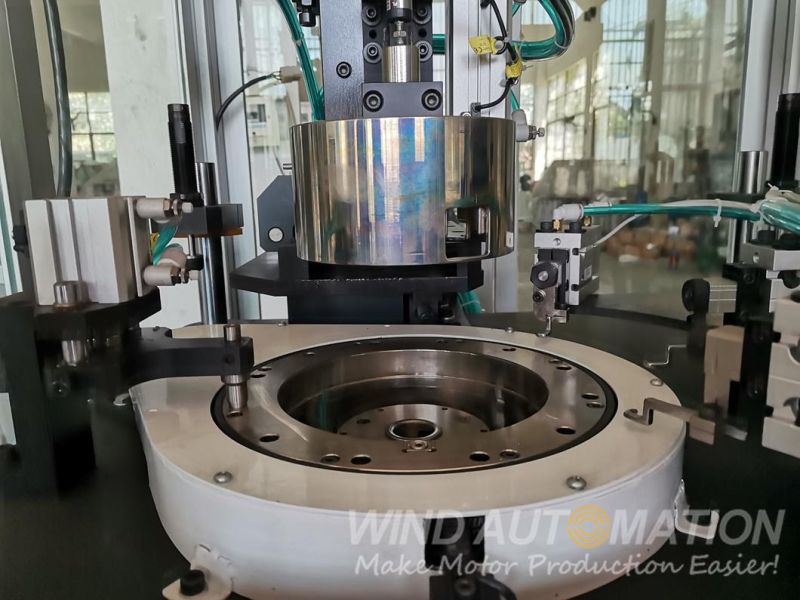

Automatic 3 Needles Coil Winding Machine For Inner Stator
This needle winding machine is special designed for BLDC motor to do coil winding. Wind Automation also provides customer with customized service, if stator beyond the specification listed blow.
(1)Application
suitable for various types stators with narrow slot width but high slot filling rate.
(2)Features
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
Synchronously wind 3 slots
Winding track in rectangle shape
Precision performance of needle winding
Winding parameter adjustable according to different stators
(3)Specification
| Wire diameter | 0.08~1.2mm |
| Stator ID | 19~65mm |
| Stack length | 7~110mm |
| Turn No. | 0~9999 |
| Movement | Stepping/Auto |
| Slot number | 6,9,12,18(customized) |
| Air source | 5~7kg/cm3 |
| Power | 2KW |
| Power supply | AC 220 V, 50/60HZ |
| Weight | 750KG |
| Dimension | 1600x1100x1400mm |
(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and four spindle synchronous control unit
Lubrication system

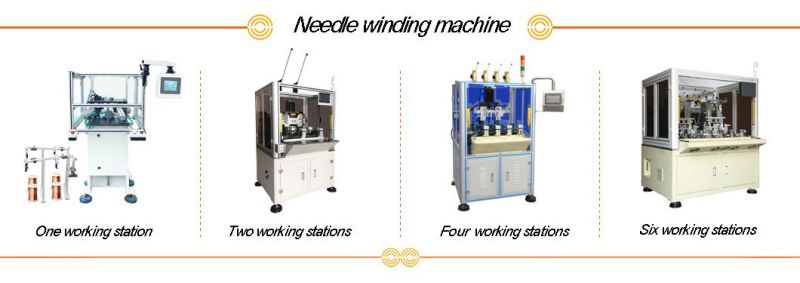

(5) Machine working station
