• Driven Type：Electric
• Tank Volume：10L,25L,40L
• Mixing Method：Dynamic , Static
• Moving Speed：250mm,S
• Accuracy：1%
• Support Ratio：1:1 to 10:1
• Input Air Pressure：0.5-0.7MPa
• Function：Degassing, Cleaning, Heating Resin
• Touch Screen：Yes
• Gluing Speed：1-12ml,S
• Gluing Process：DOT, Circle. Line

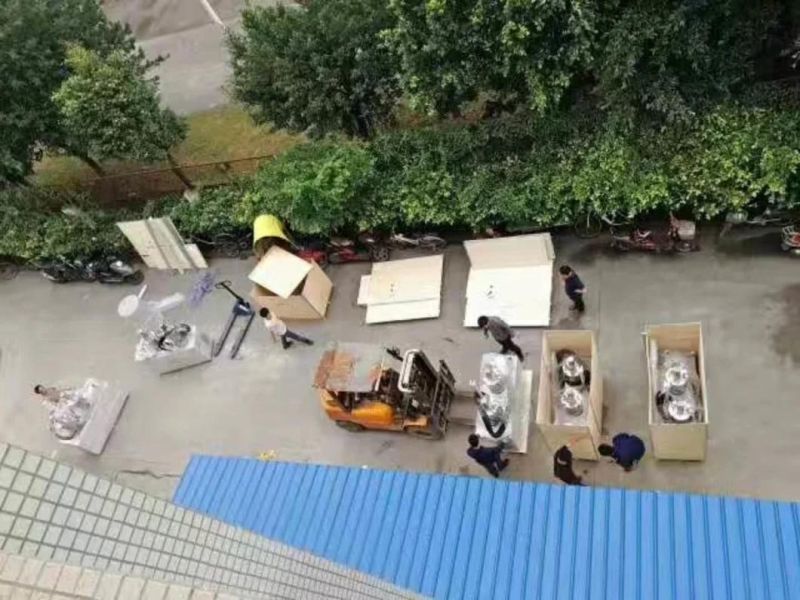

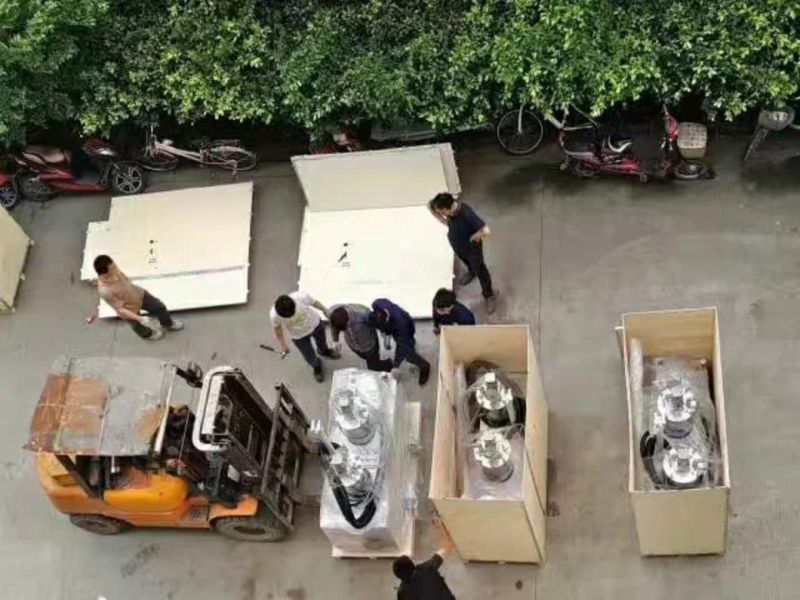

• Transport Package：Wooden Packing
• Trademark：D&H
• Origin：China
• HS Code：8424899990
• Production Capacity：50PCS Per Month

Model No:

Mixing Ratio

100:100-10:100(1:1-1:10) Adjustable

Metering precision

±1%

Outflow speed

1g/sec-15g/sec

Mixing precision

±1%

Mixing mode

Dynamic mixing /Static mixing

Glue Viscosity

Lower than 20000 CPS(mPa·s)

Control mode

PLC + Touch Screen

Control system

Independent R&D

Measuring mode

Stepping motor/High-precision, wear-resistant,

long-life Gear pump

Working voltage

AC 220V 50Hz/60Hz

Power requirement

3.55KW

Air pressure requirement

4.5-8KG

Machine Dimension

1500(L)*1200(W)*1500(H)mm

Weight

approx 260 KG

Work environment

Humidity: 20%~98%RH; Temperature: 0~+40°c

Suitable Material: For waterproof, adhesive, fixed two-component adhesive.

Such as: Crystal or less additive glue --Silicone, epoxy, polyurethane(PU), etc.

Applications:LED products ,Crafts,Electronic components

Such as:Wall washer light, LED bar, LED strip, Ads module, Sensor, Photovoltaic module, Photovol­taic inverter .etc

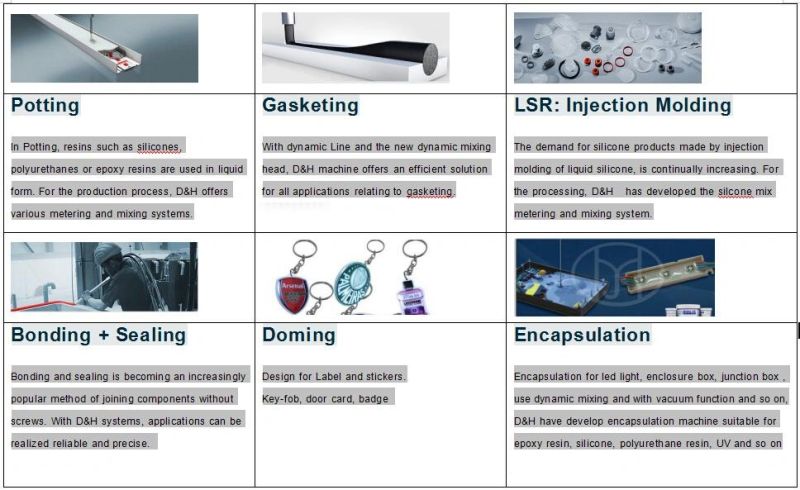

IV:Application
