• Model NO.：XJ500
• Tension Range：1-20n
• Pay off Speed：0-120m,Min
• Back Twist Rate：0-50%
• Back Twist Driving Motor：4kw
• Pay off Motor：0.75kw
• Load&Unload System Driving Motor：0.75kw
• Model：Well Performance LAN Cable Wire Making Machine
• Precision：High Precision
• Demoulding：Automatic
• Heating System：Electric
• Function：High Temperature Resistance
• Mould Life：300, 000-1, 000, 000 shots
• Automatic Grade：Automatic
• Customized：Customized
• Transport Package：PE Shrink or Wooden Box Package
• Specification：500mm
• Trademark：Newtopp
• Origin：China Mainland
• Production Capacity：20 Set,Month

Basic Info.

Model NO. XJ500 Tension Range 1-20n Pay off Speed 0-120m/Min Back Twist Rate 0-50% Back Twist Driving Motor 4kw Pay off Motor 0.75kw Load&Unload System Driving Motor 0.75kw Model Well Performance LAN Cable Wire Making Machine Precision High Precision Demoulding Automatic Heating System Electric Function High Temperature Resistance Mould Life 300, 000-1, 000, 000 shots Automatic Grade Automatic Customized Customized Transport Package PE Shrink or Wooden Box Package Specification 500mm Trademark Newtopp Origin China Mainland Production Capacity 20 Set/Month

Product Description

Products name: Well performance LAN Cable Wire Making Machine

Usage: Use for cat-5, cat-5E, cat-6 and so on lan (data) cable back-twist and pair twisting.

Feature: Back-twist before pair twisting and reduce the wire damage during twisting progress. Back-twsit and pair twisting machine worked together

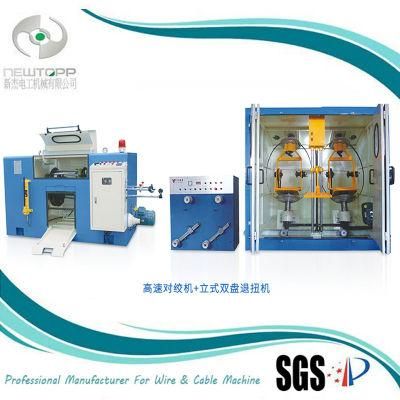

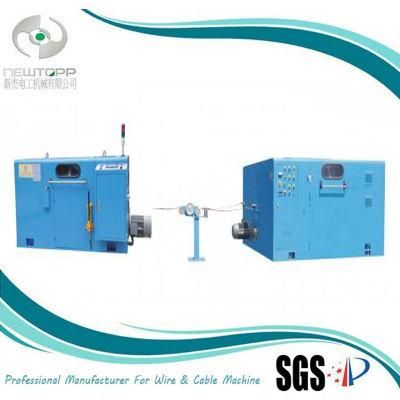

Main part: XJ500 active back-tiwst pay off machine and 500 pair twsiting machine.


Model	XJ-500 Active Back-twist  Pay-off Machine
Max rotate speed	1000 RPM
Wire diameter	Φ0.4-1.5MM
Pay-off bobbin	Φ500MM
Tension range	1-20N
Pay-off speed	0-120M/MIN
Backtwist rate	0-50%
Driving motor	4KW
Pay-off motor	0.75KW
Lifting motor	0.75KW



Model	XJ-500 Pair Twisting Machine
Wire diameter	MaxΦ3.1mm
Pitch range	6-54.7mm
Rotate speed	Max 2500RPM
Line speed	Max 120M/min
Pay-off tension	Tension ontrolled by slider rod feedback
Take-up tension	Magnetic powder clutch, bobbin size auto-tracking.
Take-up lifting	Auto-lifting hydraulic pressure
Bobbin size	Φ500mm

FQA:

Q: Are you the factory or trade company?

A: We are factory which etablish in year 2008 and 8000 square meter area.

Q: what certificate do you have?

A: we have the ISO9001 and ISO14001, the SGS, CE and many patents certificate.

Q: what is your company strong point?

A: Before year 2008, our business line is  Automatic control products, base on our former background, our cable machines will be more intelligence.
