• Model NO.：KE 2050M
• Type：High-speed Chip Mounter
• Part No.：Ke 2050m
• Lead Time：1-2 Weeks After Payment
• Shipping Ways：DHL, FedEx, TNT, UPS, EMS, by Sea, by Air
• Transport Package：Normal Packing
• Trademark：JUKI
• Origin：Japan
• Production Capacity：50 PCS , Year

Basic Info.

Model NO. KE 2050M Type High-speed Chip Mounter Part No. Ke 2050m Lead Time 1-2 Weeks After Payment Shipping Ways DHL, FedEx, TNT, UPS, EMS, by Sea, by Air Transport Package Normal Packing Trademark JUKI Origin Japan Production Capacity 50 PCS / Year

Product Description

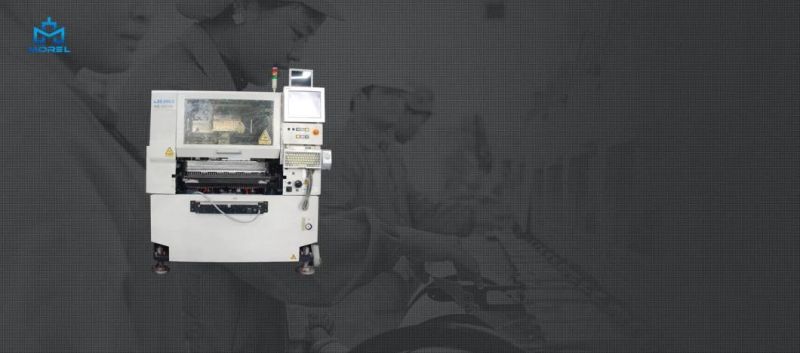

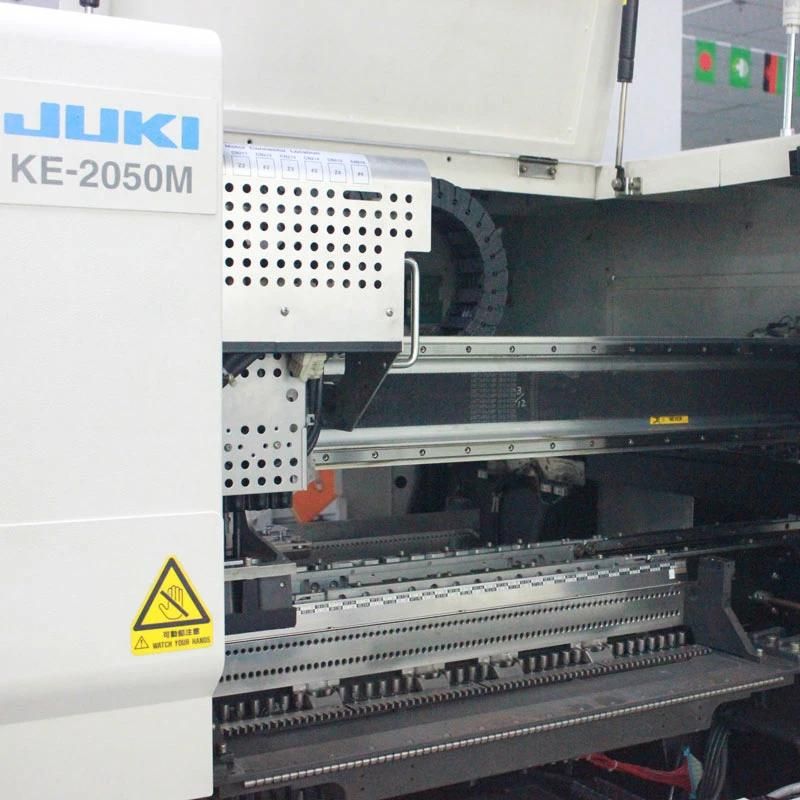

 SMT pick and place machine JUKI Chip Mounter KE 2050M












Model	KE 2050M
Board size	(330×250mm)
Component height	6MM
Laser recognition	0603(0201) ~20×20mm or 26.5×11mm
Placement speed	13200CPH
Feeder inputs	Max. 80 on 8mmT/F(7)
Power supply	200 to 415 VAC, 3-phase
Apparent power	3kVA
Operating air pressure	0.49±0.05Mpa
Air consumption	403L/min (Opt.:Vacuum Pump 50L/min)
Component package	Tape (8, 12, 16, 24, 32, 32(adhesive), 44, 56, 72mm) / Stick / Bulk / Tray
Weight	1,400kg
Air consumption (in the standard condition)	230L/min.

Feature :

• The best system for high-speed placement of small components. As part of a "modular concept", the KE-2050 can be the base of a flexible placement system line designed specifically to meet the required production volume.
• 13,200CPH; chip (effective tact)

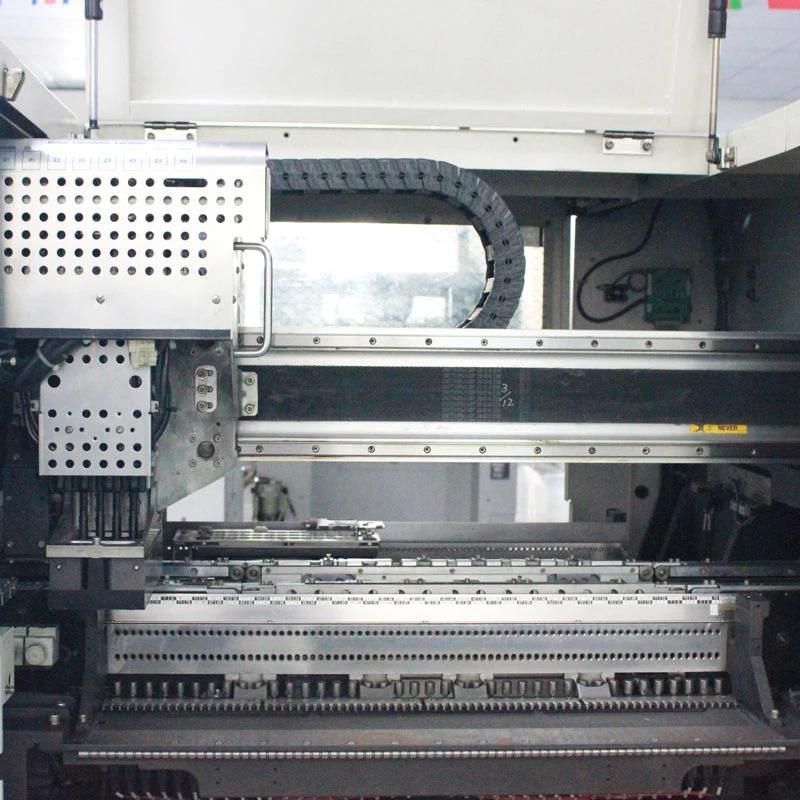

• 1 multi nozzle laser head (4 nozzles)
• from 0603(0201) to 26.5 × 11mm or 20mm square component 0402(01005) option factory installed.
